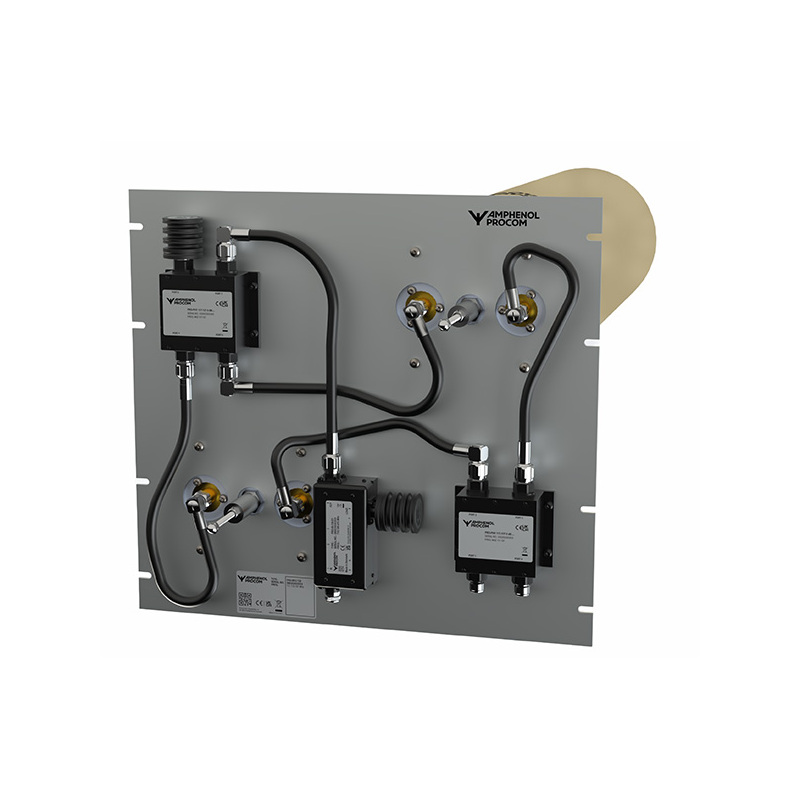

PRO-BCU 130

Balanced Combiner Solution

Find Out More
Data Sheet
CE Certification

Other Files

PRO-BCU 130
Electrical
Model PRO-BCU 130
Frequency 112 – 137 MHz
Max. Input Power 150 W
Spacing Tx-Tx > 75 kHz
Impedance 50 Ω
Isolation Tx-Tx > 75 dB
VSWR < 1.5:1
Environmental
Frequency Stability Approx. 0.8 ppm / °C
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 19″ x 10 HU x 765
(482.6 x 443.7 x 765 mm) /
19 x 17.47 x 30.12 in.
Weight Approx. 14.8 kg / 32.63 lb.
  • PRO-BCU 130 for upgrading site with an extra channel.
  • Add an extra channel directly on-site without any re-tuning
  • of the installed system.
  • Balanced structure with two identical filters and two 3 dB
  • hubrid couplers.
  • Suitable for 19” rack mounting.
  • Expandable in the field.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Balanced Combiner Solution 210002251
