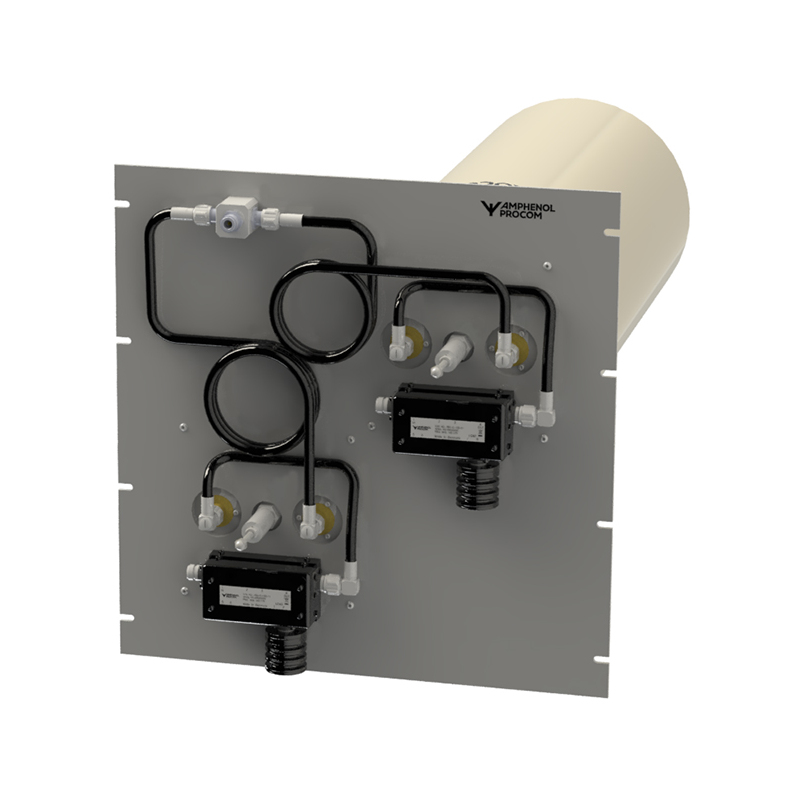

PRO-CAV130-2

2-Channel Cavity Combiner

Find Out More
Data Sheet
CE Certification

Other Files

PRO-CAV130-2
Electrical
Model PRO-CAV130-2
Frequency 116 – 146 MHz
Max. Input Power 150 W
Spacing Tx-Tx > 75 kHz
Insertion Loss 2.2 dB @ Δτx = 150 kHz
Impedance 50 Ω
Isolation Tx-Tx > 75 dB
VSWR < 1.5:1
No. of channels 2
Environmental
Frequency Stability Approx. 0.8 ppm / °C
Operating temperature range -30 °C to +60 °C Reduced specifications around the limit temperatures
Storage temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Procom
Dimensions 19″ x 11 HU x 765 mm
(482.6 x 488.15 x 765 mm) /
19 x 19.22 x 30.12 in.
Weight Approx. 16.55 kg / 36.49 lb.
  • The PRO-CAV series of cavity combiners has been designed to help identify the optimum solution for combining several transmitters into one antenna.
  • All cavity combiners are suitable for 19” rack mounting.
  • All cavities are 250 mm dia. Dual isolators fitted as standard.
  • A range of racks and cabinets are available.
  • Please specify the frequencies for Tx when ordering.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
2-Channel Cavity Combiner 210001459
