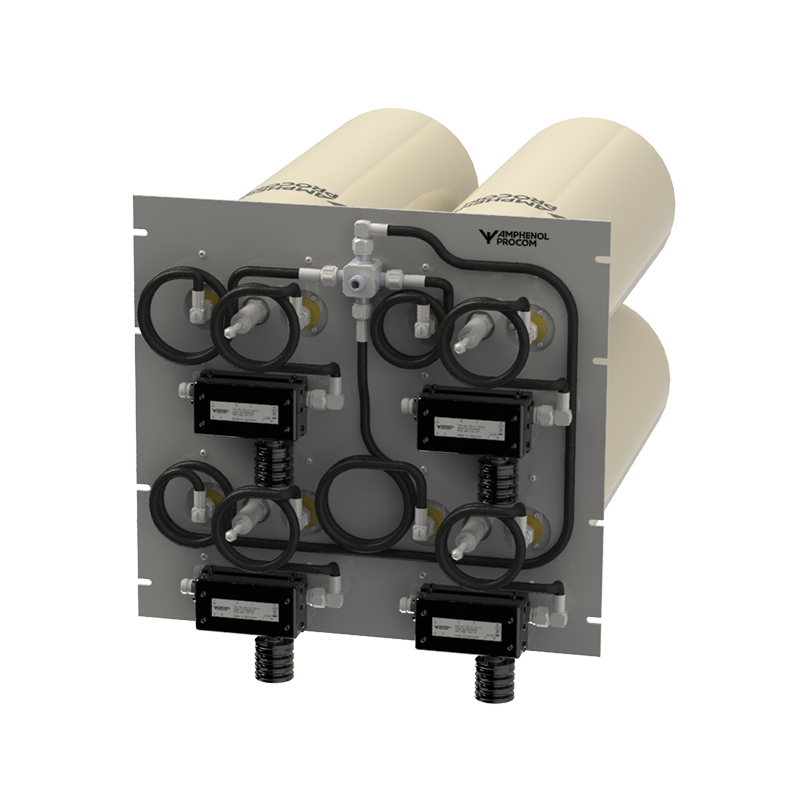

PRO-CAV130-4-200-SHT

4-Channel Cavity Combiner

Find Out More
Data Sheet
CE Certification

Other Files

PRO-CAV130-4-200-SHT
Electrical
Model PRO-CAV130-4-200-SHT
Frequency 118 – 137 MHz
Max. Input Power 150 W
Spacing Tx-Tx > 75 kHz
Insertion Loss Typ. 3.2 dB @ Δτx = 150 kHz
Typ. 2.5 dB @ Δτx = 250 kHz
Typ. 2.0 dB @ Δτx = 500 kHz
Impedance 50 Ω
Isolation Tx-Tx > 75 dB
VSWR < 1.5:1
No. of channels 4
Environmental
Frequency Stability Approx. 0.8 ppm / °C
Operating temperature range -30 °C to +60 °C Reduced specifications around the limit temperatures
Storage temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 19″ x 10 HU x 600 mm
(482.6 x 443.7 x 600 mm) /
19 x 17.47 x 23.62 in.
Weight Approx. 26 kg / 57.32 lb.
  • The PRO-CAV series of cavity combiners has been designed to help identify the optimum solution for combining several transmitters into one antenna.
  • All cavity combiners are suitable for 19” rack mounting.
  • All cavities are 200 mm dia. Dual isolators fitted as standard.
  • A range of racks and cabinets are available.
  • Please specify the frequencies for Tx when ordering.
