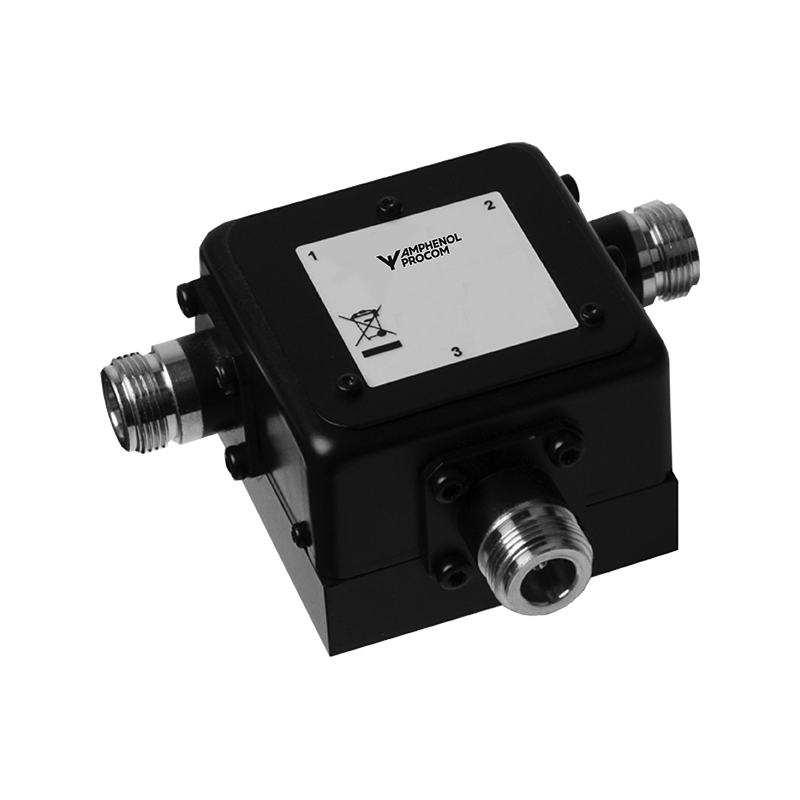

PRO-CI-…-S1

Medium power circulators

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-CI-...-S1

Quickly identify the correct ordering code.

PRO-CI-…-S1
Electrical
Model PRO-CI-…-S1
Max. Input Power 150 W
Insertion Loss < 0.5 dB
Impedance 50 Ω
Isolation >25 dB (Typ. >28 dB) @ 25 °C
VSWR < 1.5:1
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 57 x 58 x 41 mm / 2.24 x 2.28 x 1.61 in.
Weight Approx. 0.4 kg / 0.88 lb.
Mounting 4 mm
  • Used for separating, receiving and transmitting signals.
  • High frequency stability on temperature and power.
  • Single channel tuned
  • Factory tunable within the frequency range.
  • The circulators have black coating to prevent corrosion.

_x000d_MOUNTING DETAILS FOR PRO-CI-…-S1

Model Product No. Frequency Add To Quote

PRO-CI-130-S1

 Contact_51 112 – 137 MHz

PRO-CI-150-S1

 210001220 145 – 175 MHz

PRO-CI-350-S1

 210001566 340 – 380 MHz

PRO-CI-380-S1

 210001686 380 – 470 MHz
