PRO-COM150-2SI

Compact 2-channel VHF 150 MHz Tx/Rx Combiner

Find Out More
Data Sheet
CE Certification

Other Files

PRO-COM150-2SI
Electrical
Model PRO-COM150-2SI
Frequency L : 136 – 156 MHz
H : 152 – 175 MHz
Max. Input Power 35 W / 50 W (per channel)
Spacing Tx-Rx ≥ 4 MHz
Spacing Tx-Tx ≤ 1.5 MHz
Insertion Loss Tx Path ≤ 5.4 dB
Impedance 50 Ω
Ant-Tx Isolation > 40 dB @ 25 °C
Isolation Tx-Tx > 60 dB @ 25 °C
Isolation Tx – Rx > 80 dB for Tx – Tx spacing < 0.5 MHz
> 60 dB for Tx – Tx spacing > 0.5 MHz
Isolation Rx-Rx > 20 dB
VSWR < 1.5:1
LNA Noise Figure < 3.5 dB
Current Consumption 500 mA @ 12 V DC
Gain Rx 1 dB ±1 dB (factory set)
No. of channels 2
Environmental
Storage temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 19″ x 3 HU
(483 x 132.55 mm) /
19 x 5.22 in.
– see Mechanical Outline for depth of tray
Weight Approx. 6.3 kg / 13.9 lb.

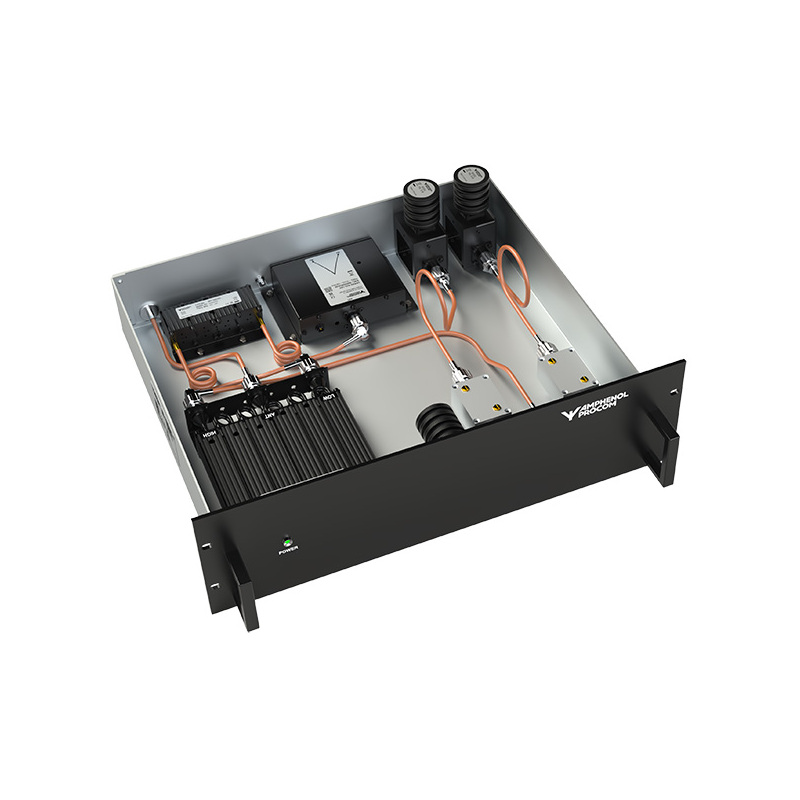

  • An integrated single tray combining solution housing a 2-channel Tx hybrid combiner, duplex filter, active Rx multicouplers and preselector.
  • Built-in power supply suitable for 12 V DC
  • Minimal rack space required – only 3 HU in a 19″ rack.
  • Compatible with digital 6.25 kHz channel spacing.
  • Single Tx isolators fitted as standard (With Dual Isolators, please ask for availability).
  • 2 Tx & 2 Rx ports as standard.
  • Please specify Tx/Rx frequencies when ordering.
  • Please Note: Power Supply AC to DC is not included, must be ordered separately, see Accessories.
  • As standard the combiner will come with black painted front plate. If requested, please ask for a front plate with alu-look.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Compact 2-channel VHF 150 MHz Tx/Rx Combiner PRO-COM150-2SI

Login required

You need to be logged in into your account to view downloadable documents.

Ordering Designations

Contact for system-specific product No.

Use the guide below to make the name of the PRO-COM150-2SI. Remember to buy the Power Adaptor separately if needed.

ModelDuplex Filter Freq. BandDuplex filter Bandwidth (BW) and Tx/Rx SpacingMax. Input Power
PRO-COM150-2SI Low : 136 – 156 MHz = L
High : 152 – 175 MHz = H		 1.5-4/6-1.5 *
1.5-6/8-1.5
1.5-8/10-1.5


*Max. Low BW: 1.5 MHz- Tx/Rx spacing: 4 to 6 MHz –
Max. High BW: 1.5 MHz = 1.5-4/6-1.5		 35 W per channel
50 W per channel
Naming Example
PRO-COM150-2SI H /1.5-4/6-1.5 /35W


Naming Example: PRO-COM150-2SI H/1.5-4/6-1.5/35W

Accessories
ModelProduct No.
Power Supply AC/DC 12V/1A EU/UK/US 240000060
Power Supply AC/DC 12V/1A EU/UK/US

Power Supply ACDC 12V1A EUUKUS

Mechanical Outline

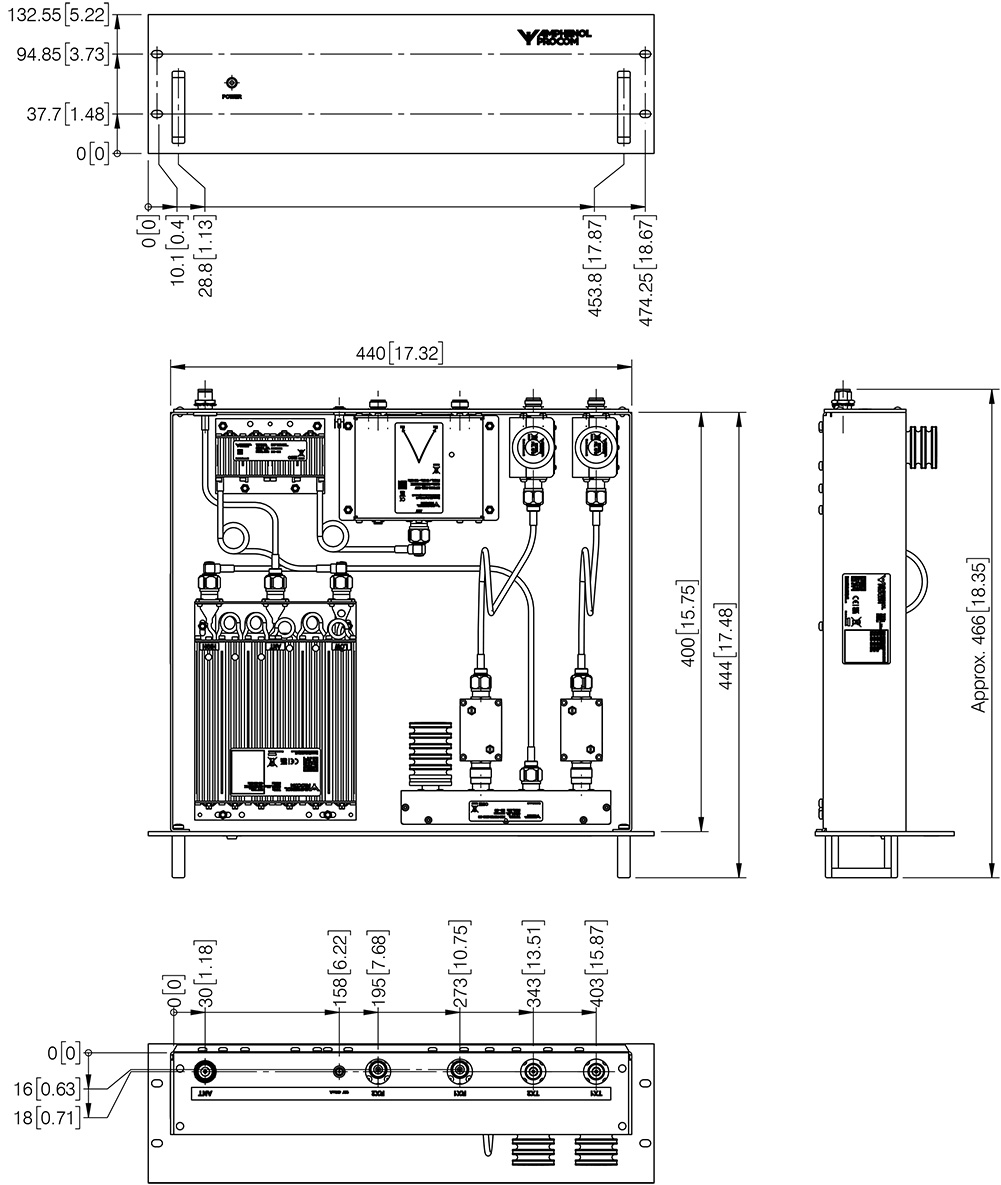

PRO COM450 2 Mounting details

All dimensions are given in mm [in.]

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type PRO-COM150-2SI is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-PRO-COM150.pdf
