PRO-COM150-HDAR-4

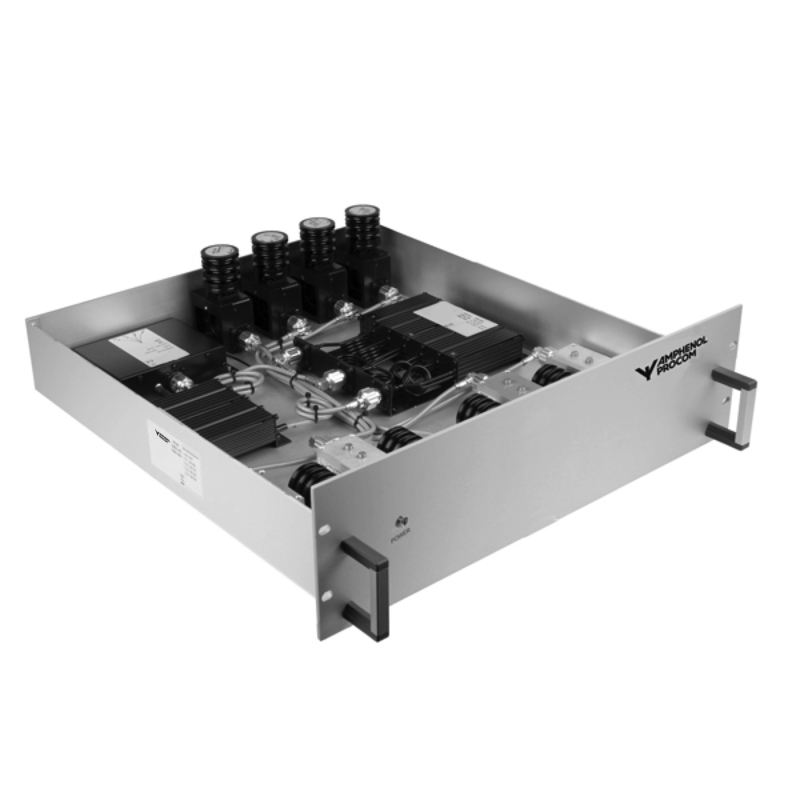

4-Channel 19″ 3 HU Single Tray Combining System

Find Out More
Data Sheet
CE Certification

Other Files

PRO-COM150-HDAR-4
Electrical
Min. Duplex Spacing 4 MHz
Model PRO-COM150-HDAR-4 …
Frequency l : 136 – 156 MHz
h : 152 – 175 MHz
Max. Input Power 50 W (per channel)
Max. Tx-Tx Spacing 1.5 MHz
Insertion Loss Tx Path < 8.0 dB
Impedance 50 Ω
Ant-Tx Isolation > 40 dB @ 25 °C
Isolation Tx-Tx > 70 dB
Isolation Rx-Rx > 20 dB
VSWR < 1.5:1
LNA Noise Figure < 3.5 dB
Current Consumption 500 mA @ 12 V DC
Gain Rx 1 dB ±1 dB (factory set)
No. of channels 4
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Procom
Dimensions 19″ x 3 HU
(482.6 x 132.55 mm) /
19 x 5.22 in.
– see Mechanical Outline for depth of tray
Weight Approx. 9.2 kg / 20.28 lb.
  • An integrated single tray combining solution housing a 4-channel hybrid Tx hybrid combiner, duplex filter, active Rx multicouplers and preselector.
  • Minimal rack space required – only 3 HU.
  • Compatible with digital 6.25 kHz channel spacing.
  • Single Tx isolators fitted as standard (dual isolators available as option).
  • 4 Rx ports as standard.
  • Please specify Tx/Rx frequencies when ordering.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
4-Channel 19″ 3 HU Single Tray Combining System PRO-COM150-HDAR-4

Login required

You need to be logged in into your account to view downloadable documents.

Ordering Designations

Contact for system-specific product No.

Use the guide below to make the name of the PRO-COM150-HDAR-4 you would like to buy. Remember to buy the Power Adaptor separately if needed.

ModelColor of front plateCombiner Freq. BandDuplex filter Bandwidth (BW) and Tx/Rx SpacingHybrid Tx frequencies
PRO-COM150- Alu front plate = HDAR-4
Black front plate = BHDAR-4		 Low : 138 – 156 MHz = L
High : 152 – 175 MHz = H		 1.5-4/6-1.5 *
1.5-6/8-1.5
1.5-8/10-1.5

* Max. Low BW: 1.5 MHz- Tx/Rx spacing: 4 to 6 MHz –
   Max. High BW: 1.5 MHz = 1.5-4/6-1.5		 130-160 MHz = 3
140-170 MHz = 5
150-180 MHz = 8
Naming Example
PRO-COM150- HDAR-4 H /1.5-8/10-1.5/ 5


Naming Example: PRO-COM150-HDAR-4 H/1.5-8/10-1.5/5

Accessories
 ModelProduct No.
Power Supply AC/DC 12V/1A EU/UK/US 240000060
Power Supply AC/DC 12V/1A EU/UK/US

Power Supply ACDC 12V1A EUUKUS

Mechanical Outline

PRO COM150 450 HDAR 4 mounting

All dimensions are given in mm [in.]

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type PRO-COM150-HDAR-4 is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-PRO-COM-HDAR_BHDAR.pdf
