PRO-COM450-HDAR-2 (Replaced by PRO-COM450-2)
Electrical
Min. Duplex Spacing 5 MHz
Model PRO-COM450-HDAR-2 …
Frequency L : 380 – 400 MHz
H : 406 – 470 MHz
Max. Input Power 35 W (per channel)
Max. Tx-Tx Spacing 2 MHz
Insertion Loss Tx Path < 5.0 dB
Impedance 50 Ω
Ant-Tx Isolation > 40 dB @ 25 °C
Isolation Tx-Tx > 70 dB
Isolation Rx-Rx > 20 dB
VSWR < 1.5:1
LNA Noise Figure < 3.5 dB
Current Consumption 500 mA @ 12 V DC
Gain Rx 1 dB ±1 dB (factory set)
No. of channels 2
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Procom
Dimensions 19″ x 3 HU
(482.6 x 132.55 mm) /
19 x 5.22 in.
– see Mechanical Outline for depth of tray
Weight Approx. 6.3 kg / 13.89 lb.
  • An integrated single tray combining solution housing a 2-channel hybrid Tx hybrid combiner, duplex filter, active Rx multicouplers and preselector.
  • Minimal rack space required – only 3 HU.
  • Compatible with digital 6.25 kHz channel spacing.
  • Single Tx isolators fitted as standard (dual isolators available as option).
  • 2 Rx ports as standard (4 ports available as option).
  • Please specify Tx/Rx frequencies when ordering.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote

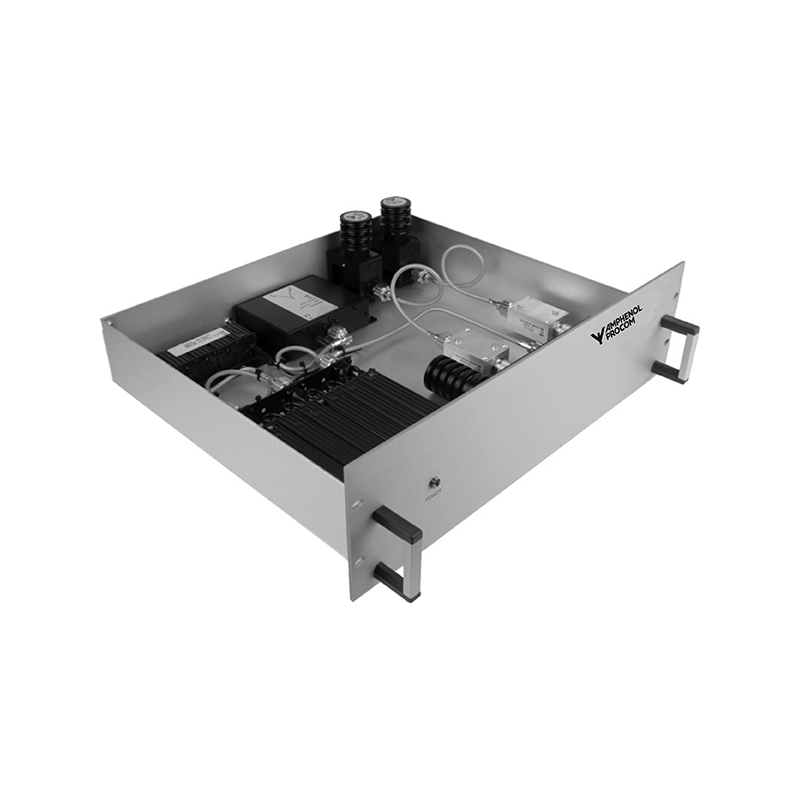

2-Channel 19″ 3 HU Single Tray Combining System PRO-COM450-HDAR-2 (Replaced by PRO-COM450-2)

Login required

You need to be logged in into your account to view downloadable documents.

Ordering Designations

Contact for system-specific product No.

Use the guide below to make the name of the PRO-COM450-HDAR-2 you would like to buy. Remember to buy the Power Adaptor separately if needed.

ModelColor of front plateCombiner Freq. BandRX FrequenciesDuplex filter Bandwidth (BW) and Tx/Rx SpacingHybrid Tx frequencies
PRO-COM450- Alu front plate = HDAR-2
Black front plate = BHDAR-2		 Low : 340 – 400 MHz = L
High : 406 – 470 MHz = H		 380 – 440 MHz = L
430 – 470 MHz = H		 2-5/7-2 *
2-7/9-2
2-9/13-2
2-13/16-2


* Max. Low BW: 2 MHz- Tx/Rx spacing: 5 to 7 MHz –
  Max. High BW: 2 MHz = 2-5/7-2		 380 – 400 MHz = TETRA
400 – 420 MHz = 1
415 – 435 MHz = 2
430 – 450 MHz = 3
445 – 465 MHz = 4
460 – 480 MHz = 5
Naming Example
PRO-COM450- HDAR-2 H H /2-5/7-2/ 1


Naming Example: PRO-COM450-HDAR-2 HH/2-5/7-2/1

Accessories
 ModelProduct No.
Power Supply AC/DC 12V/1A EU/UK/US 240000060
Power Supply AC/DC 12V/1A EU/UK/US

Power Supply ACDC 12V1A EUUKUS

Mounting Outline

PRO COM150 450 HDAR 2 mounting

All dimensions are given in mm [in.].

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type PRO-COM450-HDAR-2 is in compliance with EU Directive 2014/53/EU
and the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-PRO-COM-HDAR_BHDAR.pdf
