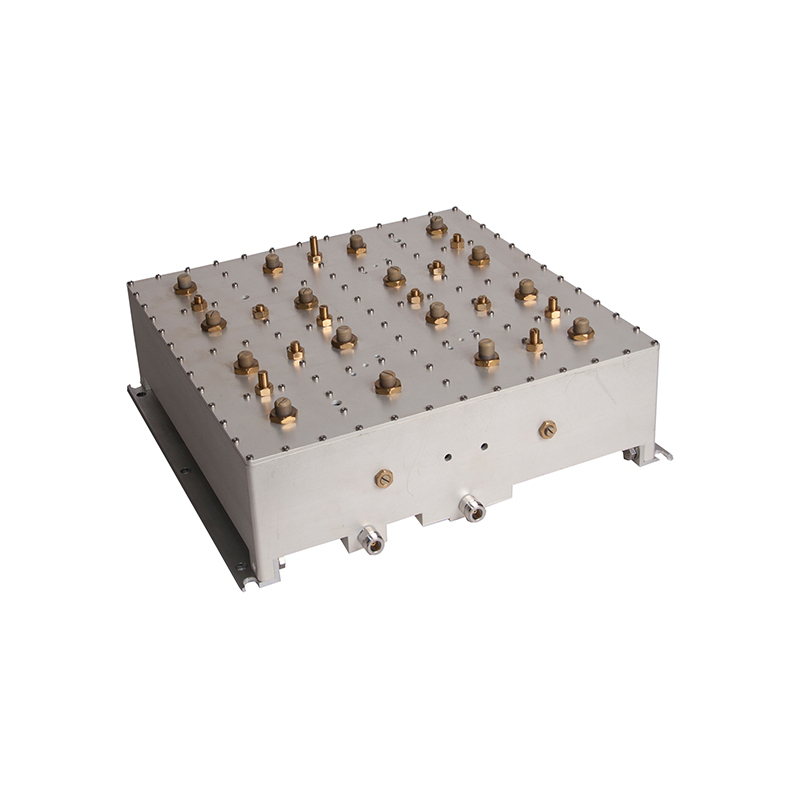

PRO-DDPF E-GSM-R
Electrical
Rejection 0 – 872.0 MHz : ≥ 40 dB
882.0 – 917.0 MHz : ≥ 40 dB
926.0 – 930.0 MHz : ≥ 40 dB
930.0 – 2700 MHz : ≥ 50 dB
Model PRO-DDPF E-GSM-R
Frequency Uplink : 873 – 880 MHz
Downlink : 918 – 925 MHz
Max. Input Power 50 W
Pass Band Insertion Loss 0.8 dB (Typ.)
Impedance 50 Ω
Passive Intermodulation < -150 dBc (2 x 43 dBm)
Environmental
Frequency Stability Approx. 2 ppm / °C
MTBF > 1.000.000 hours
Operating temperature range -25 °C to +70 °C
Temp. Test EN 50 155, 4.1.2, T3
Shock and Vibration EN 50 155, 4.1.3
Humidity EN 50 155, 4.1.4
Dry Heat EN 50 155, 12.2.4
Ingress Protection IP54
Damp Heat Cyclic EN 50 155, 12.2.5
Storage and Transportation ETSI 300-019-2-1
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 350 x 350 x 115 mm / 13.78 x 13.78 x 4.53 in.
(incl. adjusting screw)
Altitude EN 50 125-1, 4.2 dass AX
  • Low insertion loss.
  • High level of rejection close to the passband.
  • Good rejection of out of band spurious signals.
  • Reduces interference from public mobile networks.
  • Protect the E-GSM-R Cab radios from blocking problems.
  • European International Union of Railways (UIC) has reported a high number of E-GSM-R network problems caused by interference from strong public mobile networks signals (E-GSM-R, UMTS and LTE). The reported cases show that the interference from the public mobile network transmitters effects E-GSM-R equipment installed in railway trains e.g. receiver desensitization, receiver blocking and receiver overload.
  • The number of interferences is expected to increase in future, due to the planned deployment of E-GSM-R in Europe and the general growth of public mobile networks.
  • Amphenol Procom has developed a dual duplex protection filter for the E-GSM-R band (PRO-DDPF E-GSM-R) that attenuates the interference from public mobile networks and reduces the blocking problems to non-critical levels.
  • The Dual Duplex Proctection Filter is devolped using dielectric resonator technology in order to achieve a low insertion loss and a high level of rejection close to the passband.

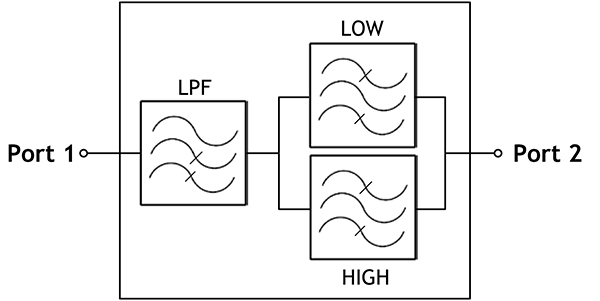

ELECTRICAL BLOCK DIAGRAM

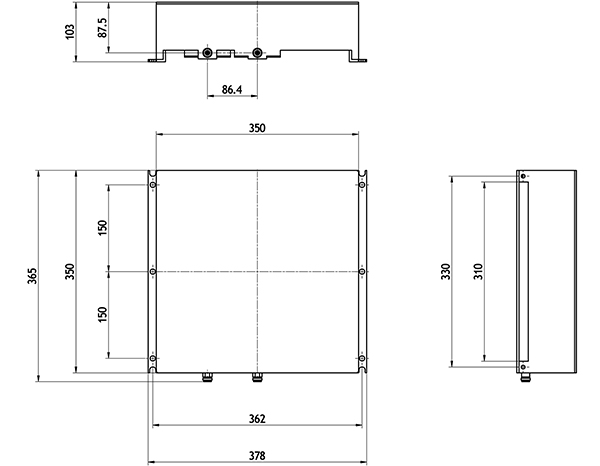

MOUNTING DETAILS

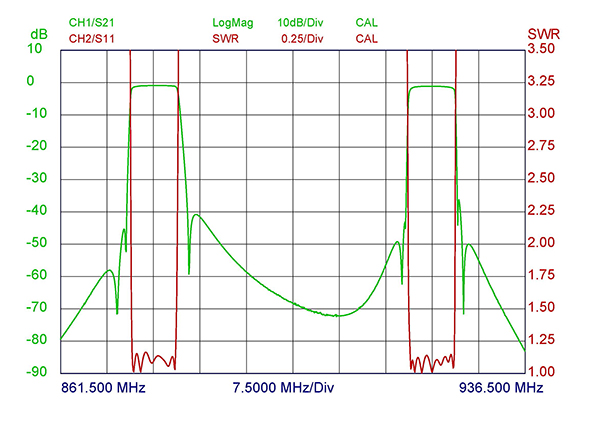

TYPICAL RESPONSE CURVES
