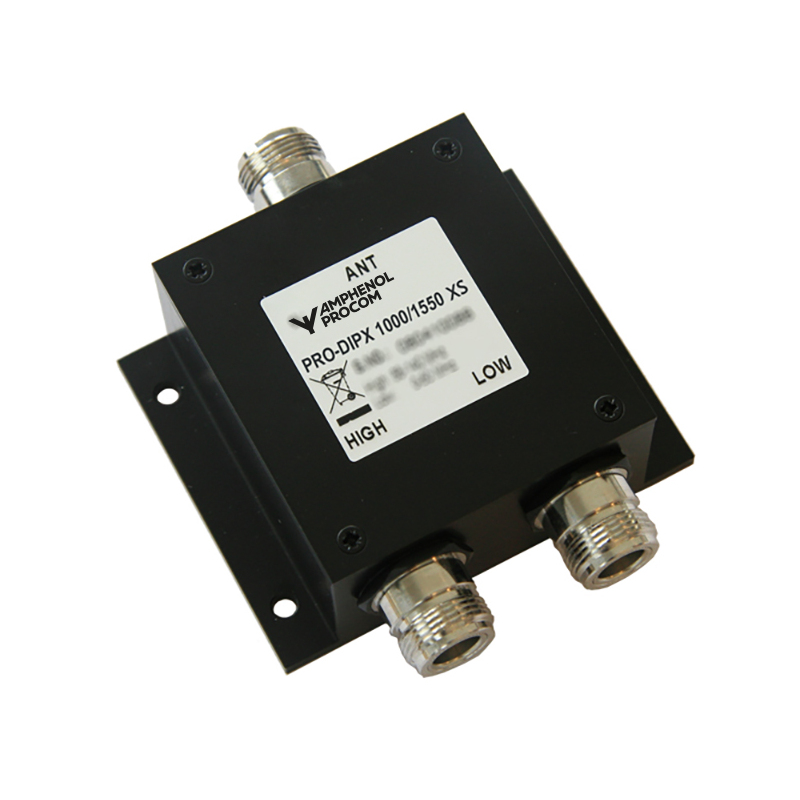

PRO-DIPX 1000/1550-… XS

Diplexer for the 0 – 1000 MHz and 1550 – 2500 MHz Ranges

Find Out More

Quickly identify the correct ordering code.

PRO-DIPX 1000/1550-… XS
Electrical
Model PRO-DIPX 1000/1550-… XS
Frequency Low port : 0 – 1000 MHz
High port : 1550 – 2500 MHz
Max. Input Power 35 W each port
Insertion Loss 0 – 1000 MHz : ≤ 0.8 dB typ. ≤ 0.6 dB
1550 – 2500 MHz : ≤ 1.0 dB typ. ≤ 0.8 dB
Impedance 50 Ω
Isolation Low to high port : ≥ 45 dB typical 50 dB
VSWR ≤ 1.5:1 on all ports
DC pass max. current DC pass LOW port to ANT port : 1 A (Applies only to certain models. See Ordering)
DC pass HIGH port to ANT port : 200 mA (Applies only to certain models. See Ordering)
Environmental
Operating temperature range -30 °C to +70 °C
Ingress Protection IP64
Mechanical
Connection(s) Low : N(f)
High : N(f)
Antenna : N(f)
Historic Brand Amphenol Procom
Dimensions 96 x 32 x 80 mm / 3.78 x 1.26 x 3.15 in.
Weight Approx. 0.35 kg / 0.77 lb.
Mounting 4.3 mm dia. / 0.17 in. dia. (4 holes)
  • Diplexer for combining or splitting the two ranges 0 – 1000 MHz and 1550 – 2500 MHz.
  • Excellent wide-band coverage.
  • N-connections on all ports.
  • DC pass on certain models. See ordering section.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

PRO-DIPX 1000/1550-DC-L XS

200001622 DC Pass : LOW port to ANT port

PRO-DIPX 1000/1550-DC-H XS

200001998 DC Pass : HIGH port to ANT port

PRO-DIPX 1000/1550-DC-LH XS

200001999 DC Pass : LOW and HIGH port to ANT port

PRO-DIPX 1000/1550-NO-DC XS

200002000 No DC pass

Login required

You need to be logged in into your account to view downloadable documents.

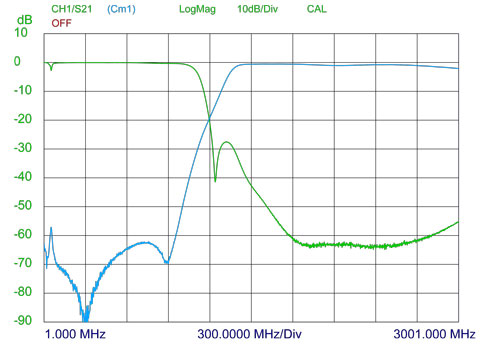

Typical Response curve

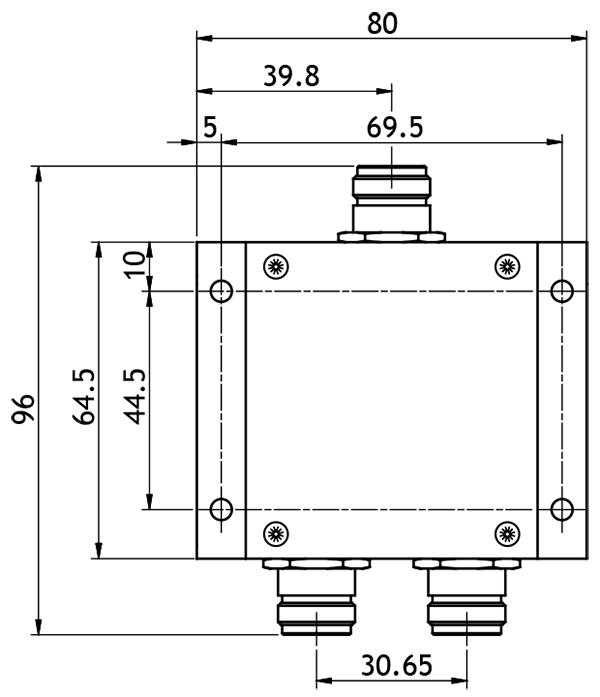

Mounting Details

PRO DIPX 1000!1500 XS Hole

All dimensions are given in mm.

Installation

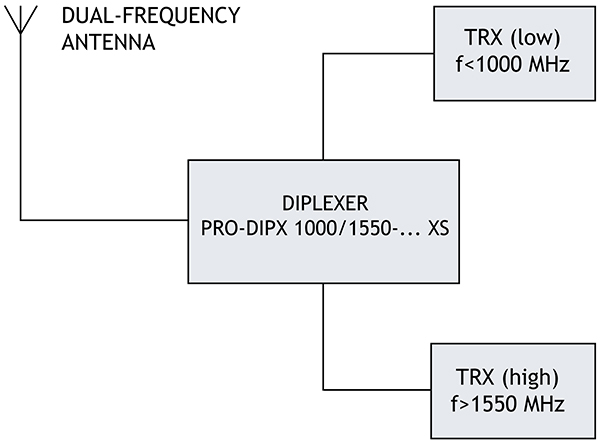

The PRO-DIPX 1000/1550-… XS makes it possible to use only one antenna for the operation of two transceivers (one in each range). See the figure below. The antenna must be a dual-frequency antenna, i.e. it must be resonant on the actual frequencies in the two bands. The transceivers may be used independently and will have no degrading influence on each other. Typically, the diplexer is installed next to the transceivers and only one cable is used between the diplexer and the antenna. The diplexer is suitable both for base station and mobile use.
The main tasks of the diplexer are to protect the individual receiver input from being destroyed by the transceiver in the contrary band and to ensure a low-loss path between the transceiver and the antenna which is not loaded by the other branch.
The diplexer can be operated together with any set of transceivers operating within the 0 – 1000 MHz and 1550 – 2500 MHz frequency bands.
Dual-frequency antennas are available for both mobile and base station applications.

PRO DIPX 1000 1550 XS diag GB
