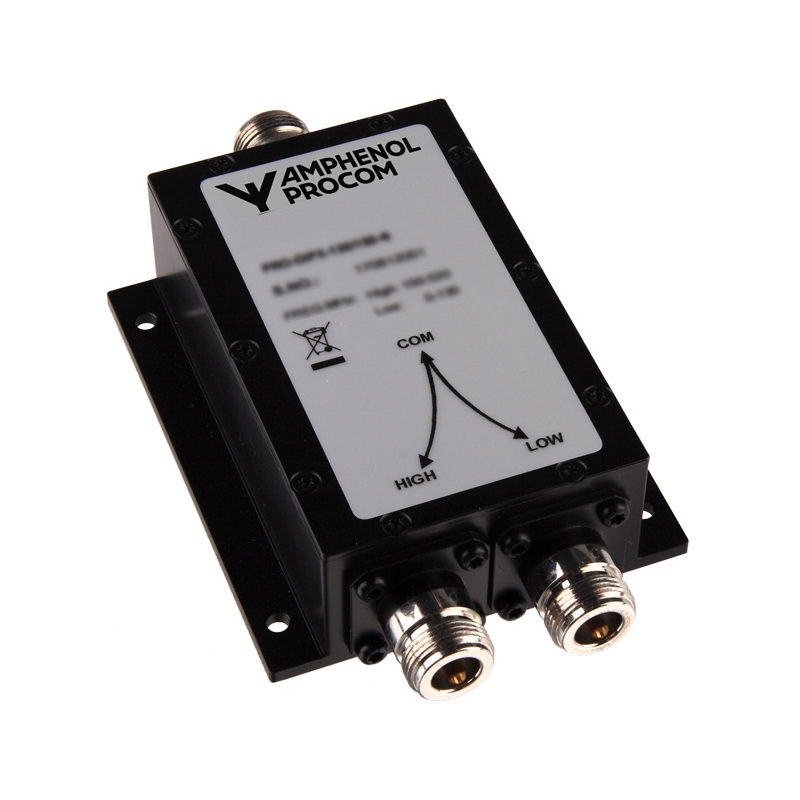

PRO-DIPX 174/200-…

100 W Diplexer for the 0 – 174 MHz and 200 – 960 MHz Ranges

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-DIPX 174/200-...

Quickly identify the correct ordering code.

PRO-DIPX 174/200-…
Electrical
Model PRO-DIPX 174/200-…
Frequency COM-LOW port: 0 – 174 MHz
COM-HIGH port: 200 – 960 MHz
Max. Input Power 100 W CW simultaneously on both HIGH and LOW port
See Note *)
Insertion Loss 0 – 174 MHz: ≤ 0.8 dB
200 – 960 MHz: ≤ 0.8 dB
Impedance 50 Ω
Isolation LOW to HIGH port: ≥ 40 dB
VSWR < 1.5:1
Environmental
Operating temperature range -40 °C to +60 °C
Ingress Protection IP64
Mechanical
Connection(s) COM : N(f)
LOW : N(f)
HIGH : N(f)
(Other types available on request)
Historic Brand Amphenol Procom
Dimensions 133 x 80 x 31 mm /
5.24 x 3.15x 1.22 in. (incl. connectors and flanges)
Weight Approx. 0.38 kg / 0.84 lb.
Mounting 4.3 mm / 0.17 in. dia. (4 holes)
  • Diplexer for combining or splitting the two ranges 0 – 174 MHz and 200 – 960 MHz.
  • Chebychev design ensures very high isolation across the whole pass ranges.
  • High power handling capability.
  • Low insertion loss.
  • Low weight.
  • Wide temperature range.
  • Milled aluminium box ensures extraordinarily high mechanical strength.
  • PRO-DIPX 174/200-… is coated with black vinyl to prevent corrosion.
  • N-connectors on all ports (standard).
  • Also available with SMA-, TNC- or BNC- connector types.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Connection(s) Add To Quote

PRO-DIPX 174/200-N(f)

 200002252 N(f)

PRO-DIPX 174/200-SMA(f)

 200002253 SMA(f)

PRO-DIPX 174/200-TNC(f)

 200002254 TNC(f)

PRO-DIPX 174/200-BNC(f)

 200002255 BNC(f)

Login required

You need to be logged in into your account to view downloadable documents.

Note *)

Adequate cooling to keep maximum temperature of the box surface below +60 ˚;C must be provided (e.g. by heat sink or active cooling).

Typical response curves

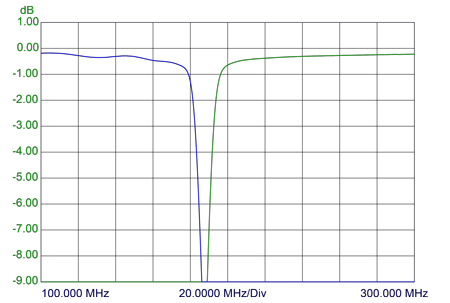

Insertion Loss [dB]

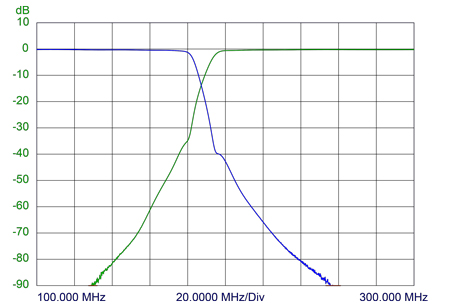

Port Attenuation [dB]

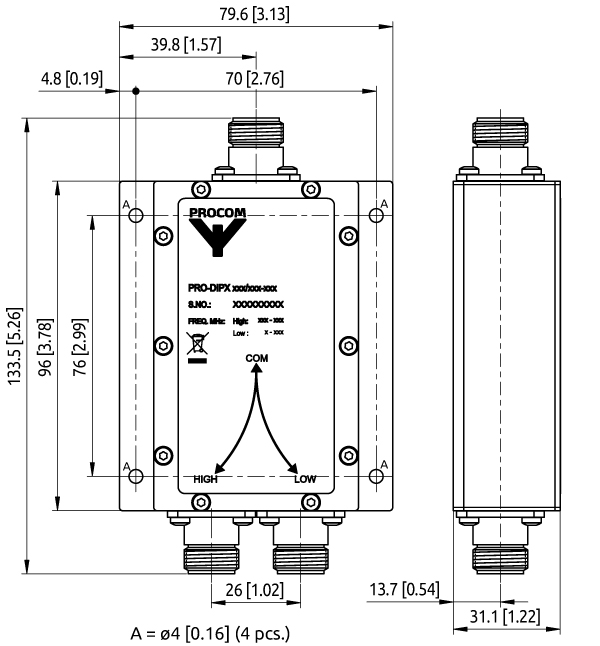

Mounting Details

PRO-DIPX 44-56 80-100 130-150 174-200 80-88-Hole

All dimensions are given in mm [in.]

Installation

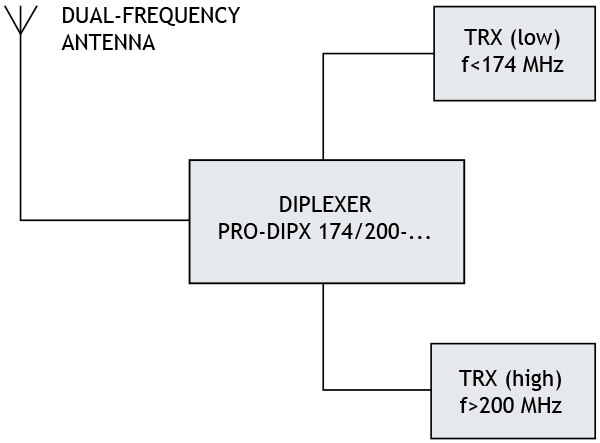

The PRO-DIPX 174/200-… makes it possible to use only one antenna for the operation of two transceivers (one in each range). See the figure below. The antenna must be a dual-frequency antenna, i.e. it must be resonant on the actual frequencies in the two bands.

The transceivers may be used independently and will have no degrading influence on each other. Typically, the diplexer is installed next to the transceivers and only one cable is used between the diplexer and the antenna. The diplexer is suitable both for base station and mobile use.

The main tasks of the diplexer are to protect the individual receiver input from being destroyed by the transceiver in the contrary band and to ensure a low-loss path between the transceiver and the antenna which is not loaded by the other branch.

The diplexer can be operated together with any set of transceivers operating within the 0 – 174 MHz and 200 – 960 MHz frequency bands.

PRO DIPX 174 200 diag
