PRO-DIPX 174/223-960-…

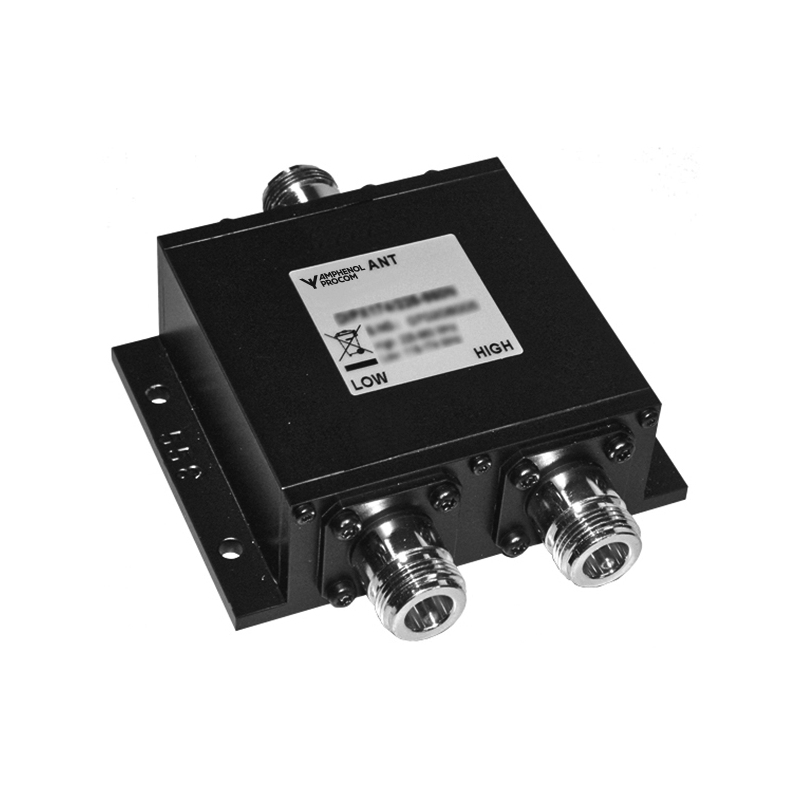

Diplexer for the 0 – 174 MHz and 223 – 960 MHz Ranges

Find Out More
Data Sheet
CE Certification

Other Files

PRO-DIPX 174/223-960-...
Electrical
Model PRO-DIPX 174/223-960-…
Frequency Ant-low port : 0 – 174 MHz
Ant-high port : 223 – 960 MHz
Type Diplexer
Max. Input Power 50 W each port
Insertion Loss < 0.5 dB
Impedance 50 Ω
Isolation Low to high port : 30 dB
VSWR < 1.5:1
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP64
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 107 x 89 x 30 mm / 4.21 x 3.50 x 1.18 in.
Weight Approx. 0.35 kg / 0.77 lb.
Mounting 4.2 mm dia. (4 holes)
  • Diplexer for combining or splitting the two ranges 0 – 174 MHz and 223 – 960 MHz.
  • Excellent wide-band coverage.
  • Very low ripple and insertion loss in the pass bands.
  • Isolation better than 30 dB.
  • Provided with N-connectors. (Other types on request)
  • Aluminium profile box ensures extraordinary high mechanical strength.
  • Black vinyl-coated to prevent corrosion.
  • Provided with brackets for panel mouting.

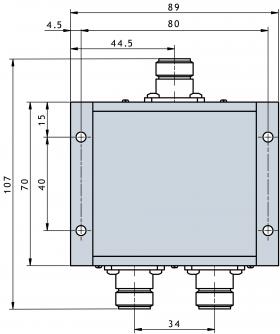

MECHANICAL DIMENSIONS

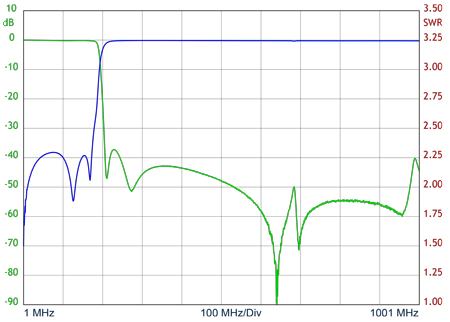

TYPICAL RESPONSE CURVE
