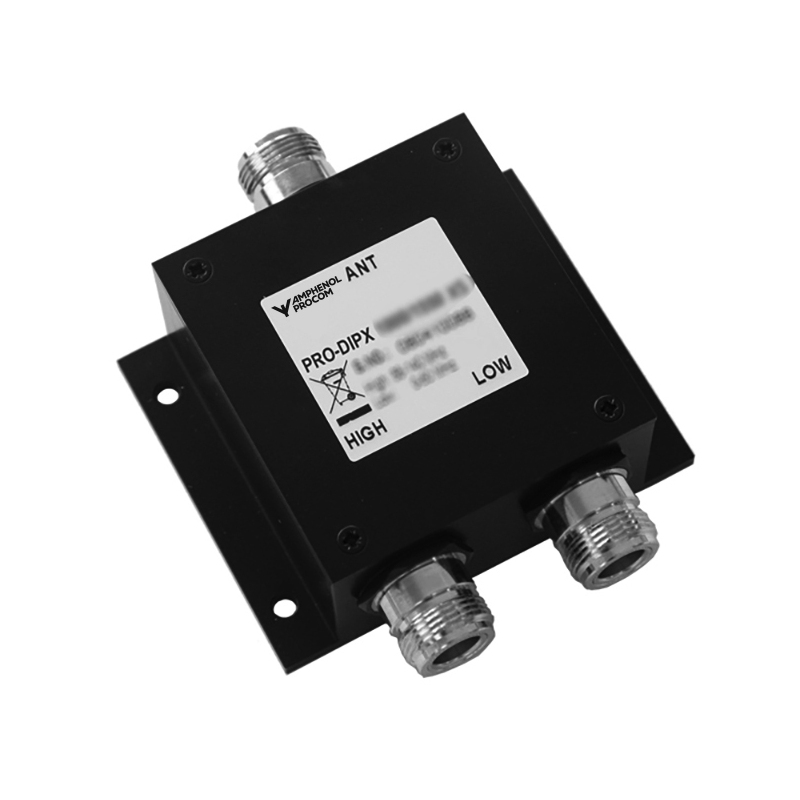

PRO-DIPX 225/330-N XS

Diplexer for the 0 – 225 MHz and 330 – 1300 MHz Rangers

Find Out More
Data Sheet
CE Certification

Other Files

PRO-DIPX 225/330-N XS
Electrical
Model PRO-DIPX 225/330-N XS
Frequency Ant – low port : 0 – 225 MHz
Ant-high port : 330 – 1300 MHz
Max. Input Power 35 W
Insertion Loss 0 – 225 MHz : ≤ 0.8 dB
330 – 1300 MHz : ≤ 0.8 dB
Impedance 50 Ω
Isolation Low to high port : ≥ 45 dB
VSWR LOW port : < 1.5:1
HIGH port : 300 – 1000 MHz : < 1.5:1
HIGH port : 1000 – 1300 MHz : < 1.8:1
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP64
Mechanical
Connection(s) Low : N
High : N
Antenna : N
Historic Brand Amphenol Procom
Dimensions 96 x 80 mm x 32 mm /
3.78 x 3.15 x 1.26 in. (incl. connectors and flanges)
Weight Approx. 0.35 kg / 0.77 lb.
Mounting 4.2 mm dia (4 holes)
  • Diplexer for combining or splitting the two ranges 0 – 225 MHz and 330 – 1300 MHz.
  • Excellent wide-band coverage.
  • Can be used to combine e.g. VHF LMR and TETRA/GSM on a common multiband antenna.
  • Smaller model in milled aluminium box.
  • Extraordinarily high mechanical strength.
  • Black vinyl-coated to prevent corrosion.
  • Provided with brackets for panel mounting.
  • N-connections on all ports.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Diplexer for the 0 – 225 MHz and 330 – 1300 MHz Rangers 200002166

Login required

You need to be logged in into your account to view downloadable documents.

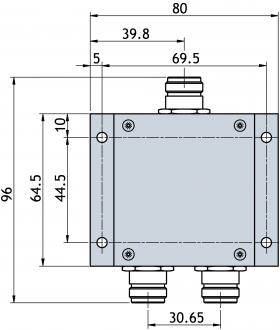

Mounting details

All dimensions are given in mm.

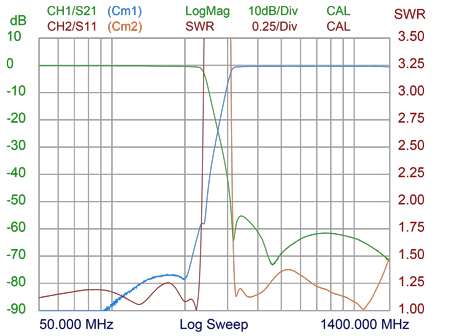

Typical Response curve



Installation

The PRO-DIPX 225/330-N XS makes it possible to use only one antenna for the operation of two transceivers (one in each range). See the figure below. The antenna must be a dual-frequency antenna, i.e. it must be resonant on the actual frequencies in the two bands.

The transceivers may be used independently and will have no degrading influence on each other. Typically, the diplexer is installed next to the transceivers and only one cable is used between the diplexer and the antenna. The diplexer is suitable both for base station and mobile use.

The main tasks of the diplexer are to protect the individual receiver input from being destroyed by the transceiver in the contrary band and to ensure a low-loss path between the transceiver and the antenna which is not loaded by the other branch.

The diplexer can be operated together with any set of transceivers operating within the 0 – 225 MHz and 330 – 1300 MHz frequency bands.

Dual-frequency antennas are available for both mobile and base station applications.
