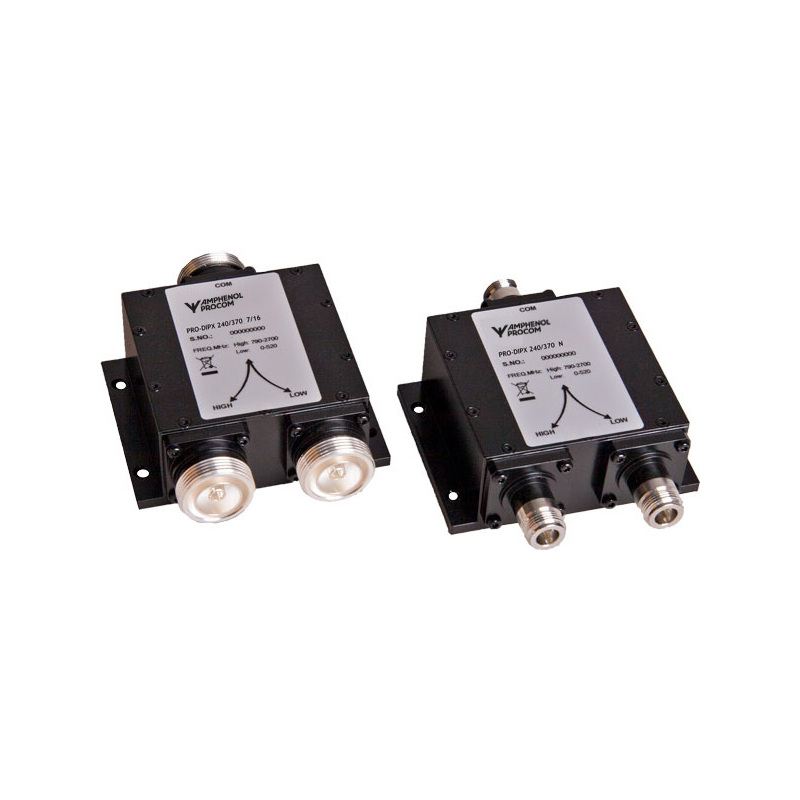

PRO-DIPX 240/370

100 W Diplexer for the 0 – 240 MHz and 370 – 960 MHz Ranges

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-DIPX 240/370

Quickly identify the correct ordering code.

PRO-DIPX 240/370
Electrical
Model PRO-DIPX 240/370-…
Frequency COM – LOW port : 0 – 240 MHz
COM-HIGH port : 370 – 960 MHz
Max. Input Power 100 W CW simultaneously on both HIGH and LOW port
Insertion Loss 0 – 240 MHz : ≤ 0.4 dB
370 – 960 MHz : ≤ 0.5 dB
Impedance 50 Ω
Isolation LOW to HIGH port : ≥ 70 dB
VSWR < 1.5:1
Environmental
Operating temperature range -30 °C to +50 °C
Ingress Protection Indoor version : IP64
Outdoor version : IP67
Mechanical
Connection(s) 7/16 DIN(f) or N(f)
Historic Brand Amphenol Procom
Dimensions Indoor version : 120 x 100 x 46 mm / 4.72 x 3.94 x 1.81 in.
Outdoor version : 126 x 100 x 46 mm / 4.96 x 3.94 x 1.81 in.
Weight Indoor version : Approx. 865 g / 1.90 lb.
Outdoor version : Approx. 1000 g / 2.20 lb.
Mounting Indoor : ø5.2 mm / ø0.20 in. (4 holes)
Outdoor : ø7.0 mm / ø0.28 in. (2 holes)
  • Diplexer for combining or splitting the two ranges 0 – 240 MHz and 370 – 960 MHz.
  • Available in an indoor and outdoor version.
  • Eliptical filter design ensures very high isolation across the entire pass ranges.
  • High power-handling capability.
  • Very low insertion loss.
  • Wide temperature range.
  • 7/16 DIN connectors or N connectors on all ports.
  • Coated with 2-component lacquer for maximum weather protection.
  • Mast mounting bracket available for the outdoor version.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

PRO-DIPX 240/370-7/16(f) Indoor

 200002314 Indoor use

PRO-DIPX 240/370-7/16(f) Outdoor

 200002313 Outdoor use

PRO-DIPX 240/370-N(f) Indoor

 200002771 Indoor use

PRO-DIPX 240/370-N(f) Outdoor

 200002908 Outdoor use

Login required

You need to be logged in into your account to view downloadable documents.

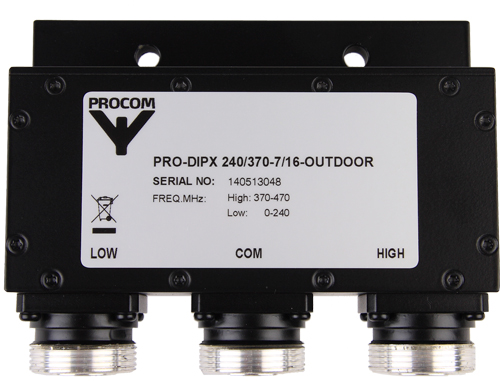

OUTDOOR VERSION (with 7/16 DIN conn.)

PRO DIPX 240 370 7 16 OutDoor

Typical Response curves

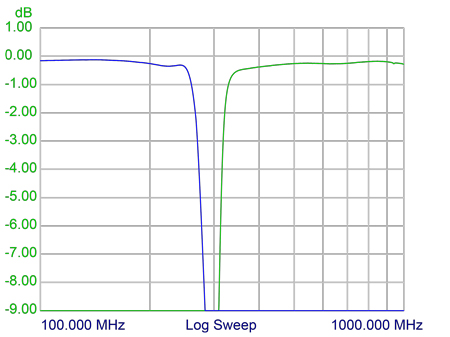

INSERTION LOSS [dB]

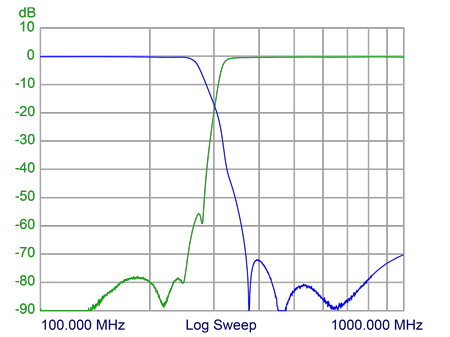

PORT ATTENUATION (dB]
