PRO-DIPX 44/56-…

100 W Diplexer for the 0 – 44 MHz and 56 – 520 MHz Ranges

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-DIPX 44/56-...

Quickly identify the correct ordering code.

PRO-DIPX 44/56-…
Electrical
Model PRO-DIPX 44/56-…
Frequency COM – LOW port : 0 – 44 MHz
COM – HIGH port : 56 – 520 MHz
Max. Input Power 100W CW simultaneously on both HIGH and LOW port
Insertion Loss 0 – 44 MHz : 0.6 dB
56 – 520 MHz : 0.6 dB
Impedance 50 Ω
Isolation LOW to HIGH port : 40 dB
VSWR < 1.5:1
Environmental
Operating temperature range -40 °C to +60 °C
Ingress Protection IP64
Mechanical
Connection(s) INPUT : N(f)
OUTPUT : N(f)
(Other types available on request)
Historic Brand Amphenol Procom
Dimensions 133 x 80 x 31 mm /
5.24 x 3.15 / 1.22 in. (incl. connectors and flanges)
Weight Approx. 0.38 kg / 0.84 lb.
Mounting 4.3 mm dia. (4 holes)
  • Diplexer for combining or splitting the two ranges 0 – 44 MHz and 56 – 520 MHz.
  • Chebychev design ensures very high isolation across the whole pass ranges.
  • High power handling capability.
  • Low insertion loss.
  • Low weight.
  • Wide temperature range.
  • Milled aluminium box ensures extraordinarily high mechanical strength.
  • Black vinyl-coated to prevent corrosion.
  • N-connectors on all ports (standard).
  • Also available with SMA-, TNC- or BNC- connector types.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

PRO-DIPX 44/56-N

 200002271 PRO-DIPX 44/56-N

PRO-DIPX 44/56-SMA

 200002223 PRO-DIPX 44/56-SMA

PRO-DIPX 44/56-TNC

 200002272 PRO-DIPX 44/56-TNC

PRO-DIPX 44/56-BNC

 200002273 PRO-DIPX 44/56-BNC

Login required

You need to be logged in into your account to view downloadable documents.

Mounting details

PRO-DIPX 44-56 80-100 130-150 174-200 80-88-Hole

All dimensions are given in mm [in.]

Typical response curves

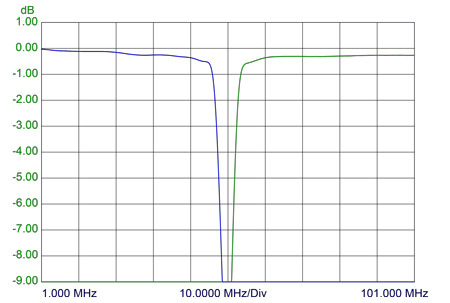

INSERTION LOSS [dB]

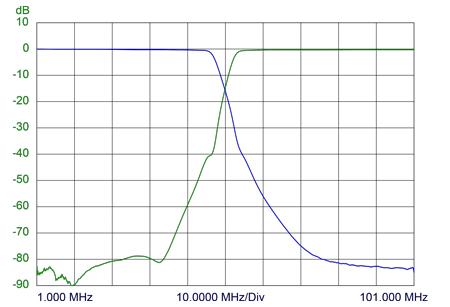

PORT ATTENUATION [dB]

Installation

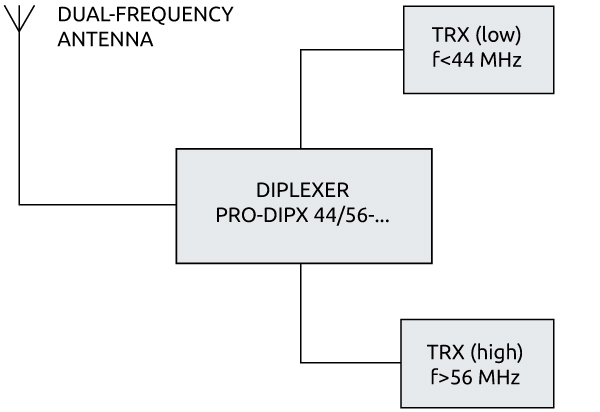

The PRO-DIPX 44/56-… makes it possible to use only one antenna for the operation of two transceivers (one in each range). See the figure below. The antenna must be a dual-frequency antenna, i.e. it must be resonant on the actual frequencies in the two bands.

The transceivers may be used independently and will have no degrading influence on each other. Typically, the diplexer is installed next to the transceivers and only one cable is used between the diplexer and the antenna. The diplexer is suitable both for base station and mobile use.

The main tasks of the diplexer are to protect the individual receiver input from being destroyed by the transceiver in the contrary band and to ensure a low-loss path between the transceiver and the antenna which is not loaded by the other branch.

The diplexer can be operated together with any set of transceivers operating within the 0 – 44 MHz and 56 – 520 MHz frequency bands.

Note

* Temperature on box surface. Adequate cooling to keep max. temperature below +60 ˚;C must be provided.
