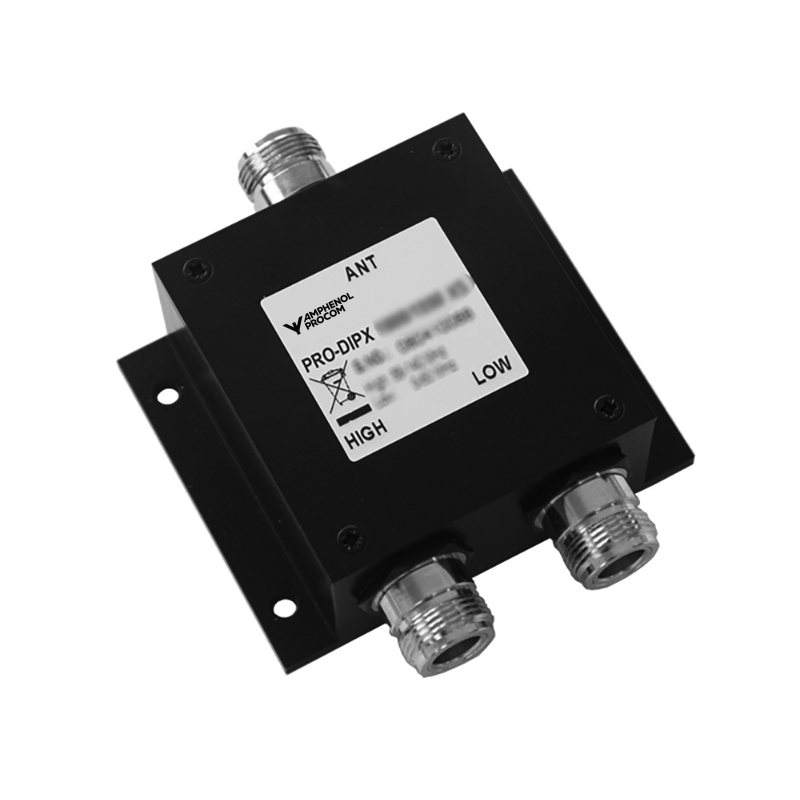

PRO-DIPX 520/790-2.7G-N XS

Diplexer for the 0 – 520 MHz and 790 – 2700 MHz Ranges

Find Out More
Data Sheet
CE Certification

Other Files

PRO-DIPX 520/790-2.7G-N XS
Electrical
Model PRO-DIPX 520/790-2.7G-N XS
Frequency Ant-low port : 0 – 520 MHz
Ant-high port : 790 – 2700 MHz
Max. Input Power Ant-low port : 35 W
Ant-high port : 15 W
Insertion Loss
Ant-low port :
0 – 520 MHz : Max. 0.5 dB typ. < 0.4 dBAnt-high port :
790 – 2500 MHz : Max. 0.7 dB typ. < 0.5 dB
2500 – 2700 MHz : Max. 0.9 dB typ. < 0.7 dB
Impedance 50 Ω on all ports
Isolation Low-High Port 0 – 520 MHz : Min. 45 dB typ. > 50 dB
790 – 2700 MHz : Min. 40 dB typ. > 50 dB
VSWR
Low :
< 1.5:1 (0 - 520 MHz)
Other ports terminated with 50 ΩHigh :
< 1.5:1 (790 - 2500 MHz)
< 2.0 (2500 - 2700 MHz)
Other ports terminated with 50 Ω
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP64
Mechanical
Connection(s) Low : N(f)
High : N(f)
Antenna: N(f)
Historic Brand Amphenol Procom
Dimensions 96 (incl. connectors) x 80 mm (incl. flanges) x 32 mm /
3.7 x 3.2 x 1.2 in.
Weight Approx. 0.35 kg / 0.77 lb.
Mounting 4.2 mm dia (4 holes)
  • Diplexer for combining or splitting the two ranges 0 – 520 MHz and 790 – 2700 MHz.
  • Excellent wide-band coverage.
  • Can be used to combine e.g. TETRA and GSM/UMTS on a common multiband antenna.
  • Smaller model in milled aluminium box.
  • Extraordinarily high mechanical strength.
  • Black vinyl-coated to prevent corrosion.
  • Provided with brackets for panel mounting.
  • N-connections on all ports.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Diplexer for the 0 – 520 MHz and 790 – 2700 MHz Ranges 200002173

Login required

You need to be logged in into your account to view downloadable documents.

Mounting Details

PRO DIPX 1000!1500 XS Hole

All dimensions are given in mm.

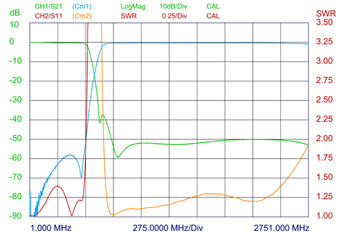

TYPICAL RESPONSE CURVE

PRO-DIPX-500-800-2-5G-N-XS-curve

INSTALLATION

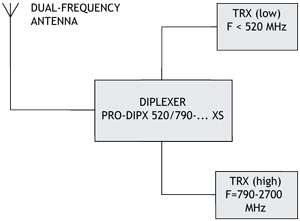

The PRO-DIPX 520/790-2.7G-N XS makes it possible to use only one antenna for the operation of two transceivers (one in each range). See the figure below. The antenna must be a dual-frequency antenna, i.e. it must be resonant on the actual frequencies in the two bands.

The transceivers may be used independently and will have no degrading influence on each other. Typically, the diplexer is installed next to the transceivers and only one cable is used between the diplexer and the antenna. The diplexer is suitable both for base station and mobile use.

The main tasks of the diplexer are to protect the individual receiver input from being destroyed by the transceiver in the contrary band and to ensure a low-loss path between the transceiver and the antenna which is not loaded by the other branch.

The diplexer can be operated together with any set of transceivers operating within the 0 – 520 MHz and 790 – 2700 MHz frequency bands.

Dual-frequency antennas are available for both mobile and base station applications.

PRO-DIPX-520-790-2-5G-N-XS-diag-300x
