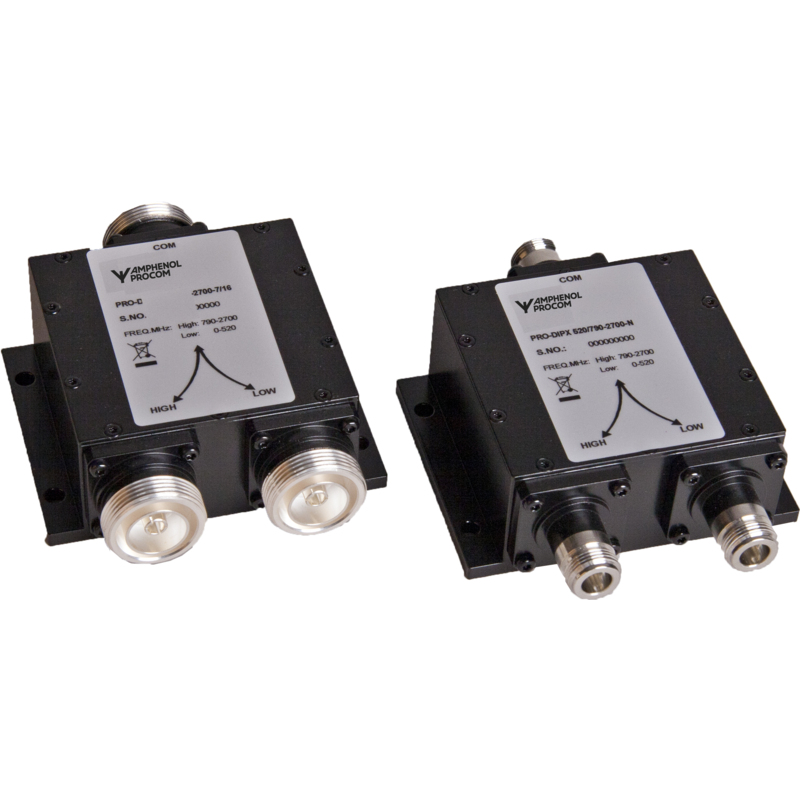

PRO-DIPX 520/790-2700

50 W Diplexer for the 0 – 520 MHz and 790 – 2700 MHz Ranges

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-DIPX 520/790-2700

Quickly identify the correct ordering code.

PRO-DIPX 520/790-2700
Electrical
Model PRO-DIPX 520/790-2700
Frequency COM-LOW port : 0 – 520 MHz
COM-HIGH port : 790 – 2700 MHz
Max. Input Power 50 W CW simultaneously on both
HIGH and LOW port
Insertion Loss 0 – 520 MHz : ≤ 0.6 dB, typ. < 0.5 dB
790 – 870 MHz : ≤ 1.2 dB, typ. < 0.9 dB
870 – 2700 MHz : ≤ 1.0 dB, typ. < 0.7 dB
Impedance 50 Ω
Isolation LOW to HIGH port ≥ 70 dB, typ. 80 dB
VSWR 1.5:1 @ 0 – 520 MHz and 790 – 2500 MHz
2.0:1 @ 2500 – 2700 MHz
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP67
Mechanical
Connection(s) 7/16 DIN(f) or N(f)
Historic Brand Amphenol Procom
Dimensions 77 x 100 x 41 mm / 3.03 x 3.94 x 1.61 in.
(without connectors)
Weight Approx. 0.8 kg / 1.76 lb.
Mounting 5.2 mm dia. (4 holes)
  • Diplexer for combining or splitting the two ranges 0 – 520 MHz and 790 – 2700 MHz.
  • IP 67 rated for both indoor and outdoor use.
  • Chebychev filter design ensures very high isolation across the entire pass ranges.
  • Very low insertion loss.
  • Wide temperature range.
  • 7/16 DIN(f) or N(f) connectors on all ports.
  • Coated with 2-component lacquer for maximum weather protection.

TYPICAL RESPONSE CURVES

MOUNTING DETAILS FOR_x000d_PRO-DIPX 520/790-2700-N

MOUNTING DETAILS FOR_x000d_PRO-DIPX 520/790-2700-7/16

Model Product No. Model Add To Quote

PRO-DIPX 520/790-2700-7/16(f)

 200002445 PRO-DIPX 520/790-2700-7/16(f)

PRO-DIPX 520/790-2700-N(f)

 200002501 PRO-DIPX 520/790-2700-N(f)

Login required

You need to be logged in into your account to view downloadable documents.

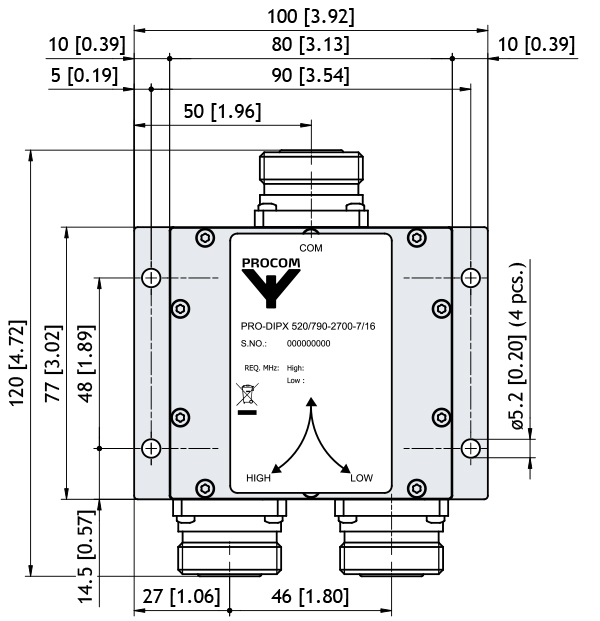

Mounting Details for PRO-DIPX 520/790-2700-7/16

PRO DIPX 520!790 2700 7!16 holeplacing

All dimensions are given in mm [in.]

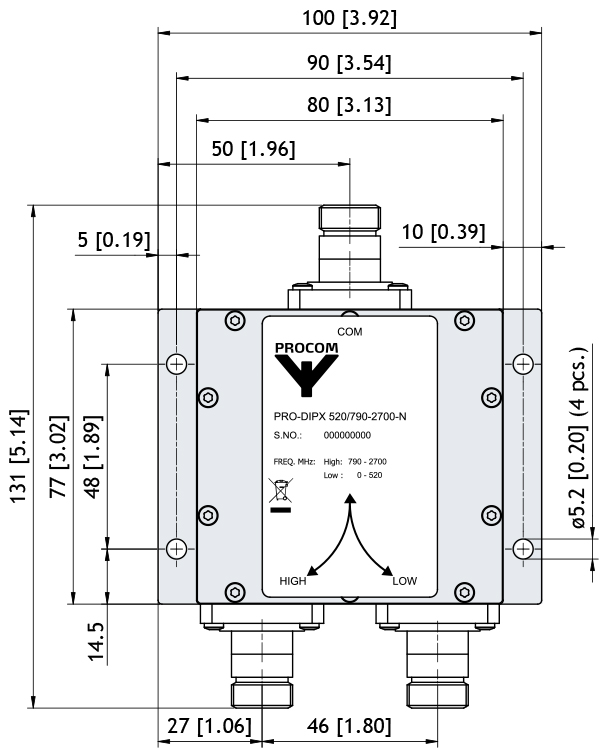

Mounting Details for PRO-DIPX 520/790-2700-N

PRO DIPX 520!790 2700 N holeplacing

All dimensions are given in mm [in.]

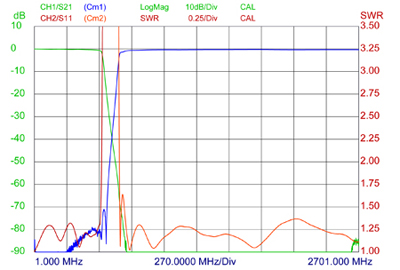

Typical Response Curve

PRO DIPX 520790 2700 kurve 400x
