PRO-DIPX 698-2200/2400-2690

3G/WIFI Diplexer for the 698 – 2200 MHz and 2400 – 2690 MHz Ranges

Find Out More
Data Sheet
CE Certification

Other Files

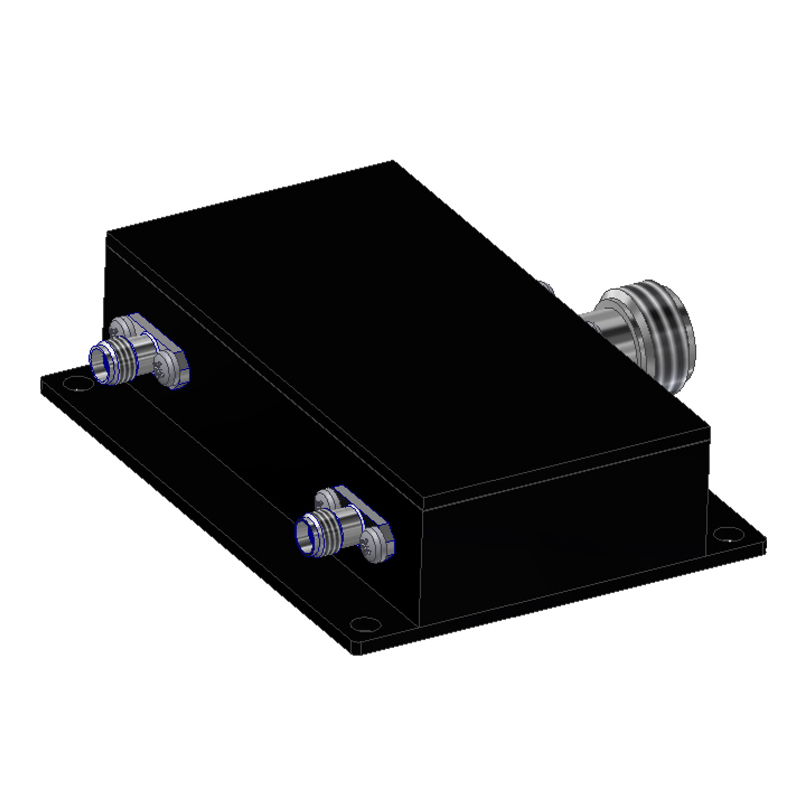

PRO-DIPX 698-2200/2400-2690
Electrical
Model PRO-DIPX 698-2200/2400-2690
Frequency Low port : 698 – 2200 MHz
High port : 2400 – 2690 MHz
Max. Input Power 20 W
Insertion Loss 698 – 2200 MHz : ≤ 1.5 dB
2400 – 2690 MHz : ≤ 2.0 dB
Impedance 50 Ω
Isolation ≥ 50 dB
VSWR Low port : < 1.5
High port : < 1.5
Environmental
Operating temperature range -40 °C to +85 °C
Mechanical
Connection(s) N(f) on antenna port, SMA(f) on high and low port
Historic Brand Amphenol Procom
Dimensions 65 x 85 x 22 mm /
2.56 x 3.35 x 0.87 in. (excl. connectors and flanges)
Weight Approx. 0.188 kg / 0.41 lb.
Mounting 4.3 mm dia. (4 holes)
  • Diplexer for combining or splitting low LTE/GSM/UMTS (698-2200 MHz) and WIFI/high LTE (2400-2690 MHz).
  • Eliptical filter design.
  • Diplexer for combining or splitting 3G bands (698 – 2200 MHz) and WIFI (2400 – 2690 MHz).
  • Wide temperature range –40 °C to +85 °C.

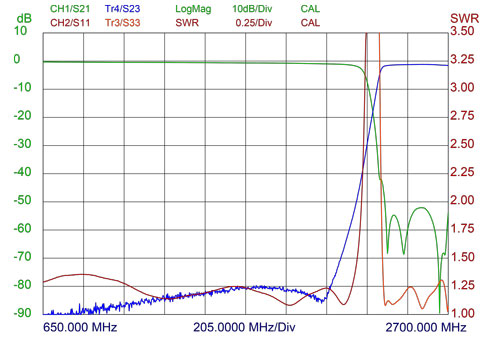

TYPICAL RESPONSE CURVES

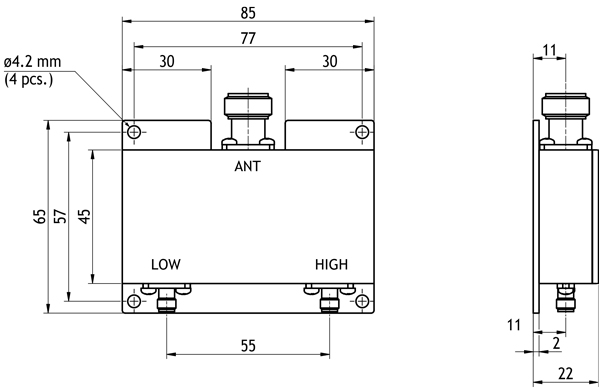

MOUNTING DETAILS

Model Product No. Add To Quote
3G/WIFI Diplexer for the 698 – 2200 MHz and 2400 – 2690 MHz Ranges 200002484
