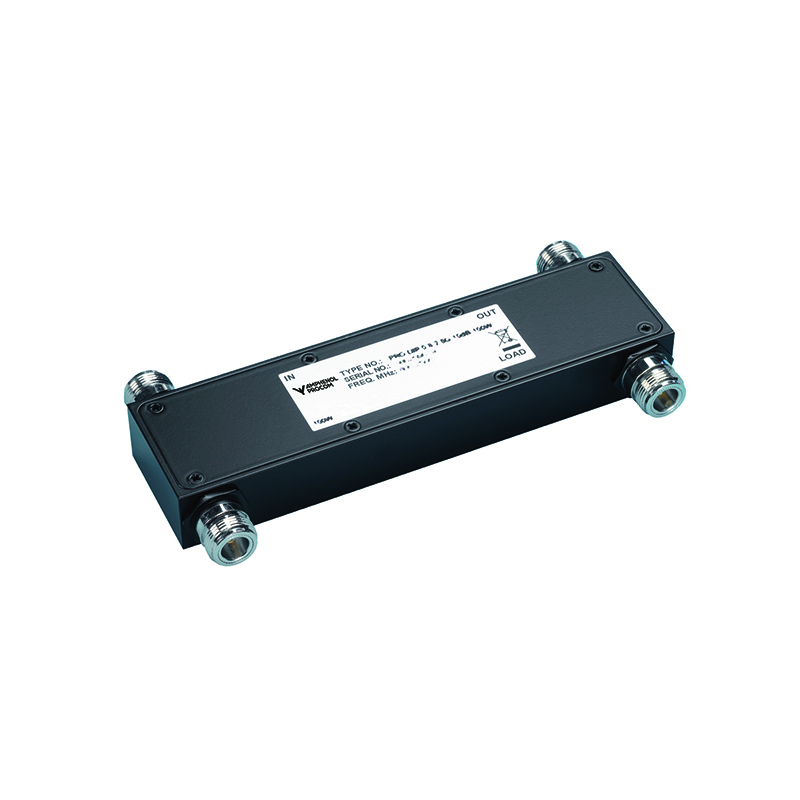

PRO-DIR 0.45-0.8G-10 dB

Directional Coupler 100 W

Find Out More
Data Sheet
CE Certification

Other Files

PRO-DIR 0.45-0.8G-10 dB
Electrical
Model PRO-DIR 0.45-0.8G-10 dB
Frequency 450 – 800 MHz
Max. Input Power 100 W
Coupling 10 dB
Impedance 50 Ω
Nominal Divider Loss 0.1 dB
Total Loss < 0.8 dB
Input VSWR < 1.5:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Compliance RoHS, IP66
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions Aprox. 165 x 75 x 23 mm /
6.50 x 2.95 x 0.91 in.
Weight Approx. 3.75 kg / 8.27 lb.
  • 100 W Directional Coupler with 10 dB coupling covering the 450 – 800 MHz band.
  • Excellent high power performance.
  • Low VSWR and insertion loss over the entire frequency range.

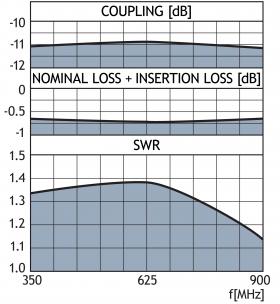

TYPICAL RESPONSE CURVE

Model Product No. Add To Quote
Directional Coupler 100 W 200001823
