PRO-DIR 0.8-2.5G-… dB-100W

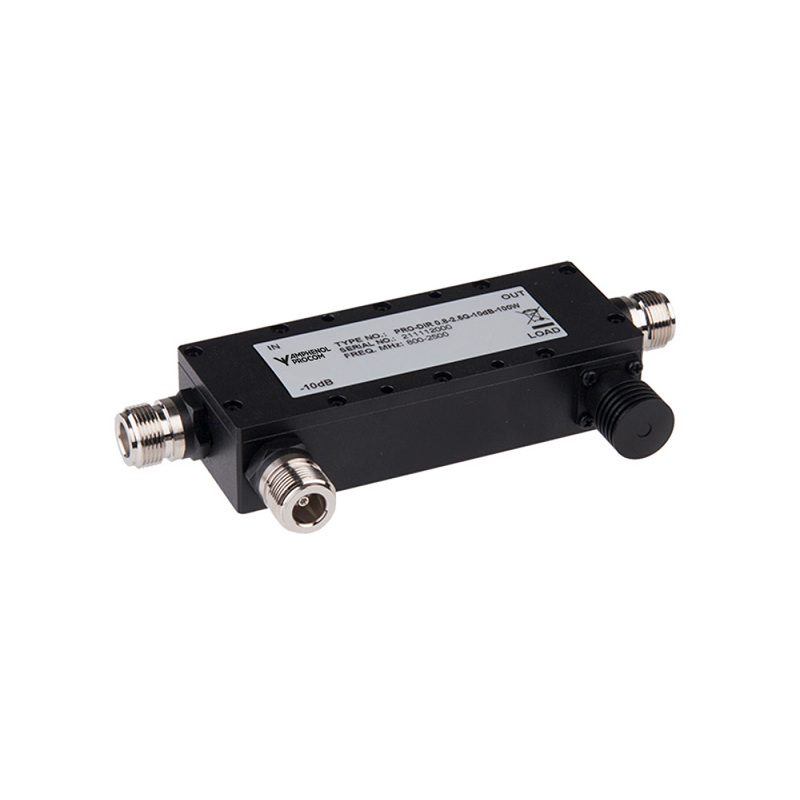

Directional Coupler 100 W

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-DIR 0.8-2.5G-... dB-100W

Quickly identify the correct ordering code.

PRO-DIR 0.8-2.5G-… dB-100W
Electrical
Model
PRO-DIR 0.8-2.5G- 10 dB-100 WPRO-DIR 0.8-2.5G- 20 dB-100 WPRO-DIR 0.8-2.5G- 30 dB-100 W
Frequency 0.8 – 2.5 GHz
Max. Input Power 100 W
Coupling
10 dB ±1 dB20 dB ±1 dB30 dB ±1 dB
Impedance 50 Ω
Nominal Divider Loss
0.1 dB0.01 dB0.001 dB
Total Loss
< 0.6 dB< 0.3 dB< 0.3 dB
Input VSWR < 1.2:1
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP64
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 170 x 45 x 19 mm / 6.69 x 1.77 x 0.75 in.
Weight Approx. 0.211 kg / 0.47 lb.
  • 100 W Directional Coupler with broadband characteristics covering the cellular service bands.
  • Excellent high power performance.
  • Very low VSWR and insertion loss over the entire frequency range.

TYPICAL RESPONSE CURVE 10 dB

Model Product No. Additional Information Add To Quote

PRO-DIR 0.8-2.5G-10 dB-100W-N(f)

 200001720 COUPLING: 10 dB

PRO-DIR 0.8-2.5G-20 dB-100W-N(f)

 200001760 COUPLING: 20 dB

PRO-DIR 0.8-2.5G-30 dB-100W-N(f)

 200001667 COUPLING: 30 dB
