PRO-DIR 300-1000

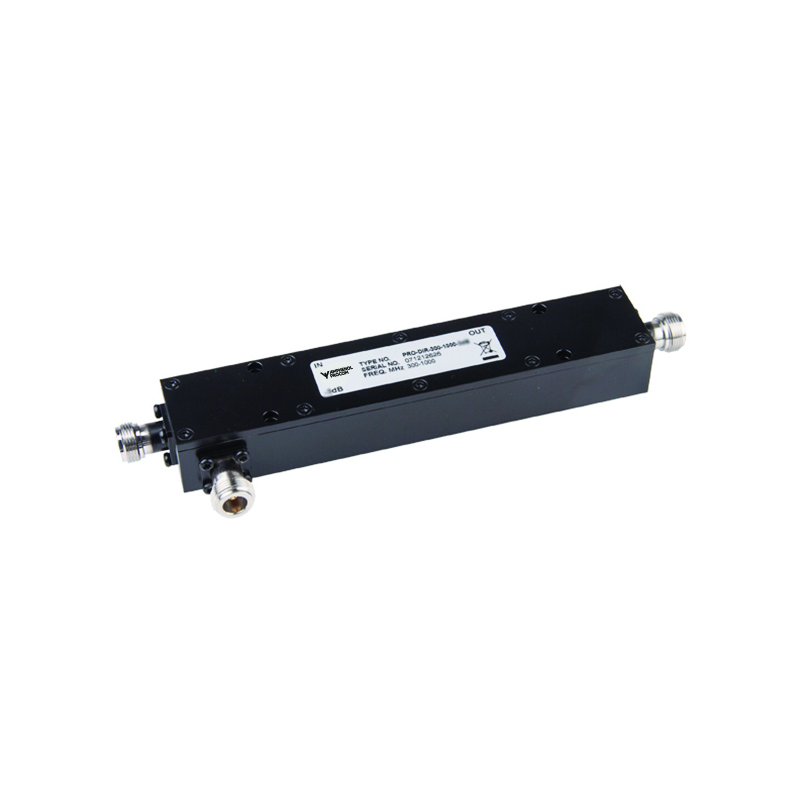

Directional Coupler 100 W

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-DIR 300-1000

Quickly identify the correct ordering code.

PRO-DIR 300-1000
Electrical
Model
PRO-DIR 300-1000-3 dB-N(f)PRO-DIR 300-1000-6 dB-N(f)PRO-DIR 300-1000-10 dB-N(f)
Frequency 300 – 1000 MHz
Max. Input Power 100 W
Coupling
3 dB6 dB10 dB
Impedance 50 Ω
Nominal Divider Loss
3 dB1.25 dB0.45 dB
Total Loss
< 4.0 dB< 2.0 dB< 1.0 dB
Isolation
> 23 dB> 26 dB> 30 dB
Input VSWR < 1.5:1
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP64
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions Approx. 200 x 75 x 23 mm / 7.87 x 2.95 x 0.91 in.
Weight Approx. 0.45 kg / 0.99 lb.
Mounting 5.3 mm dia. (four holes)
  • 100 W Directional Coupler with 3 dB, 6 dB or 10 dB coupling covering the 300 – 1000 MHz band.
  • Excellent high power performance.
  • Very low insertion loss over the entire frequency range.

MOUNTING DETAILS

Model Product No. Additional Information Add To Quote

PRO-DIR 300-1000-3 dB-N(f)

 210001602 COUPLING: 3 dB

PRO-DIR 300-1000-6 dB-N(f)

 210001535 COUPLING: 6 dB

PRO-DIR 300-1000-10 dB-N(f)

 210001601 COUPLING: 10 dB
