PRO-DIR 380-520-OD-…

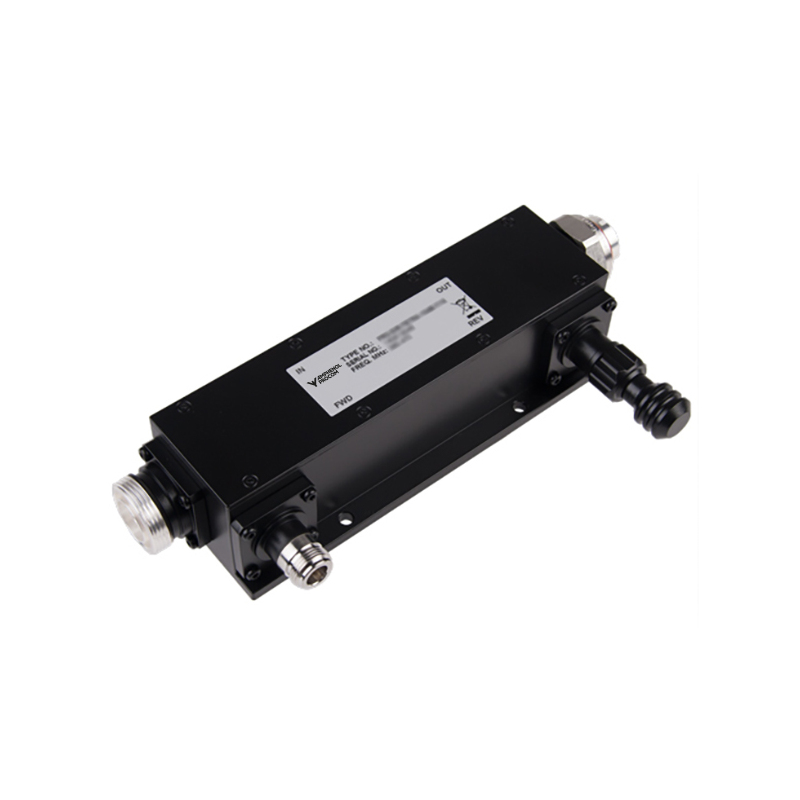

Directional Coupler 100 W

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-DIR 380-520-OD-...

Quickly identify the correct ordering code.

PRO-DIR 380-520-OD-…
Electrical
Model
PRO-DIR 380-520-OD- 10 dBPRO-DIR 380-520-OD- 20 dBPRO-DIR 380-520-OD- 30 dB
Frequency 380 – 520 MHz
Max. Input Power 100 W
Coupling
10 dB ±1 dB20 dB ±1 dB30 dB ±1 dB
Impedance 50 Ω
Total Loss
< 0.8 dB< 0.3 dB< 0.2 dB
Isolation
> 30 dB> 40 dB> 50 dB
Passive Intermodulation -140 dBc
Input VSWR < 1.25:1
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP65
Mechanical
Connector Torque 25 – 30 Nm max.
Compliance RoHS, IP65
Connection(s) Input : 7/16 (f)
Output : 7/16 (m)
FWD/REV : N (f)
Historic Brand Amphenol Procom
Dimensions Approx. 175 x 68 x 46.5 mm / 6.89 x 2.68 x 1.83 in.
Tools Torque wrench and a 24 mm wrench for back stop
Weight Approx. 1 kg / 2.20 lb.
Mounting 5.2 mm / 0.20 in. dia. (4 holes)
  • 100 W Directional Coupler with 10, 20, or 30 dB coupling covering 380 – 520 MHz.
  • Excellent high-power performance.
  • Very low VSWR and insertion loss over the entire frequency range.
  • Suitable for outdoor use (OD).

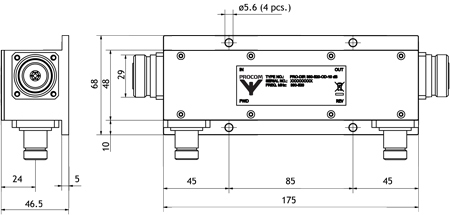

MOUNTING DETAILS

Model Product No. Additional Information Add To Quote

PRO-DIR 380-520-OD-10 dB

 200002332 COUPLING: 10 dB

PRO-DIR 380-520-OD-20 dB

 210001661 COUPLING: 20 dB

PRO-DIR 380-520-OD-30 dB

 210001662 COUPLING: 30 dB
