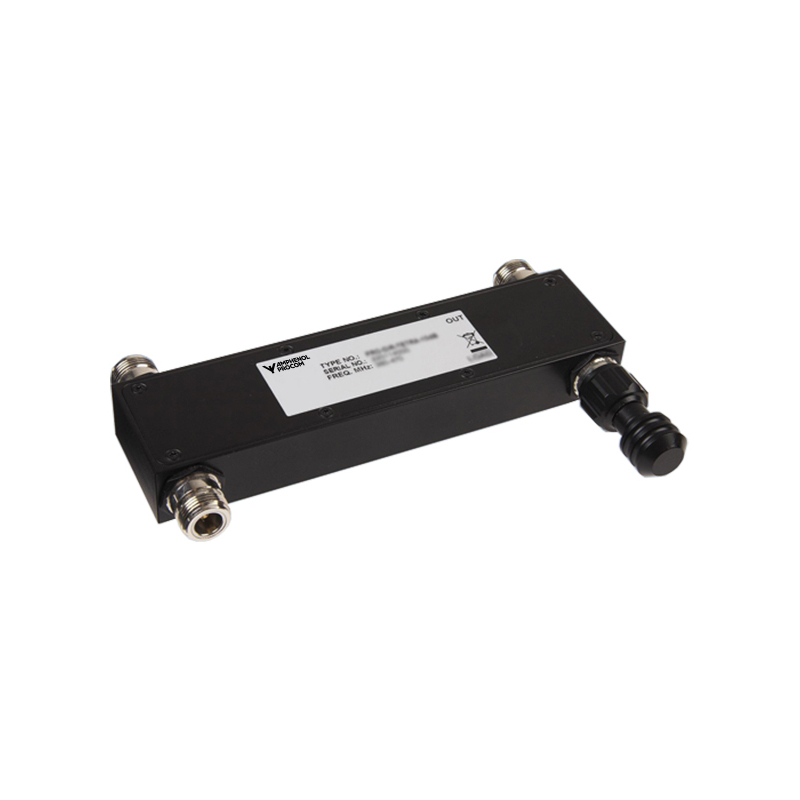

PRO-DIR 80-200

Directional Coupler 100 W

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-DIR 80-200

Quickly identify the correct ordering code.

PRO-DIR 80-200
Electrical
Model
PRO-DIR 80-200-10 dB-N(f)PRO-DIR 80-200-20 dB-N(f)
Frequency 80 – 200 MHz
Max. Input Power 100 W
Coupling
112 – 170 MHz : 10 dB -1.5 / +0.5 dB
80 – 200 MHz : 10 dB ± 1.5 dB112 – 170 MHz : 20 dB -1.5 / +0.5 dB
80 – 200 MHz : 20 dB ± 1.5 dB
Impedance 50 Ω
Total Loss
< 0.8 dB< 0.3 dB
Isolation
> 25 dB> 40 dB
Input VSWR < 1.3:1
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP64
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 165 x 75 x 23 mm / 6.50 x 2.95 x 0.91 in.
Weight Approx. 0.375 kg / 0.83 lb.
Mounting 4 mm dia. (4 holes)
  • 100 W Directional Coupler with 10 dB or 20 dB coupling covering
  • the 80 – 200 MHz band.
  • Excellent high power performance.
  • Very low VSWR and insertion loss over the entire frequency range.
  • The directional coupler is delivered with standard 3W load.

TYPICAL RESPONSE CURVE 20 dB

MOUNTING DETAILS

BLOCK DIAGRAM

Model Product No. Additional Information Add To Quote

PRO-DIR 80-200-10 dB-N(f)

 210002237 COUPLING: 10 dB

PRO-DIR 80-200-20 dB-N(f)

 210002238 COUPLING: 20 dB

Login required

You need to be logged in into your account to view downloadable documents.

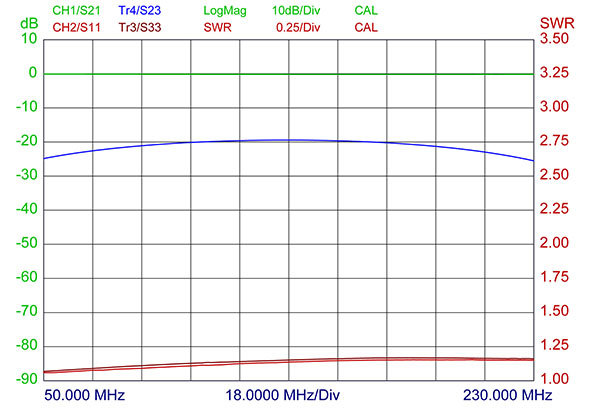

Typical Response curves 20 dB

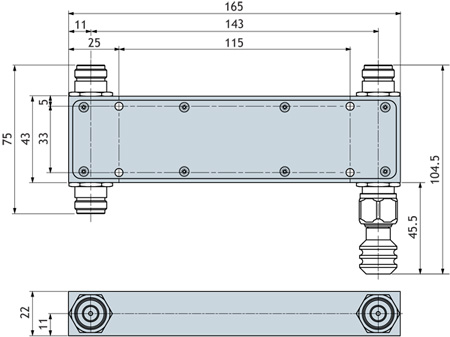

Mounting Details

PRO DIR BOX Hole with load

All dimensions are given in mm.

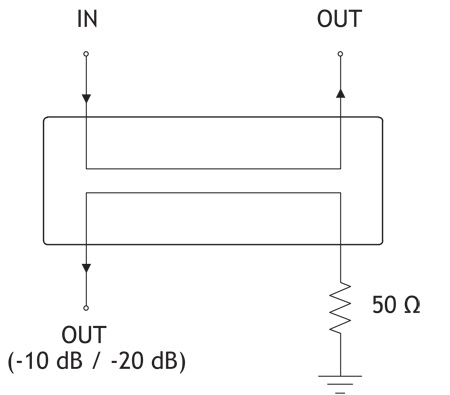

Block Diagram

PRO DIR Diagram 10 20 dB GB
