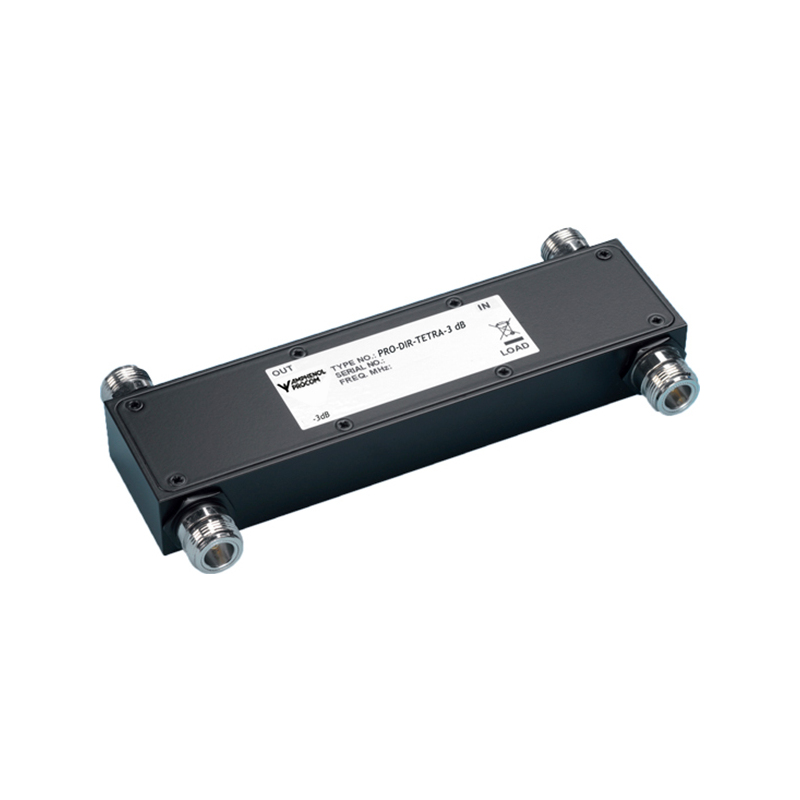

PRO-DIR TETRA-3 dB

Directional Coupler 300 W

Find Out More
Data Sheet
CE Certification

Other Files

PRO-DIR TETRA-3 dB
Electrical
Model PRO-DIR TETRA-3 dB
Frequency 380 – 450 MHz
Max. Input Power 300 W
Impedance 50 Ω
Total Loss < 4.0 dB
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Compliance RoHS, IP66
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions Approx. 165 x 75 x 23 mm /
6.50 x 2.95 x 0.91 in.
Weight Approx. 0.4 kg / 0.88 lb.
  • 300 W Directional Coupler with 3 dB coupling covering the
  • TETRA band 380 – 450 MHz.
  • Excellent high-power performance.
  • Low VSWR and insertion loss over the entire frequency range.

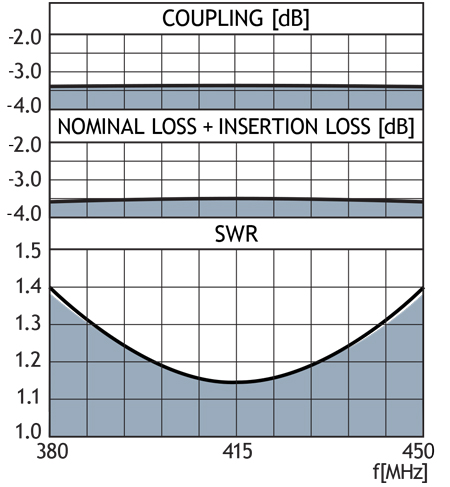

TYPICAL RESPONSE CURVES

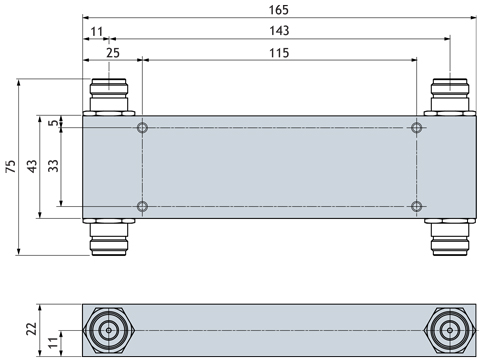

MOUNTING DETAILS

Model Product No. Add To Quote
Directional Coupler 300 W 210001702
