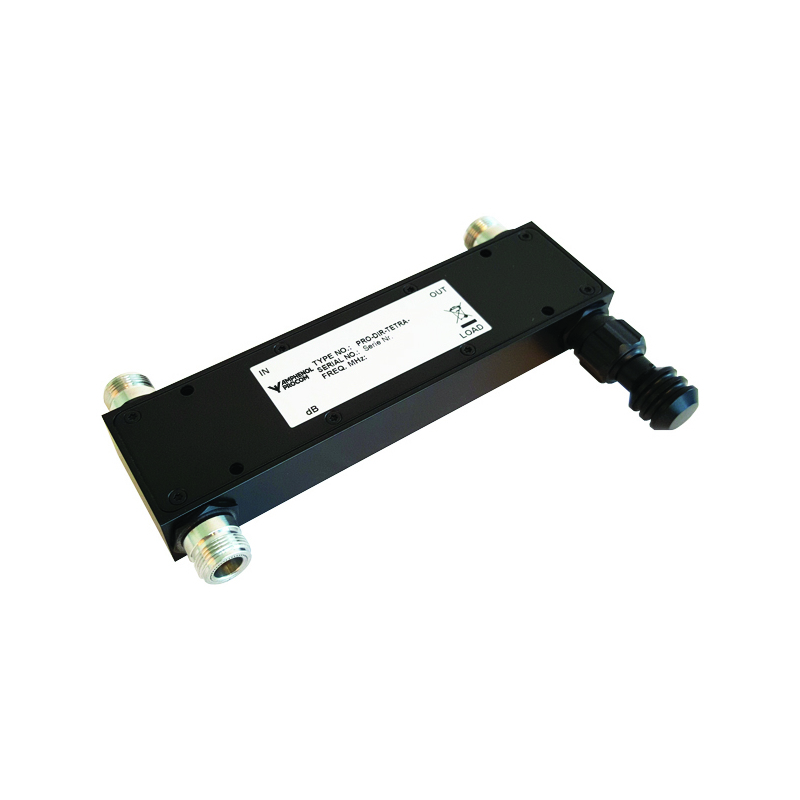

PRO-DIR TETRA-…
Electrical
Model PRO-DIR TETRA-…
Frequency 380 – 520 MHz
Max. Input Power 100 W
Coupling
10 dB ± 1 dB20 dB ± 1 dB30 dB ± 1 dB
Impedance 50 Ω
Nominal Divider Loss
0.5 dB0.04 dB0.004 dB
Total Loss
< 0.8 dB< 0.3 dB< 0.2 dB
Isolation
> 30 dB> 40 dB> 50 dB
VSWR < 1.25:1 (all ports)
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Compliance RoHS, IP64
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 165 x 75 x 23 mm /
6.50 x 3.00 x 0.91 in.
Weight Approx. 0.375 kg / 0.83 lb.
  • 100 W Directional Coupler with 10 dB, 20 dB or 30 dB coupling covering 380 – 520 MHz.
  • Excellent high power performance.
  • Very low VSWR and insertion loss over the entire frequency range.
  • The directional coupler is delivered with standard 3 W load.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

PRO-DIR TETRA-10 dB

 210001025 PRO-DIR TETRA-10 dB

PRO-DIR TETRA-20 dB

 210001026 PRO-DIR TETRA-20 dB

PRO-DIR TETRA-30 dB

 210001027 PRO-DIR TETRA-30 dB

Login required

You need to be logged in into your account to view downloadable documents.

Typical Response curves

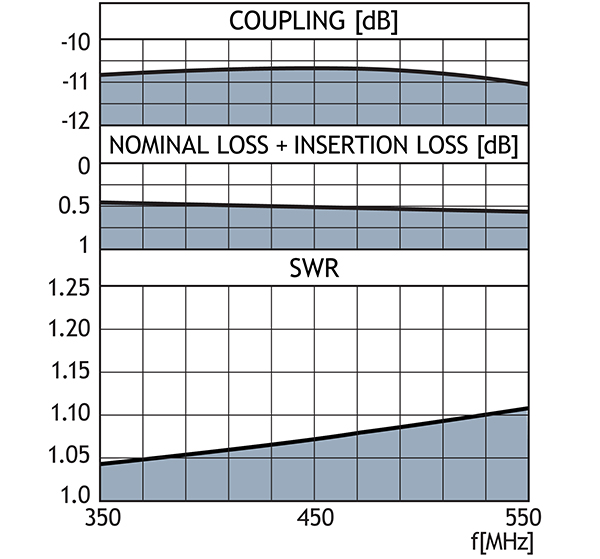

10 dB

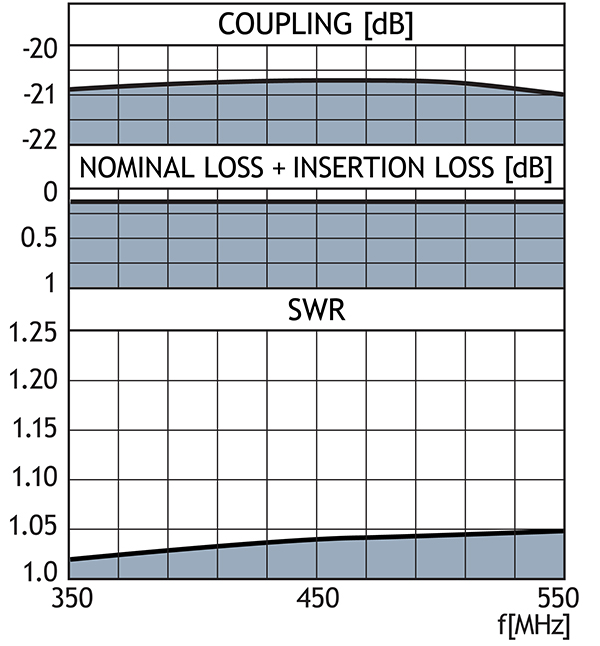

20 dB

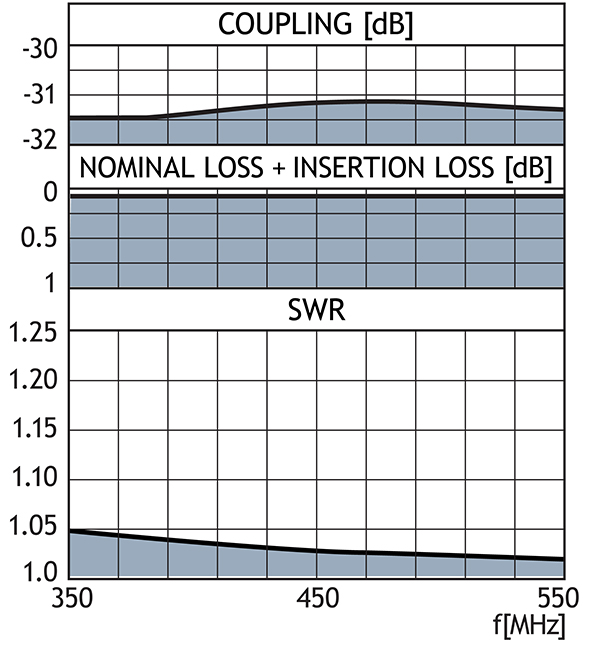

30 dB

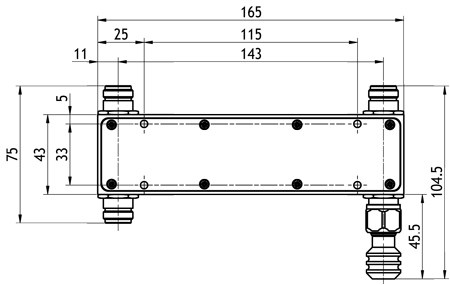

Mounting Details

PRO-DIR-TETRA-mounting-load

All dimensions are given in mm.
