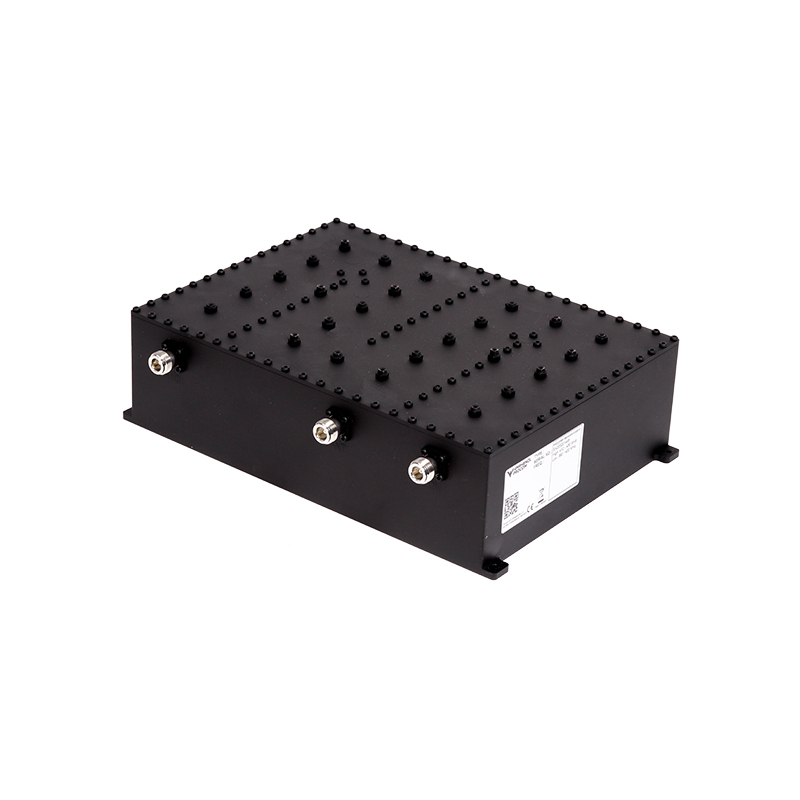

PRO-DPBP 380-400/410-430

Duplex Band-Pass Filter with 2 x 20 MHz bandwidth, used for duplexing the TETRA bands 380 – 400 MHz & 410 – 430 MHz

Find Out More
Data Sheet
CE Certification

Other Files

PRO-DPBP 380-400/410-430
Electrical
Model PRO-DPBP 380-400/410-430
Frequency Low : 380 – 400 MHz
Height : 410 – 430 MHz
Max. Input Power 200 W
Channel Spacing 10 MHz
Insertion Loss ≤ 0.7 dB (typ. ≤ 0.5 dB)
DC Stop Yes: OC (Open Circuit)
Impedance 50 Ω
Isolation Rx – Tx > 60 dB (typ. > 63 dB)
Isolation Tx – Rx > 60 dB (typ. > 63 dB)
VSWR ≤ 1.5:1 (typ. ≤ 1.3:1) in all ports
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 219.6 x 218.2 (excl. conn.) x
105 mm (incl. adjusting screw) /
12.58 x 8.59 x 4.13 in.
Weight Approx. 6.6 kg / 14.55 lb.
  • The Duplex Band-Pass Filter PRO-DPBP 380-400/410-430 is designed to combine a Public safety TETRA network 380 – 400 MHz and a Civil/Private TETRA network 410 – 430 MHz, into one common Antenna.
  • The DPBP Filter benefit from using 2 x 6 ¼ λ cavitiy resonators build into a compact, strong aluminium housing.
  • The filter i silver plated inside, which ensures a very low insertion loss.
  • Built-in DC stop between all ports.
  • The compact filter can be fitted into a 19” mounting tray, 3 HU in height, 300 mm in depth.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Duplex Band-Pass Filter with 2 x 20 MHz bandwidth, used for duplexing the TETRA bands 380 – 400 MHz & 410 – 430 MHz 200002876

Login required

You need to be logged in into your account to view downloadable documents.

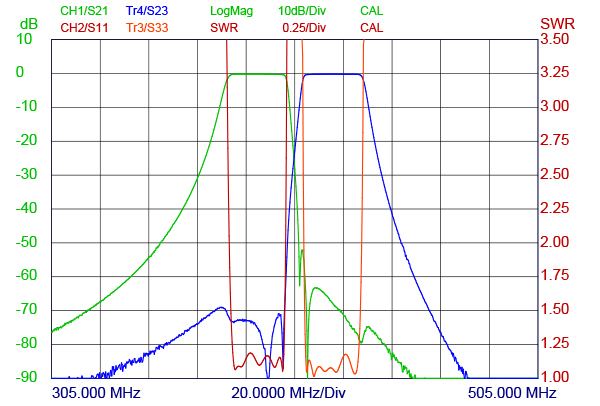

Typical Response Curve

PRO DPBP 380 400!410 430 Curve

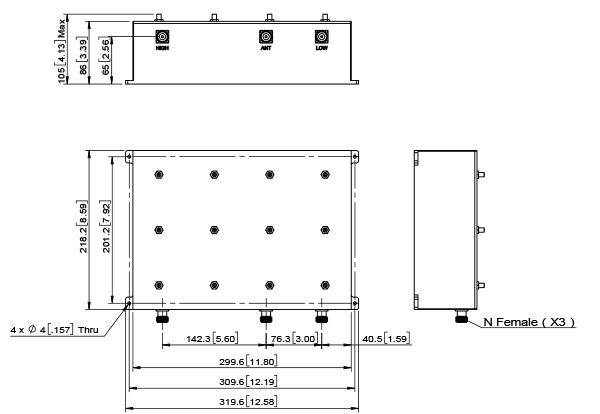

Mounting Details

PRO DPBP 380 400!410 430 Holeplacing

All dimensions are given in mm [in.]
