PRO-DPBP 380-EXT

Duplex Band-Pass Filter, PIM rated, for the TETRA Public Safety/Mission Critical extended band

Find Out More
Data Sheet
CE Certification

Other Files

PRO-DPBP 380-EXT
Electrical
Model PRO-DPBP 380-EXT
Frequency Rx: 380 – 386.5 MHz
Tx: 390 – 396.5 MHz
Max. Input Power ≤ 200 W (RMS)
Peak Input Power ≤ 800 W
Spacing Tx-Rx 3.5 MHz
Insertion Loss Tx and Rx: ≤ 1.5 dB
DC Stop Yes: OC (Open Circuit)
Impedance 50 Ω
Isolation Rx – Tx ≥ 60 dB
Isolation Tx – Rx ≥ 60 dB
VSWR < 1.3:1 (> 18 dB Return loss)
Bandwidth (Tx and Rx) 6.5 MHz
Passive Intermodulation ≤ -150 dBc (@ 2 x 20 W)
Environmental
Environmental -30 °C to +60 °C
Mechanical
Connection(s) 7/16 DIN(f)
Historic Brand Amphenol Procom
Dimensions 300 x 142.5 (incl. conn.) x 87 mm (incl. adjust. screws) / 11.8 x 5.6 x 3.4 in.
Fill in 2 HU in 19″ rack mounted on 19″ front plate.
Connectors on rear side
Weight Approx. 2.6 kg / 5.7 lb.

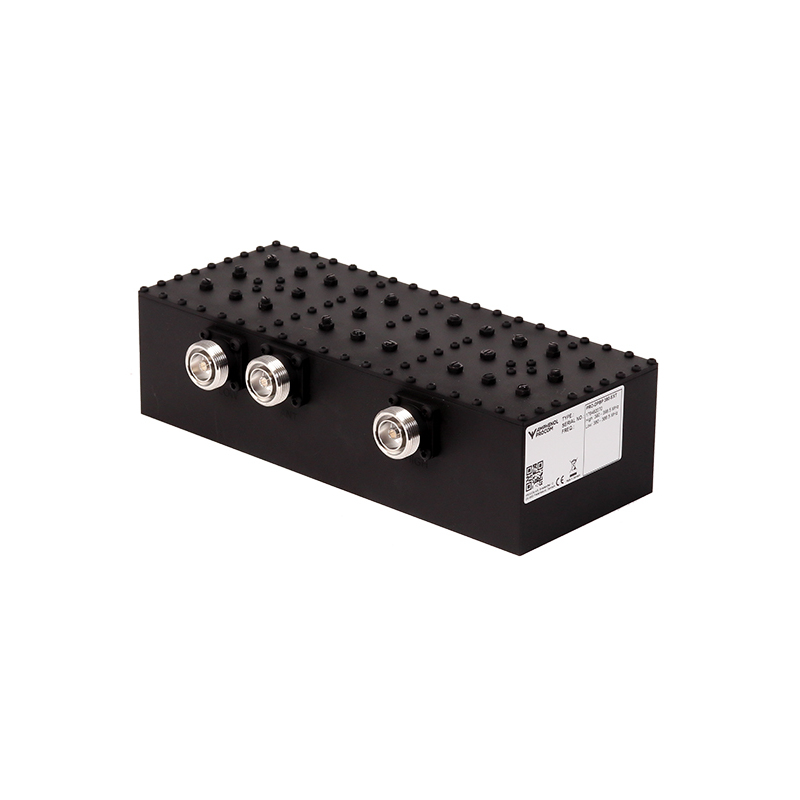

  • The PRO-DPBP 380-EXT is a 2 x 6 resonator high quality Duplex Band Pass filter designed to combine the TETRA extended Tx and Rx band (2 x 6.5 MHz) to one common antenna.
  • The high performance filter design secures an improved isolation between the Tx and the Rx TETRA band. It is common used in high power Tetra base stations.
  • A pure silver-plating inside the filter ensures a very low PIM and insertion loss.
  • The filter uses reduced-length ¼ λ cavities in a compact strong aluminium housing.
  • The compact filter will fill in 2 HU in height, 142.5 mm in depth, in a 19″ rack, when mounted on a 19″ x 2 HU front plate.
  • When mounted in a 19” mounting tray, 300 mm in depth, the total height will be 3 HU.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Duplex Band-Pass Filter, PIM rated, for the TETRA Public Safety/Mission Critical extended band 200002817

Login required

You need to be logged in into your account to view downloadable documents.

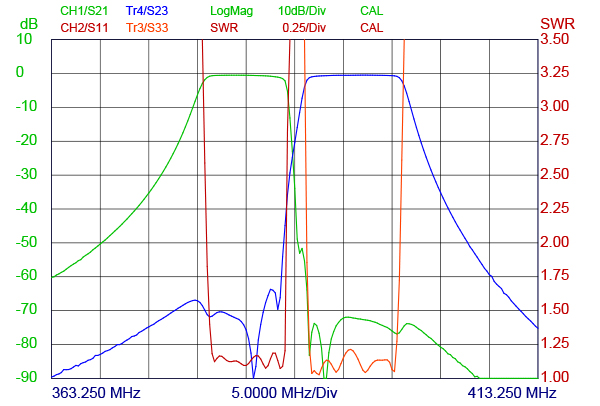

Typical response curve

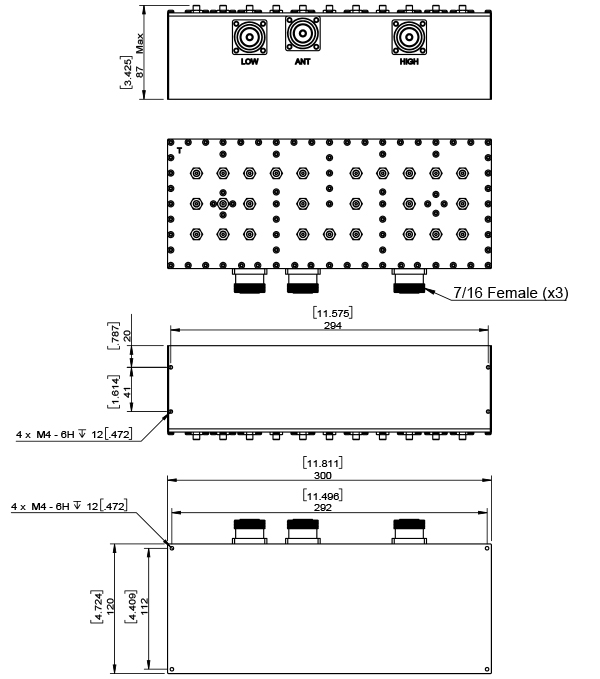

Mounting Details

PRO DPBP 380 EXT Holeplacing

All dimensions are given in mm [in.]
