PRO-HDAR150-2SI

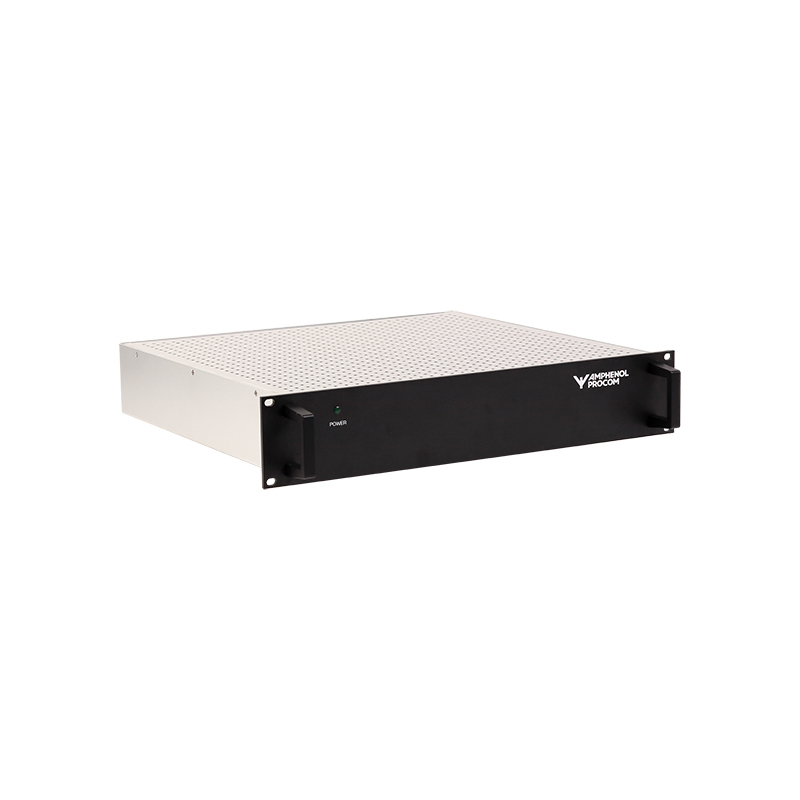

Ultra Compact 2-channel VHF 150 MHz Tx/Rx Combiner

Find Out More
Data Sheet
CE Certification

Other Files

PRO-HDAR150-2SI
Electrical
Model PRO-HDAR150-2SI
Frequency L : 136 – 156 MHz
H : 152 – 175 MHz
Max. Input Power 50 W (per channel)
Max. Tx-Tx Spacing, Δ Tx 1.5 MHz
Min. Tx-Rx Spacing 4 MHz
Spacing Tx-Rx ≥ 4 MHz
Spacing Tx-Tx ≤ 1.5 MHz
Insertion Loss ≤ 5.4 dB
Isolation Tx on Frequency Rx Rx – Rx spacing < 0.5 MHz : > 80 dB
Rx – Rx spacing > 0.5 MHz : > 60 dB
Isolation Rx on Frequency Tx Tx – Tx spacing < 0.5 MHz : > 80 dB
Tx – Tx spacing > 0.5 MHz : > 60 dB
Insertion Loss Tx Path < 5.0 dB
Impedance 50 Ω
Ant-Tx Isolation > 40 dB @ 25 °C
Gain Rx PATH : 1 dB ±1 dB (factory set)
Isolation Tx-Tx > 60 dB @ 25 °C
Isolation Tx – Rx > 80 dB for Tx – Tx spacing < 0.5 MHz
> 60 dB for Tx – Tx spacing > 0.5 MHz
Isolation Rx-Rx > 20 dB
VSWR ≤ 1.5:1
LNA Noise Figure < 3.5 dB
Gain Rx 1 dB ±1 dB (factory set)
No. of channels 2
Environmental
Operating temperature range -30 °C to +60 °C
Storage temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 19″ x 2 HU
483 x 89.9 mm
19.02 x 3.54 in.
– see drawing for depth of tray
Weight Approx. 7.6 kg / 16.76 lb.
  • An integrated single tray combining solution housing a 2-channel hybrid Tx hybrid combiner, duplex filter, active 2-channel Rx multicouplers and preselector.
  • Minimal 19″ rack space required – only 2 HU in a 19″ rack.
  • Built-in power supply suitable for 115/230 VAC.
  • Compatible with digital 6.25 kHz channel spacing.
  • Single Tx isolators fitted as standard.
  • Please specify all Tx/Rx frequencies when ordering.

  • Please Note:
    Power cable is not included, must be ordered separately, see Accessories.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Ultra Compact 2-channel VHF 150 MHz Tx/Rx Combiner PRO-HDAR150-2

Login required

You need to be logged in into your account to view downloadable documents.

Ordering Designations

Contact for system-specific product No.

Use the guide below to make the name of the PRO-HDAR150-2SI you would like to buy. Remember to buy the Power Adaptor separately if needed.

ModelDuplex Filter Freq. BandDuplex filter Bandwidth (BW) and Tx/Rx SpacingMax. input power
PRO-HDAR150-2SI Low : 136 – 156 MHz = L
High : 152 – 175 MHz = H		 1.5-4/6-1.5 *
1.5-6/8-1.5
1.5-8/10-1.5


* Max. Low BW: 1.5 MHz- Tx/Rx spacing: 4 to 6 MHz –
Max. High BW: 1.5 MHz = 1.5-4/6-1.5

 50 W per channel
Naming Example
PRO-HDAR150-2SI H /1.5-4/6-1.5 /50W

Naming Example: PRO-HDAR150-2SI H/1.5-4/6-1.5/50W

Accessories
ModelProduct No.
Power Cable EU , with Ground 210002646
Power Cable UK , with Ground 210002647
Power Cable US , with Ground 210002648
Block Diagram

PRO HDAR 2 block diagram

Mounting Details

PRO HDAR 2 holeplacing

All dimensions are given in mm [in.]

EU and UK Declaration of Conformity

Hereby Amphnol Procom declare that the product type PRO-HDAR150-2SI is in compliance with EU Directive 2014/53/EU and the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-PRO-HDAR150.pdf
