PRO-HDAR150-3

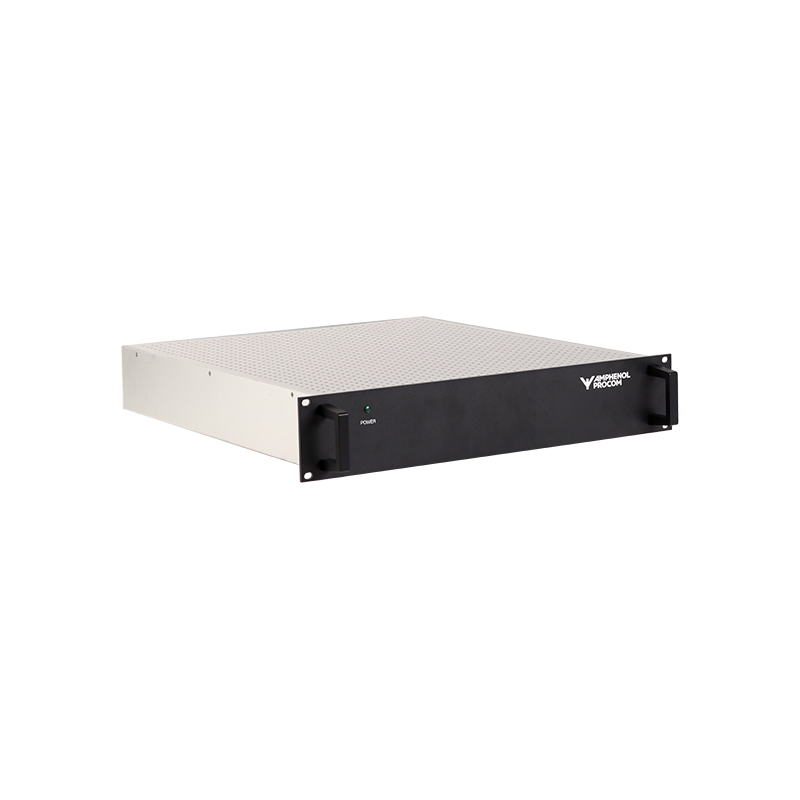

Ultra Compact 150 MHz Tx/Rx Combiner System 3-channel 2 HU 19″ single tray

Find Out More
Data Sheet
CE Certification

Other Files

PRO-HDAR150-3
Electrical
Model PRO-HDAR150-3 …
Frequency l : 136 – 156 MHz
h : 152 – 175 MHz
Max. Input Power 50 W (per channel)
Max. Tx-Tx Spacing, Δ Tx 1.5 MHz
Min. Tx-Rx Spacing 4 MHz
Isolation Tx on Frequency Rx Rx – Rx spacing < 0.5 MHz : > 80 dB
Rx – Rx spacing > 0.5 MHz : > 60 dB
Isolation Rx on Frequency Tx Tx – Tx spacing < 0.5 MHz : > 80 dB
Tx – Tx spacing > 0.5 MHz : > 60 dB
Insertion Loss Tx Path < 7.0 dB
Impedance 50 Ω
Ant-Tx Isolation > 40 dB @ 25 °C
Gain Rx PATH : 1 dB ±1 dB (factory set)
Isolation Tx-Tx > 70 dB
Isolation Rx-Rx > 20 dB
VSWR ≤ 1.5:1
LNA Noise Figure < 3.5 dB
No. of channels 3
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Procom
Dimensions 19″ x 2 HU
483 x 89.9 mm
19.02 x 3.54 in.
– see drawing for depth of tray
Weight Approx. 9.7 kg / 21.38 lb.
  • An integrated single tray combining solution housing a 3-channel hybrid Tx hybrid combiner, duplex filter, active 3-channel Rx multicouplers and preselector.
  • Minimal 19″ rack space required – only 2 HU.
  • Built-in power supply 115/230 VAC.
  • Compatible with digital 6.25 kHz channel spacing.
  • Single Tx isolators fitted as standard.
  • Please specify all Tx/Rx frequencies when ordering.
  • Please Note:
  • Power cable is not included, must be ordered separately, see Accessories.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Ultra Compact 150 MHz Tx/Rx Combiner System 3-channel 2 HU 19″ single tray PRO-HDAR150-3

Login required

You need to be logged in into your account to view downloadable documents.

Ordering Designations

Contact for system-specific product No.

Use the guide below to make the name of the PRO-HDAR150-3 you would like to buy. Remember to buy the Power Adaptor separately if needed.

ModelCombiner Freq. BandDuplex filter Bandwidth (BW) and Tx/Rx SpacingHybrid Tx frequencies
PRO-HDAR150-3 Low : 138 – 156 MHz = L
High : 152 – 175 MHz = H		 1.5-4/6-1.5 *
1.5-6/8-1.5
1.5-8/10-1.5

* Max. Low BW: 1.5 MHz- Tx/Rx spacing: 4 to 6 MHz –
   Max. High BW: 1.5 MHz = 1.5-4 / 6-1.5		 130 – 142 MHz = 1
138 – 150 MHz = 2
146 – 158 MHz = 3
154 – 166 MHz = 4
162 – 174 MHz = 5
170 – 182 MHz = 6
Naming Example
PRO-HDAR150-3 H /1.5-4/6-1.5/ 3

Naming Example: PRO-HDAR150-3 H/1.5-4/6-1.5/3

Accessories
 ModelProduct No.
Power Cable EU , with Ground 210002646
Power Cable UK , with Ground 210002647
Power Cable US , with Ground 210002648
Block Diagram

PRO HDAR 3 block diagram

Mounting Details

PRO HDAR 3 holeplacing

All dimensions are given in mm [in.]



EU and UK Declaration of Conformity

Hereby Amphnol Procom declare that the product type PRO-HDAR150-3 is in compliance with EU Directive 2014/53/EU und die UK Radio Equipment Regulations 2017 (S.I. 2017 Nr. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-PRO-HDAR-2HU.pdf
