PRO-HDAR450-3DI-BB

Ultra Compact Broadband 3 ch. UHF450 Tx/Rx Combiner System for the PMR/LTE band 410-470 MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-HDAR450-3DI-BB

Quickly identify the correct ordering code.

PRO-HDAR450-3DI-BB
Electrical
Model PRO-HDAR450-BB-3DI
Frequency 410 – 470 MHz
Max. Input Power 50 W (per channel)
Max. Tx-Tx Spacing, Δ Tx 5 MHz
Max. Rx-Rx Spacing, Δ Rx 5 MHz
Insertion Loss Tx Path < 8.5 dB
Impedance 50 Ω
Duplex Spacing 5 – 15 MHz
Ant-Tx Isolation > 65 dB
Gain 1 dB ±1 dB (Rx path, factory set)
Isolation Tx-Tx > 80 dB
Isolation Tx – Rx > 80 dB (Both ways)
Isolation Rx-Rx > 20 dB
VSWR ≤ 1.5:1 (Tx band) / ≤ 1.75:1 (Rx Band)
LNA Noise Figure < 3.5 dB
Effective Noise Figure all outputs < 5 dB
No. of channels 4
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 19″ x 2 HU
483 x 89.9 mm
19.02 x 3.54 in.
– see drawing for depth of tray
Weight 10.8 kg / 23.81 lb.
  • This integrated compact single tray combining solution is able to connect the Tx and Rx channels from 3 radio-repeaters into just one antenna.
  • The combiner is standard tuned broad/wide-band up to a bandwidth of 5 MHz in the both transmit and receive band.
  • It means the operator can at any time change channel frequencies in the concerned bands without any retuning of the combiner.
  • The high performance Duplex Bandpass Filter isolates any noise interference on the receiving side, occuring from the transmitters themselves or unwanted high power signals from outside.
  • Minimal 19″ rack space required – only 2HU (88.9 mm) See more in Mounting Details
  • The very compact broadband 50 W PRO-HDAR450-3DI-BB can also be delivered in 2 or 4 channel 2HU versions. Please ask for availability.

No content found

This product doesn’t have any diagrams yet.

Model Product No. FrequencyAdditional Information Add To Quote

PRO-HDAR450-BB-3/410-425/5-5-5/DI/50W

 Contact_113 Low: 410 – 415 MHz / High: 420 – 425 MHz –

PRO-HDAR450-BB-3/415-430/5-5-5/DI/50W

 Contact_114 Low: 415 – 420 MHz / High: 425 – 430 MHz –

PRO-HDAR450-BB-3/420-435/5-5-5/DI/50W

 Contact_115 Low: 420 – 425 MHz / High: 430 – 435 MHz –

PRO-HDAR450-BB-3/425-440/5-5-5/DI/50W

 Contact_116 Low: 425 – 430 MHz / High: 435 – 440 MHz –

PRO-HDAR450-BB-3/430-445/5-5-5/DI/50W

 Contact_117 Low: 430 – 435 MHz / High: 440 – 445 MHz –

PRO-HDAR450-BB-3/435-450/5-5-5/DI/50W

 Contact_118 Low: 435 – 440 MHz / High: 445 – 450 MHz –

PRO-HDAR450-BB-3/440-455/5-5-5/DI/50W

 Contact_119 Low: 440 – 445 MHz / High: 450 – 455 MHz –

PRO-HDAR450-BB-3/445-460/5-5-5/DI/50W

 Contact_120 Low: 445 – 450 MHz / High: 455 – 460 MHz –

PRO-HDAR450-3DI-BB/450-465/5-5-5/50W

 220000736 Low: 450 – 455 MHz / High: 460 – 465 MHz n/a

PRO-HDAR450-BB-3/455-470/5-5-5/DI/50W

 Contact_121 Low: 455 – 460 MHz / High: 465 – 470 MHz –

PRO-HDAR450-3DI-BB/410-425/5-5-5/50W

 Contact_77 Low: 410 – 415 MHz / High: 420 – 425 MHz n/a

PRO-HDAR450-3DI-BB/415-430/5-5-5/50W

 Contact_78 Low: 415 – 420 MHz / High: 425 – 430 MHz n/a

PRO-HDAR450-3DI-BB/420-435/5-5-5/50W

 Contact_79 Low: 420 – 425 MHz / High: 430 – 435 MHz n/a

PRO-HDAR450-3DI-BB/425-440/5-5-5/50W

 Contact_80 Low: 425 – 430 MHz / High: 435 – 440 MHz n/a

Login required

You need to be logged in into your account to view downloadable documents.

Typical response curve

PRO HDAR BB450 465 4 DI 50W Curve

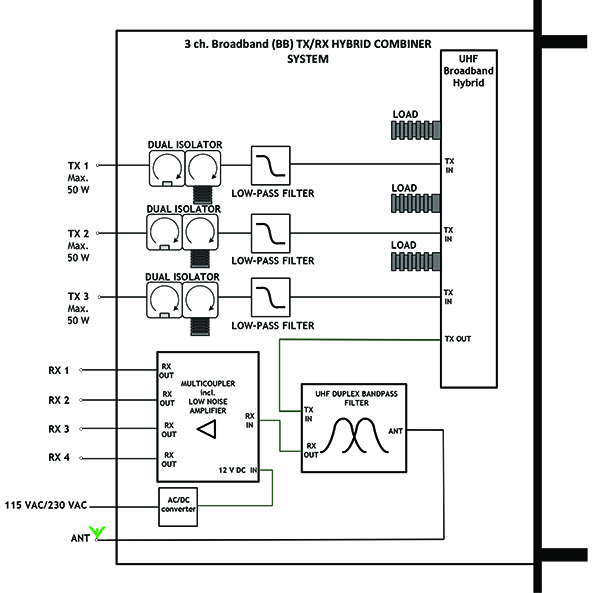

Block Diagram

PRO HDAR BB450 465 3 Block diagram

Accessories
ModelProduct No.
Power Cable EU , with Ground 210002646
Power Cable UK , with Ground 210002647
Power Cable US , with Ground 210002648
Note

Power cable is not included, must be ordered separately, see Accessories.

Mounting Details

PRO HDAR 3 holeplacing

All dimensions are given in mm [in.]

EU and UK Declaration of Conformity

Hereby Amphnol Procom declare that the product type PRO-HDAR450-3DI-BB is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-PRO-HDAR-xDI-BB-2HU.pdf
