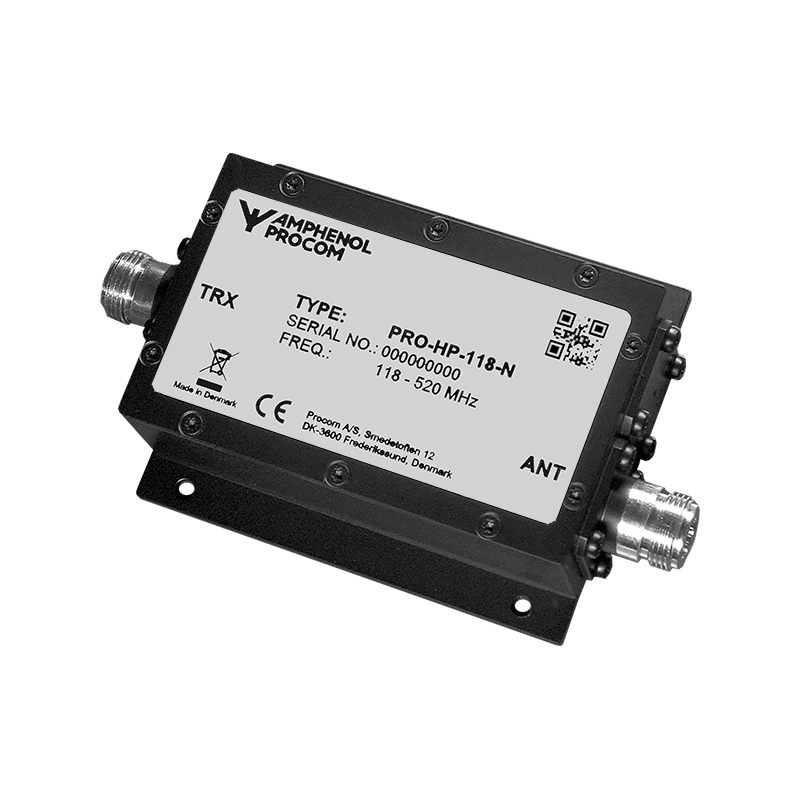

100 W HP filter for the 118 – 520 MHz range

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-HP-118-...

Quickly identify the correct ordering code.

PRO-HP-118-…
Electrical
Model PRO-HP-118-…
Frequency 0 – 520 MHz
Max. Input Power 100 W CW
30 W AM / 100 % mod.
Pass Range 118 – 520 MHz
Reject Range 0 – 108 MHz
Insertion Loss ≤ 1.0 dB
Impedance 50 Ω
Attenuation ≥ 27 dB
VSWR < 1.5:1
Environmental
Operating temperature range * -40 °C to +60 °C
Ingress Protection IP64
Mechanical
Connection(s) N(f)
Historic Brand Procom
Dimensions 133 x 80 x 31 mm / 5.24 x 3.15 x 1.22 in.
Weight Approx. 0.38 kg / 0.84 lb.
  • High Pass filter for protecting radios operating in the 118 – 520 MHz range from interference from high-power transmitters in the 0 – 108 MHz LMR and broadcast radio bands.
  • High-order Chebychev design ensures very high flage steepness with high reject band attenuation.
  • ANT port is DC grounded.
  • High Power handling capability.
  • Low insertion loss.
  • Wide temperature range.
  • Milled aluminium box ensures extraordinarily high mechanical strength.
  • The filter is coated with black vinyl to prevent corrosion.
  • N-connectors on all ports (standard).
  • Also available with SMA(f), TNC(f) or BNC(f) connector types. (See ordering designations.)

No content found

This product doesn’t have any diagrams yet.

Model Product No. Connection(s) Add To Quote

PRO-HP-118-N(f)

 200002738 N(f)

PRO-HP-118-SMA(f)

 200002743 SMA(f)

PRO-HP-118-TNC(f)

 200002744 TNC(f)

PRO-HP-118-BNC(f)

 200002745 BNC(f)

Login required

You need to be logged in into your account to view downloadable documents.

Note

* Temperature on box surface. Adequate cooling to keep max. temperature below +60° C must be provided.

Typical Response Curves

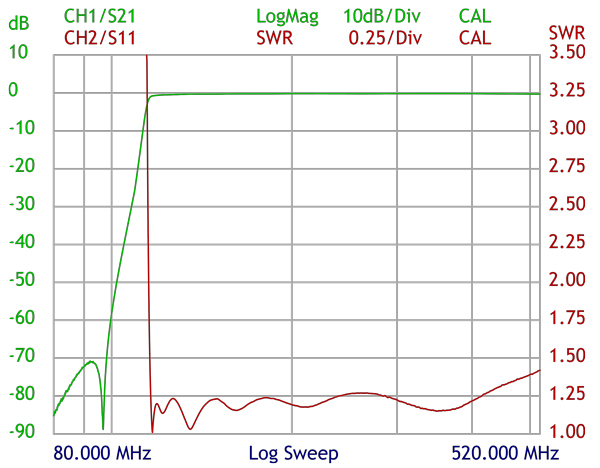

S-PARAMETERS

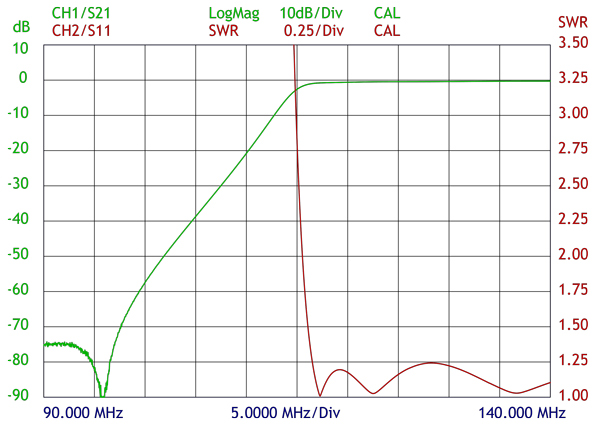

REJECT CHARACTERISTIC

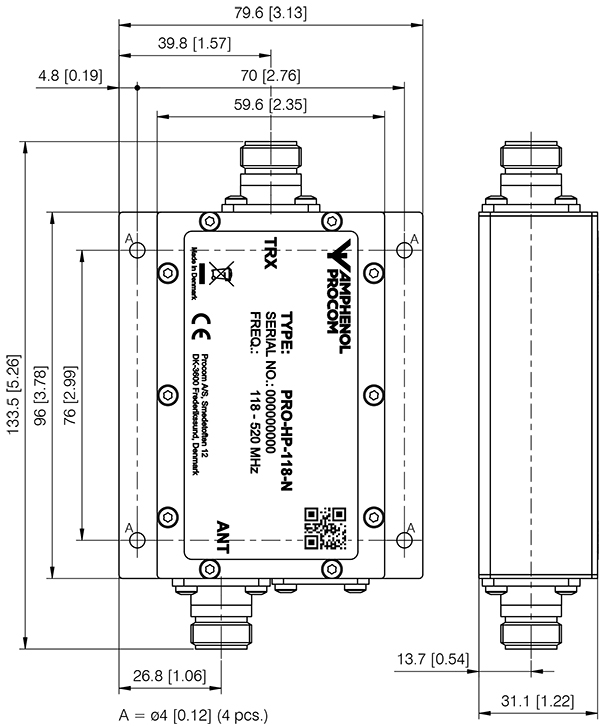

Mounting Details

PRO HP 118 Holeplacing

All dimensions are given in mm [in.]
