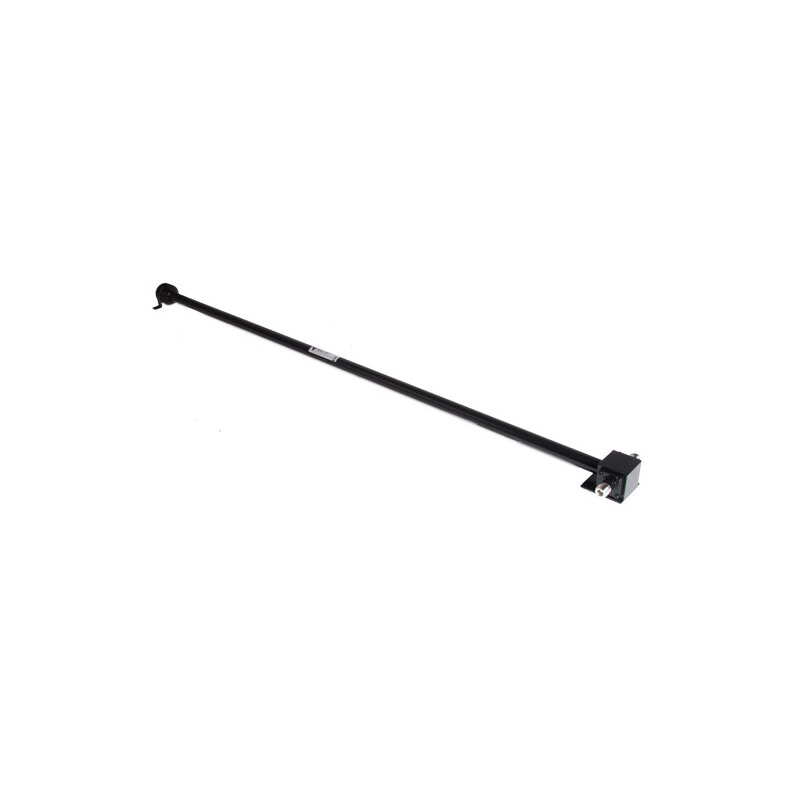

PRO-HPS… 70-470

2 and 3 Way Reactive High Power Splitters

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-HPS... 70-470

Quickly identify the correct ordering code.

PRO-HPS… 70-470
Electrical
Model
PRO-HPS2 70-470PRO-HPS3 70-470
Frequency 70 – 470 MHz
Max. Input Power 500 W
Split Ratio
1:21:3
Insertion Loss
< 3.3 dB< 5.1 dB
Impedance 50 Ω
Amplitude Balance ± 0.3 dB
Split Loss
3 dB4.8 dB
Passive Intermodulation < -155 dBc (with N-connectors)
< -160 dBc (with 7/16 DIN-connectors)
Input VSWR < 1.3:1
Environmental
Operating temperature range -30 to 60 °C
Mechanical
Compliance RoHS, IP66
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions
Approx. 1114 x 94 x 45 mm / 43.86 x 3.70 x 1.77 in.Approx. 1288 x 94 x 45 mm / 50.71 x 3.70 x 1.77 in.
Weight Approx.1.25 kg / 2.76 lb.
Mounting 4.2 mm dia. (2 pcs.)
  • 2 and 3 way high power splitter covering the 70 – 470 MHz band.
  • Excellent high power performance.
  • Low insertion loss and good impedance match.
  • Low specified PIM.
  • Power splitters are frequently used in distributed antenna systems in buildings or tunnels.
  • The power splitter splits the signal evenly and with minimal loss and reflections.
  • Application area: Antennas arrays; radiating cables and distributed antenna systems.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

PRO-HPS2 70-470-7/16(f)

 200002589 2-way splitter

PRO-HPS2 70-470-N(f)

 200002552 2-way splitter

PRO-HPS3 70-470-7/16(f)

 200002590 3-way splitter

PRO-HPS3 70-470-N(f)

 200002591 3-way splitter

Login required

You need to be logged in into your account to view downloadable documents.

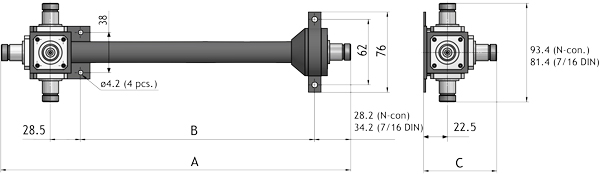

Dimensions
TYPEABC
PRO-HPS2 70-470-N(f) 1114 1033 45
PRO-HPS2 70-470-7/16(f) 1108 1033 45
PRO-HPS3 70-470-N(f) 1288 1207 45
PRO-HPS3 70-470-7/16(f) 1282 1207 45
Mounting Details

All dimensions are given in mm.

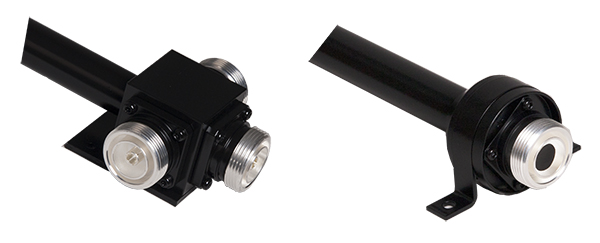

PRO HPS!... 70 470 closeupB

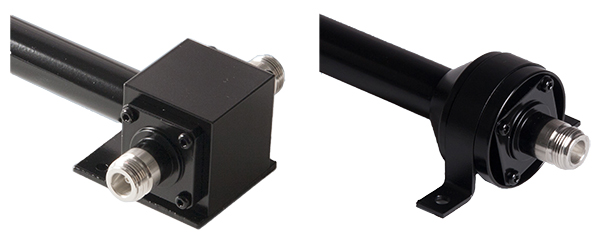

PRO HPS!... 70 470 closeupB
