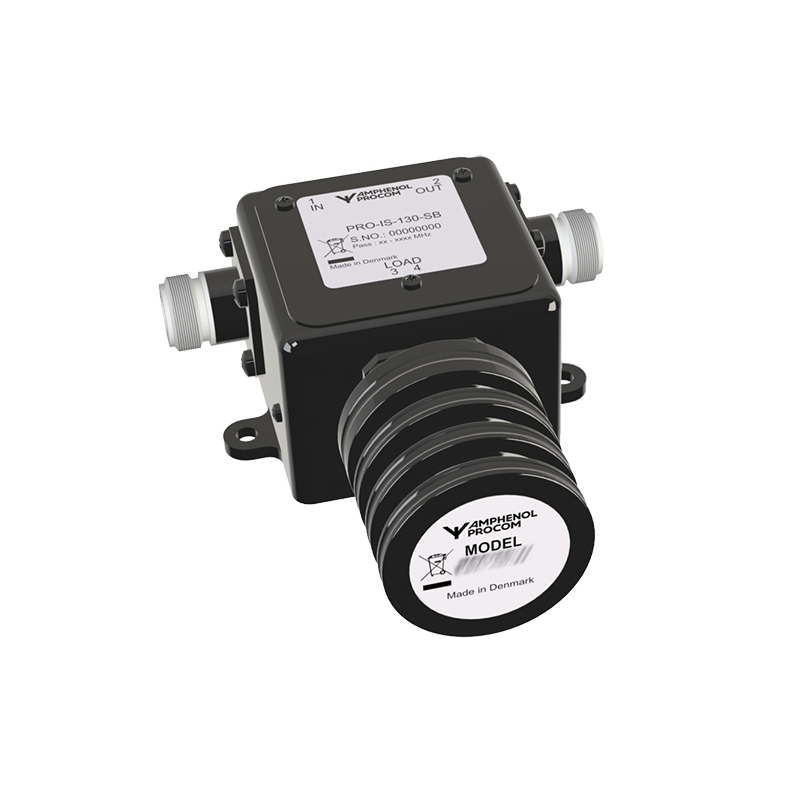

PRO-IS-130-SB

Isolator Single Broadbanded for the Air band 117 – 137 MHz

Find Out More
Data Sheet
CE Certification

Other Files

PRO-IS-130-SB
Electrical
Model PRO-IS-130-SB
Frequency 117 – 137 MHz
Max. Input Power 100 W
Insertion Loss < 0.8 dB
Impedance 50 Ω
Isolation +10 °C → +40 °C : > 20 dB
-20 °C → +55 °C : > 16 dB
VSWR ≤ 1.5:1
Environmental
Ingress Protection IP54
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions Approx. 79 x 58 x 44.25 mm (excl. conn.) /
3.11 x 2.28 x 1.68 in.
Weight Approx. 0.4 kg / 0.88 lb.
Mounting M4 mm
  • Medium power broadband single isolator covering the whole Air band 117 – 137 MHz. (No tuning required).
  • Used for isolation / protection of transmitters.
  • High frequency stability in temperature and power.
  • The standard 15 W dummy load can easily be interchanged to other values, if the reverse power is expected to exceed 15 W.
  • The isolator has black coating to prevent corrosion.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Isolator Single Broadbanded for the Air band 117 – 137 MHz 210002740

Login required

You need to be logged in into your account to view downloadable documents.

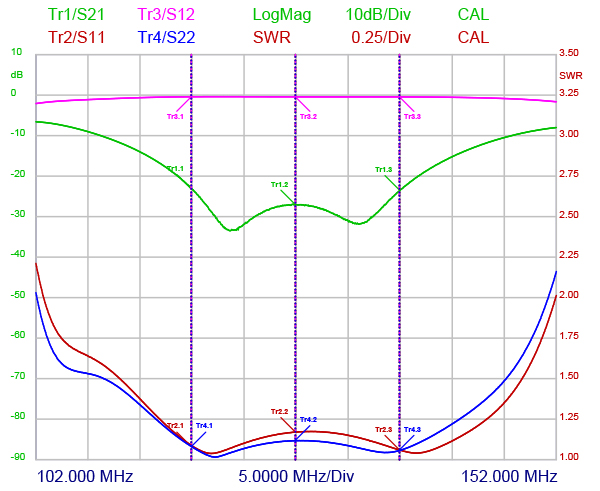

Typical Response Curve

PRO IS 130 SB Curve

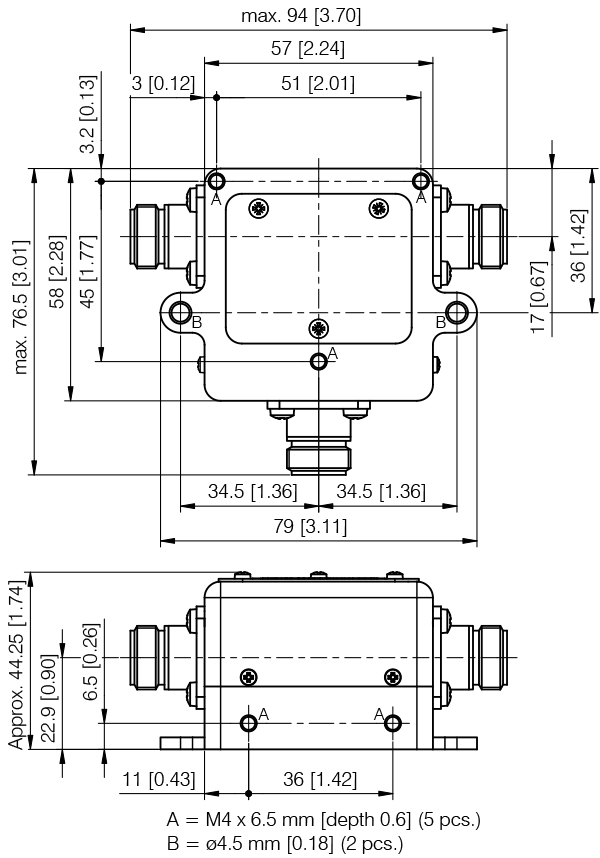

Mounting Details

PRO IS 130 SB holeplacing

All dimensions are given in mm [in.]
