PRO-IS-350-S1, PRO-IS-350-D1

Single and Dual Isolators for the 350 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-IS-350-S1, PRO-IS-350-D1

Quickly identify the correct ordering code.

PRO-IS-350-S1, PRO-IS-350-D1
Electrical
Model
PRO-IS-350-S1PRO-IS-350-D1
Frequency 340 – 380 MHz
Max. Input Power 150 W
Insertion Loss
< 0.5 dB< 1.0 dB
Impedance 50 Ω
Isolation
Typ. > 40 dB @ 25 °C
> 20 dB @ 0 – 60 °C
> 17 dB @ -10 – 0 °CTyp. > 80 dB @ 25 °C
> 40 dB @ 0 – 60 °C
> 35 dB @ -10 – 0 °C
VSWR < 1.5:1
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions
57 x 58 x 41 mm /
2.24 x 2.28 x 1.61 in.107 x 58 x 41 mm /
4.21 x 2.28 x 1.61 in.
Weight
Approx. 0.4 kg / 0.88 lb.Approx. 0.8 kg / 1.76 lb.
  • Medium power single or dual isolators for 340 – 380 MHz.
  • Used to isolate / protect of transmitters.
  • High frequency stability on temperature and power.
  • The standard 15 W dummy load can easily be interchanged to other values, if the reverse power is expected to exceed 15 W.
  • Tunable within the frequency range.
  • The isolators have black coating to prevent corrosion.

MOUNTING DETAILS FOR PRO-IS-350-S1

MOUNTING DETAILS FOR PRO-350-D1

All dimensions are given in mm [in.]

All dimensions are given in mm [in.]

TYPICAL RESPONSE CURVES FOR PRO-IS-350-S1

TYPICAL RESPONSE CURVES FOR PRO-IS-350-D1

Model Product No. Model Add To Quote

PRO-IS-350-S1

 210001171 PRO-IS-350-S1

PRO-IS-350-D1

 210001040 PRO-IS-350-D1

Login required

You need to be logged in into your account to view downloadable documents.

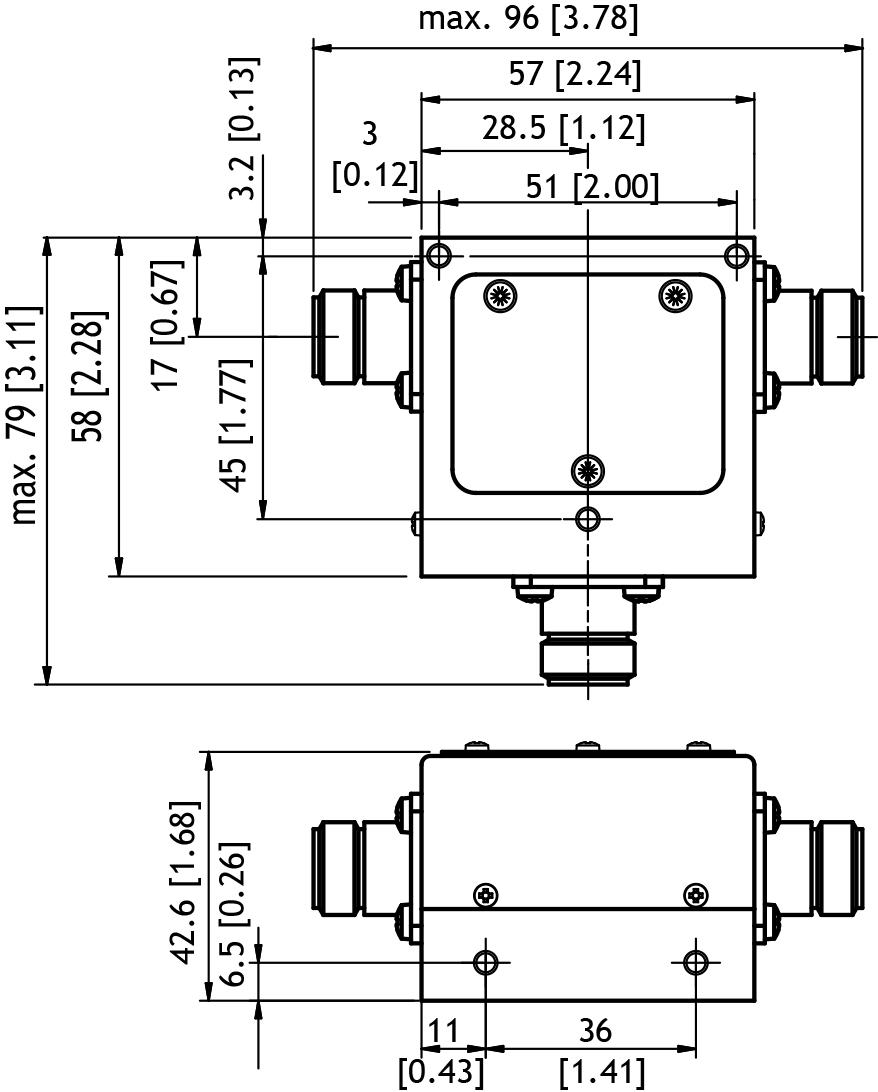

Mounting Details for PRO-IS-350-S1

All dimensions are given in mm [in.]

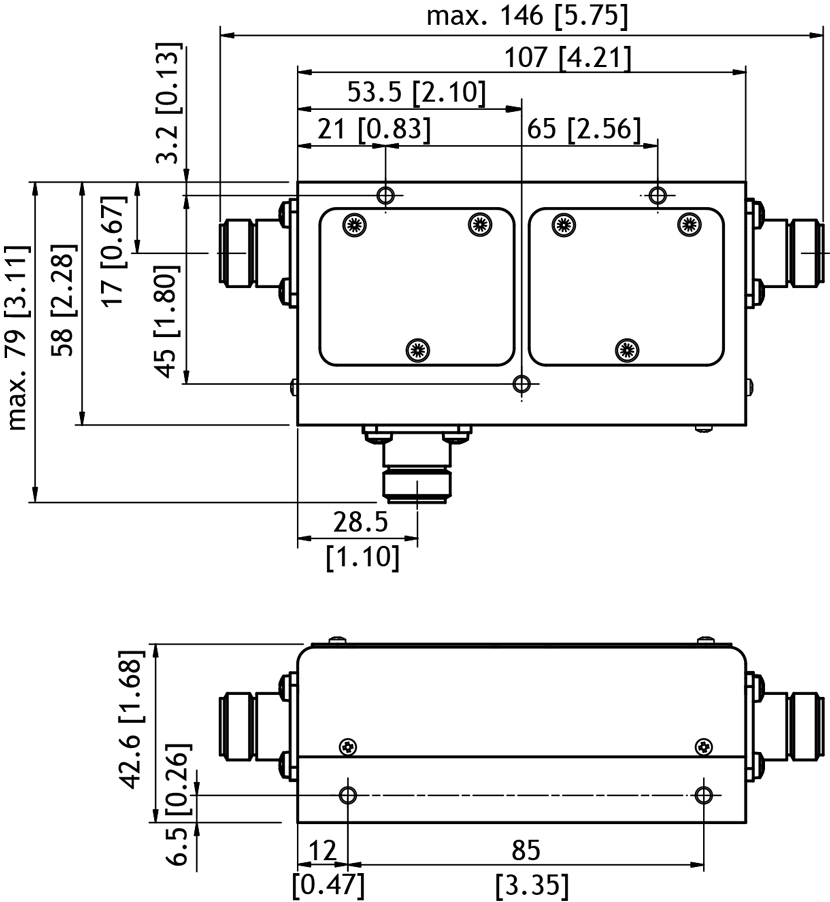

Mounting Details for PRO-IS-350-D1

PRO IS 150 D1 HOLE

All dimensions are given in mm [in.]

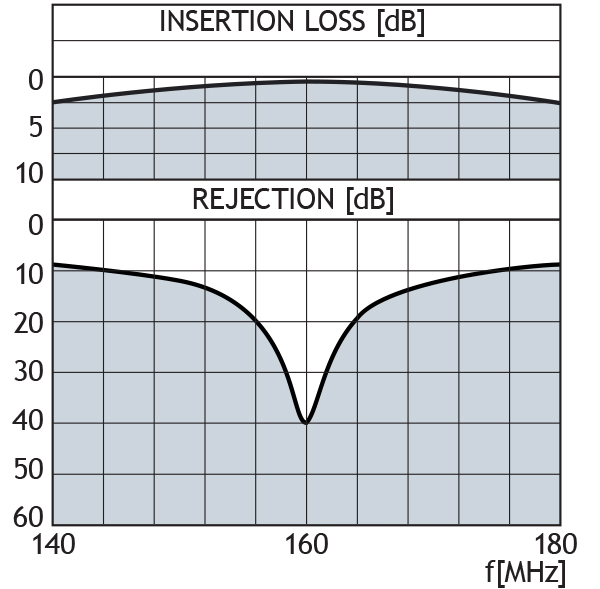

Typical response curves for PRO-IS-350-S1

pro is 150 S1 insloss GB

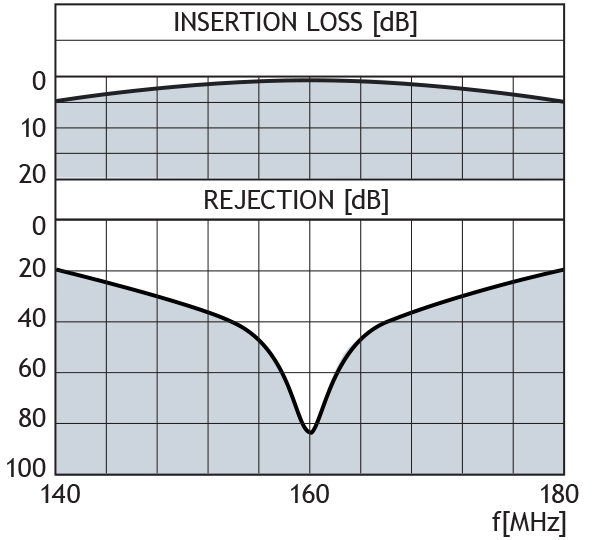

Typical response curves for PRO-IS-350-D1

pro is 150 D1 insloss GB
