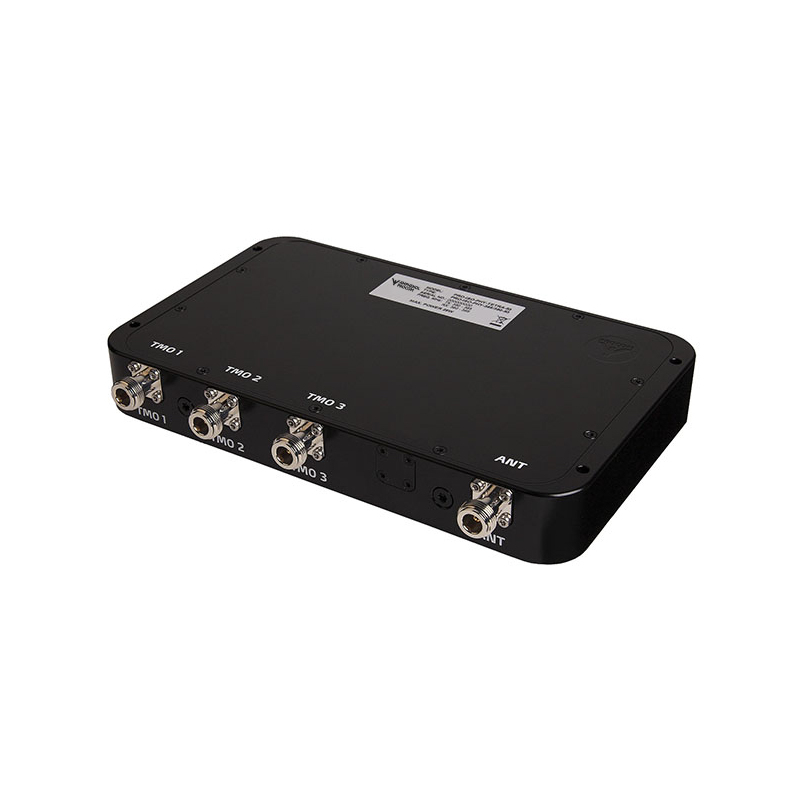

PRO-ISO-PHY-TETRA-S3

Quickly identify the correct ordering code.

PRO-ISO-PHY-TETRA-S3
Electrical
Model PRO-ISO-PHY-TETRA-S3
Frequency Tx : 380 – 385 MHz / Rx : 390 – 395 MHz or
Tx : 410 – 415 MHz / Rx : 420 – 425 MHz
Type TETRA combiner
Max. Input Power 25 W per port
Insertion Loss Tx-Ant. < 9.0 dB
Insertion Loss Rx-Ant. < 9.0 dB
Isolation TRx – TRx Tx – Tx : > 60 dB
Rx – Rx : > 60 dB
Tx – Rx / Rx – Tx : > 60 dB
VSWR < 1.5:1
Group Delay Variation Tx – ANT. < 120 nsec.
Rx – ANT. < 150 nsec.
No. of channels 3
Environmental
Ingress Protection IP62
Mechanical
Connection(s) N(f)
Colour Black
Historic Brand Amphenol Procom
Dimensions 150 (excl. conn.) x 250 x 35 mm / 5.91 (excl. conn.) x 9.84 x 1.38 in.
Weight Approx. 2.4 kg / 5.29 lb.
  •
    • The PRO-ISO-PHY-TETRA-S3 combiner provides the possibillity of connecting up to three TETRA radios into one common antenna.
    • The PRO-ISO-PHY-TETRA-S3 models are available in the frequency range 380 – 470 MHz (on request).
    • All PRO-ISO-PHY units are designed for single carrier signal per port and thus it is not recommended to add a multiple carrier signal on the input ports, as this could potentially create unwanted intermodulation products transmitted on the antenna port and reflected on the input ports.
    • ETSI compliant connection of three digital radios.
    • The PRO-ISO-PHY-TETRA-S3 is the successor to the PRO-ISO-PHY-TETRA-3.
    • The PRO-ISO-PHY-TETRA-S3 has improved isolation between the ports more than 62 dB – and lower insertion loss.
    • The use of high-quality system components such as highly selective helical duplex filters and high-performance isolators provides high isolation and secure communication.
    • The smallest and most compact design on the market.
    • Suitable for both stationary and mobile use.
    • Also available in tray for 19″ rack mounting.
    • Vibration and shock tested in accordance with EN-60068

    • Tested in accordance with:
      Random test: EN 60068-2-64, test specification: EN 300 019-2-5 V3.0.0.
      Shock test: EN 60068-2-27, test specification: EN 300 019-2-5 V3.0.0.
      Bump test: EN 60068-2-29, test specification: EN 300 019-2-5 V3.0.0.



No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

PRO-ISO-PHY-385/390-S3-N(f)

 210002228 380 – 385 MHz / 390 – 395 MHz

PRO-ISO-PHY-415/420-S3-N(f)

 210002252 410 – 415 MHz / 420 – 425 MHz

PRO-ISO-PHY-420/425-S3-N(f)

 Contact_48 415 – 420 MHz / 425 – 430 MHz

Login required

You need to be logged in into your account to view downloadable documents.

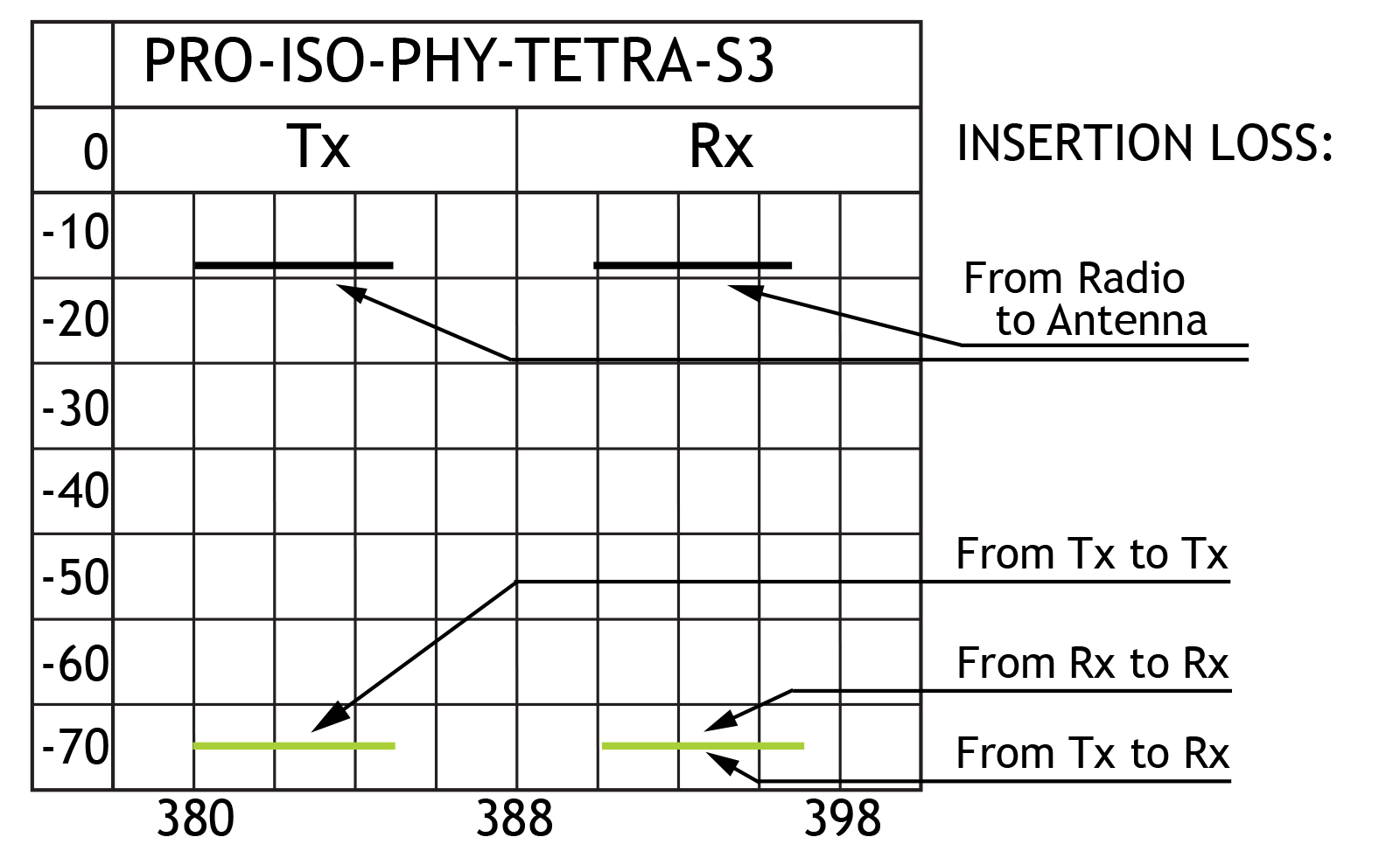

Typical Attenuation Values

PRO ISO PHY TETRA S3 insloss GB

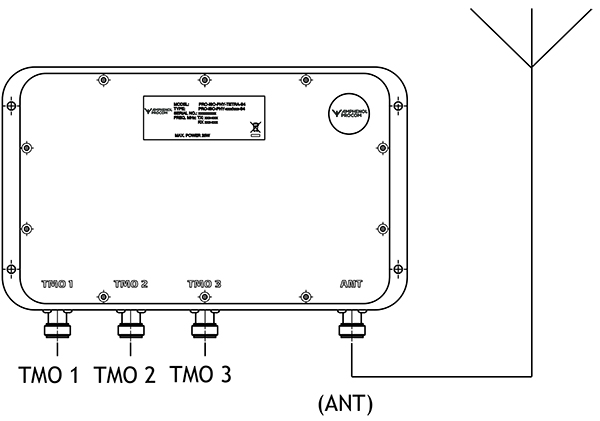

Connection Diagram

PRO ISO PHY TETRA S3 connection diagram

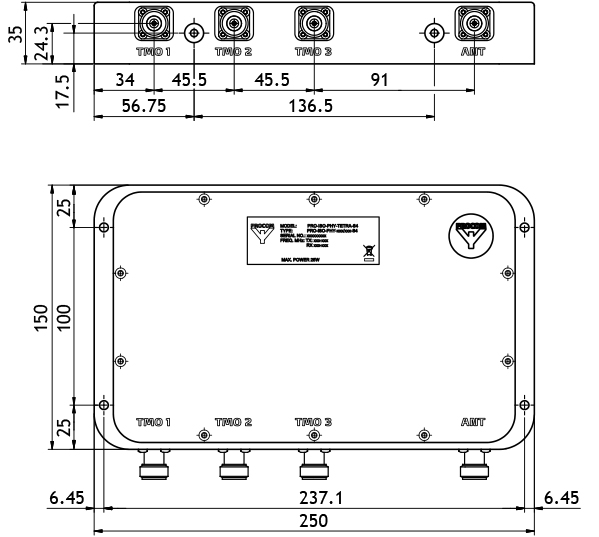

Mounting Details

PRO ISO PHY TETRA S3 hole placing

All dimensions are given in mm.

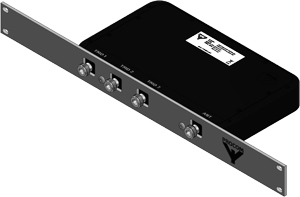

19″ Front plate with connectors in front (210002302)

PRO ISO PHY TETRA S3 TR F

19″ Front plate with connectors in back (210002205)

PRO ISO PHY TETRA S3 TR B

Note

*The front plates are delivered in a seperate packaging with extra screws for mounting on the combiner.
