PRO-ISO-PHY-TETRA-S6

Six-TETRA-Station Combiner

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-ISO-PHY-TETRA-S6

Quickly identify the correct ordering code.

PRO-ISO-PHY-TETRA-S6
Electrical
Model PRO-ISO-PHY-TETRA-S6
Frequency Tx : 380 – 385 MHz
Rx : 390 – 395 MHz or
Tx : 410 – 415 MHz
Rx : 420 – 425 MHz
Type TETRA combiner
Max. Input Power 25 W / station
Insertion Loss Tx-Ant. < 13 dB
Insertion Loss Rx-Ant. < 13 dB
Isolation TRx – TRx Tx – Tx : > 60 dB
Rx – Rx : > 60 dB
Tx – Rx / Rx – Tx : > 60 dB
VSWR < 1.5:1
Group Delay Variation Tx – ANT. < 120 nsec.
Rx – ANT. < 150 nsec.
No. of channels 6
Environmental
Ingress Protection IP62
Mechanical
Connection(s) N(f)
Colour Combiner : BlackFrontplate : Aluminium
Historic Brand Amphenol Procom
Dimensions 19″ x 2 HU x 154 mm (excl. conn.)
(482.6 x 88.1 x 154 mm) /
19 x 3.47 x 6.06 in.
Weight Approx. 5.3 kg / 11.68 lb.
  • The PRO-ISO-PHY-TETRA-S6 combiner provides the possibillity of connecting up to six TETRA radios into one common antenna.
  • All PRO-ISO-PHY units are designed for single carrier signal per port and thus it is not recommended to add a multiple carrier signal on the input ports, as this could potentially create unwanted intermodulation products transmitted on the antenna port and reflected on the input ports.
  • ETSI compliant connection of six digital radios.
  • The PRO-ISO-PHY-TETRA-S6 has high isolation between the ports more than 62 dB – and low insertion loss.
  • The use of high-quality system components such as highly selective helical duplex filters and high-performance isolators provides high isolation and secure communication.
  • The smallest and most compact design on the market.
  • Suitable for both stationary and mobile use.
  • Delivered with a 19″ front plate for rack mounting (Unassembled).
  • Jumper cables included

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

PRO-ISO-PHY-385/390-S6-TR-B-N(f)

 210002299 380 – 385 MHz / 390 – 395 MHz

PRO-ISO-PHY-385/390-S6-TR-F-N(f)

 210002356 380 – 385 MHz / 390 – 395 MHz

PRO-ISO-PHY-415/420-S6-TR-B-N(f)

 210002357 410 – 415 MHz / 420 – 425 MHz

PRO-ISO-PHY-415/420-S6-TR-F-N(f)

 210002358 410 – 415 MHz / 420 – 425 MHz

Login required

You need to be logged in into your account to view downloadable documents.

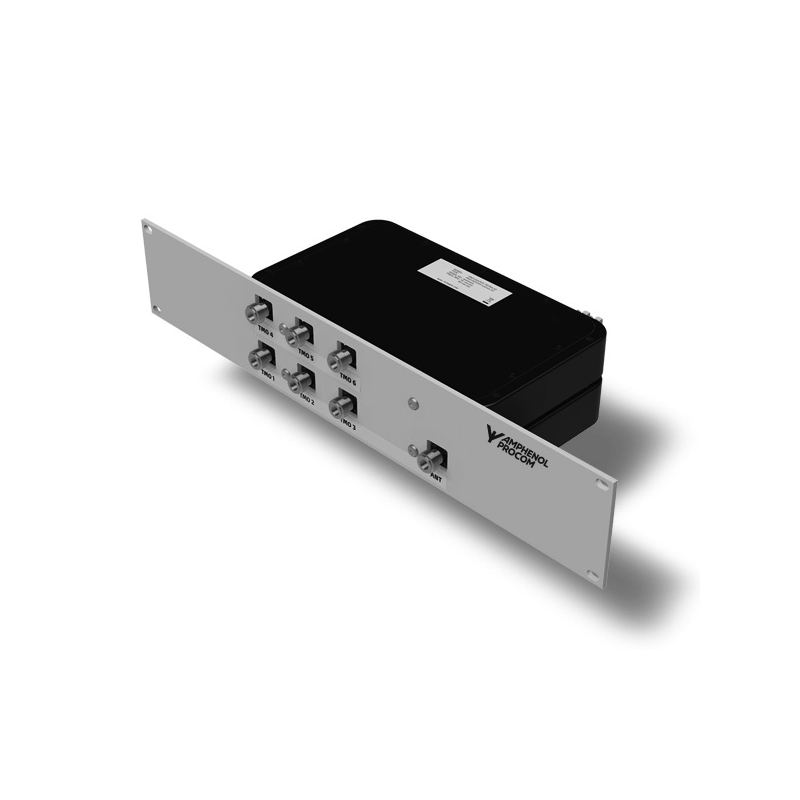

Option TR-F

PRO ISO PHY TETRA S6 FRONT 2

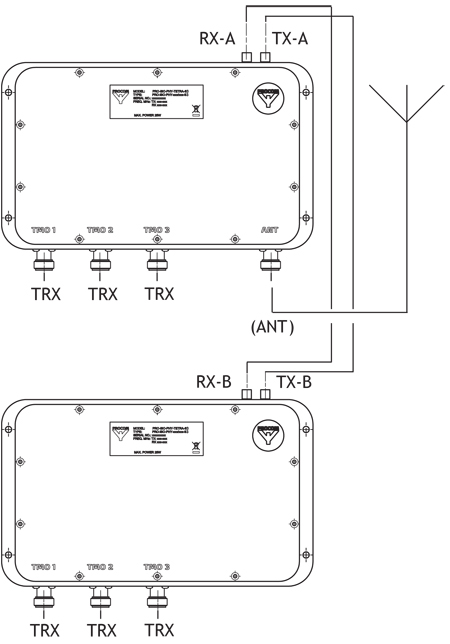

Connection Diagram

PRO ISO PHY TETRA S6 conn diagram

Option TR-B

PRO ISO PHY TETRA S6 Back
