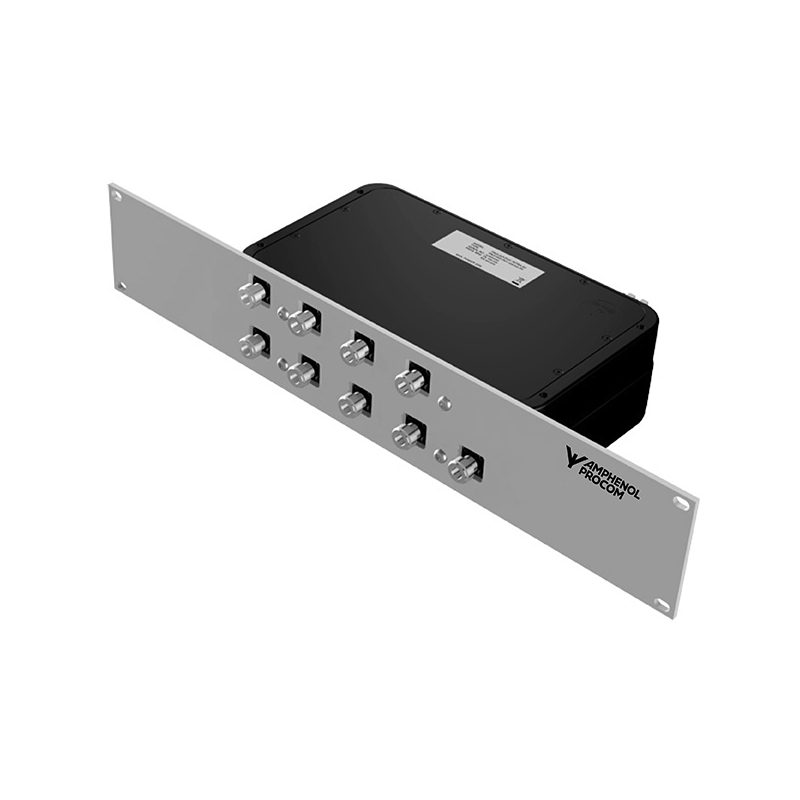

PRO-ISO-PHY-TETRA-S8

Quickly identify the correct ordering code.

PRO-ISO-PHY-TETRA-S8
Electrical
Model PRO-ISO-PHY-TETRA-S8
Frequency Tx : 380 – 385 MHz
Rx : 390 – 395 MHz or
Tx : 410 – 415 MHz
Rx : 420 – 425 MHz
Type TETRA combiner
Max. Input Power 25 W / station
Insertion Loss Tx-Ant. < 13 dB
Insertion Loss Rx-Ant. < 13 dB
Isolation TRx – TRx Tx – Tx : > 60 dB
Rx – Rx : > 60 dB
Tx – Rx / Rx – Tx : > 60 dB
VSWR < 1.5:1
Group Delay Variation Tx – ANT. < 120 nsec.
Rx – ANT. < 150 nsec.
No. of channels 8
Environmental
Ingress Protection IP62
Mechanical
Connection(s) N(f)
Colour Combiner : Black
Frontplate : Aluminium
Historic Brand Amphenol Procom
Dimensions 19″ x 2 HU x 154 mm (excl. conn.)
(482.6 x 88.1 x 154 mm) /
19 x 3.47 x 6.06 in.
Weight Approx. 5.3 kg / 11.68 lb.
  • The PRO-ISO-PHY-TETRA-S8 combiner provides the possibillity of connecting up to eight TETRA radios into one common antenna.
  • All PRO-ISO-PHY units are designed for single carrier signal per port and thus it is not recommended to add a multiple carrier signal on the input ports, as this could potentially create unwanted intermodulation products transmitted on the antenna port and reflected on the input ports.
  • ETSI compliant connection of eight digital radios.
  • The PRO-ISO-PHY-TETRA-S8 has high isolation between the ports – more than 62 dB – and low insertion loss.
  • The use of high-quality system components such as highly selective helical duplex filters and high-performance isolators provides high isolation and secure communication.
  • The smallest and most compact design on the market.
  • Suitable for both stationary and mobile use.
  • Delivered with a 19″ front plate for rack mounting (Unassembled).
  • Vibration and shock tested in accordance with EN-60068
  • Jumper cables included.

  • Tested in accordance with:
    Random test: EN 60068-2-64, test specification: EN 300 019-2-5 V3.0.0.
    Shock test: EN 60068-2-27, test specification: EN 300 019-2-5 V3.0.0.
    Bump test: EN 60068-2-29, test specification: EN 300 019-2-5 V3.0.0.



No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

PRO-ISO-PHY-385/390-S8-TR-B-N(f)

 210002359 380 – 385 MHz / 390 – 395 MHz

PRO-ISO-PHY-385/390-S8-TR-F-N(f)

 210002360 380 – 385 MHz / 390 – 395 MHz

PRO-ISO-PHY-415/420-S8-TR-B-N(f)

 210002361 410 – 415 MHz / 420 – 425 MHz

PRO-ISO-PHY-415/420-S8-TR-F-N(f)

 210002362 410 – 415 MHz / 420 – 425 MHz

PRO-ISO-PHY-420/425-S8-TR-B-N(f)

 210002541 415 – 420 MHz / 425 – 430 MHz

PRO-ISO-PHY-420/425-S8-TR-F-N(f)

 210003021 415 – 420 MHz / 425 – 430 MHz

PRO-ISO-PHY-460/465-S8-TR-B-N(f)

 210002854 455 – 460 MHz / 465 – 470 MHz

PRO-ISO-PHY-460/465-S8-TR-F-N(f)

 210002855 455 – 460 MHz / 465 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

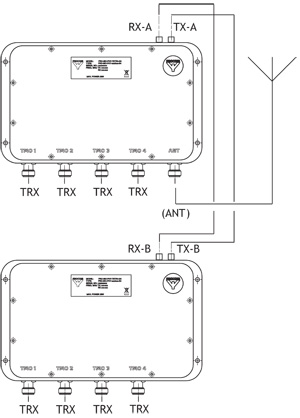

Connection Diagram

PRO ISO PHY TETRA S8 connection diagram

Typical Attenuation Values

Option TR-F

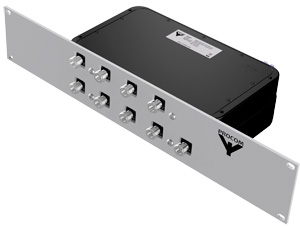

PRO ISO PHY TETRA S8 FRONT2 NEW
