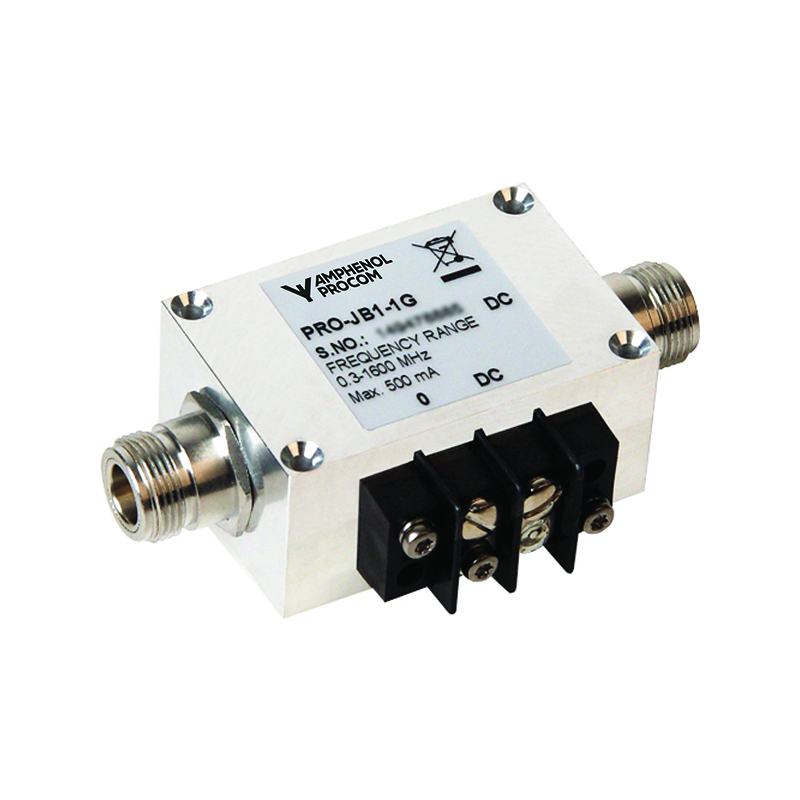

PRO-JB1-1G

Junction Box

Find Out More
Data Sheet
CE Certification

Other Files

PRO-JB1-1G
Electrical
Model PRO-JB1-1G
Frequency 0.3 – 1600 MHz
Insertion Loss < 0.6 dB
VSWR Max. <1.5:1 typ. < 1.3:1
Max. Current 500 mA
Flashover Voltage Max. 50 V
Isolation RF-DC Min. 30 dB @ 300 KHz
Min. 60 dB @ > 10 MHz
Environmental
Ingress Protection IP54
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 91 x 52 x 28 mm
3.58 x 2.05 x 1.10 in.
Weight Approx. 0.15 kg / 0.33 lb.
  • Miniature junction box = coupling in or out of DC on the coaxial cable.
  • Large frequency range: 0.3 MHz – 1600 MHz.
  • Excellent isolation between RF and DC: > 60 dB.
  • 10 MHz – 1600 MHz.
  • To be used where coupling in or out of DC on the coaxial cable is required:
  • power supply to the mast amplifier
  • DC block at the duplex filters
  • spectrum analyzer and preamplifier.
  • Provided with N-female connector on input and output.

Typical response curve

Mechanical Outline

Functional Diagram

Model Product No. Add To Quote
Junction Box 210001781

Login required

You need to be logged in into your account to view downloadable documents.

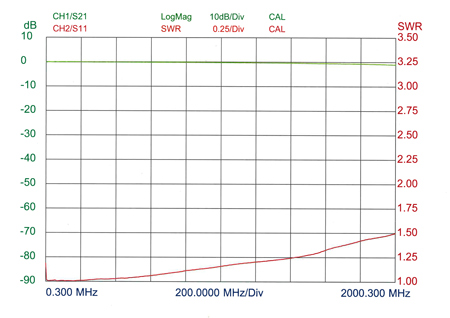

Typical response curve

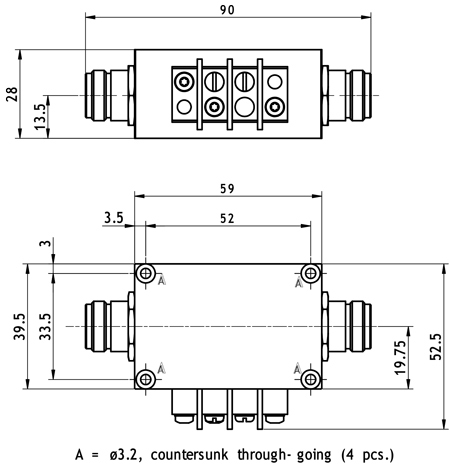

Mechanical Outline

All dimensions are given in mm.

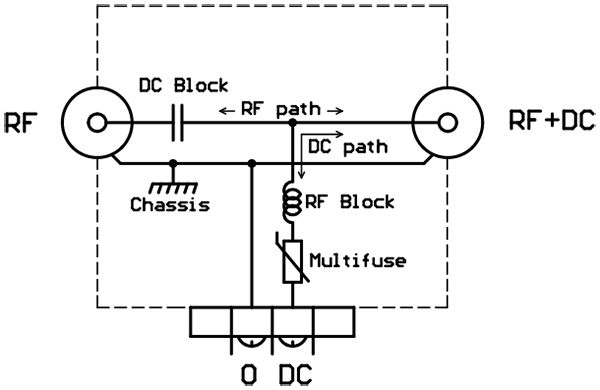

Functional Diagram

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-C 2/70/FQ/FQ is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-PRO-JB.pdf
