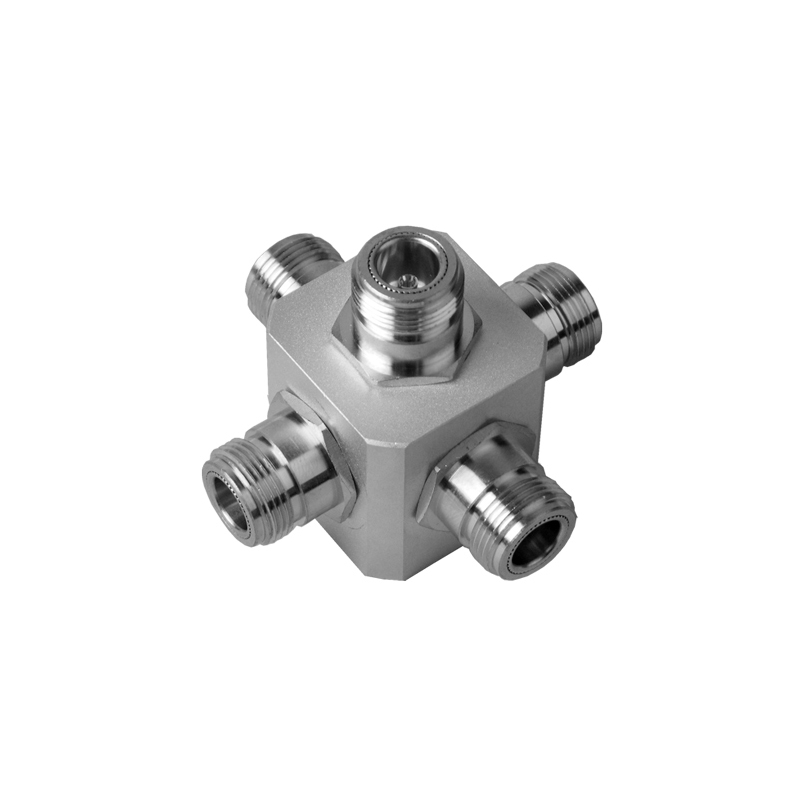

PRO-JB4-1G

Combiner splitter

Find Out More
Data Sheet
CE Certification

Other Files

PRO-JB4-1G
Electrical
Model PRO-JB4-1G
Frequency 0.1 – 1000 MHz
Maximum Composite Power 1000 W @ 300 MHz
600 W @ 1000 MHz
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 63 x 63 x 49 mm /
2.48 x 2.48 x 1.92 in.
Weight Approx. 0.172 kg / 0.38 lb.
  • Large frequency range: 0.1 MHz → 1 GHz.
  • Provided with N-female connector on all five ports.

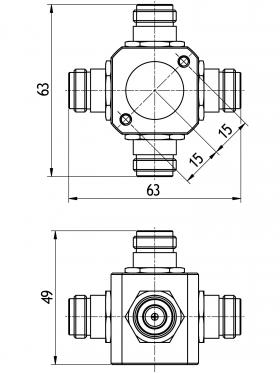

MOUNTING DETAILS

Model Product No. Add To Quote
Combiner splitter 210000076
