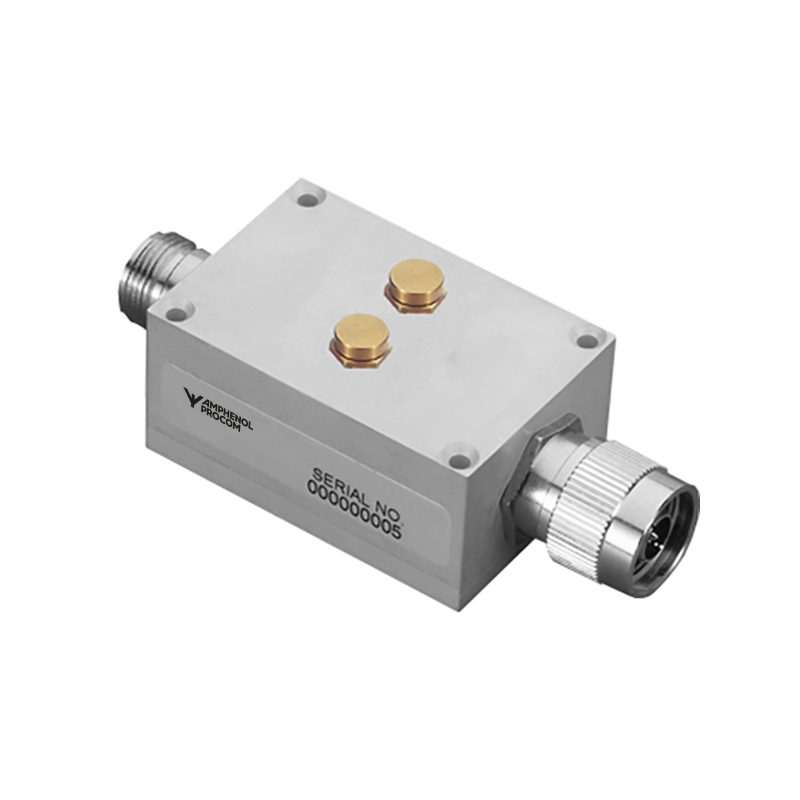

PRO-LP 80
Electrical
Model PRO-LP 80
Frequency Pass band : 66 – 88 MHz
Stop band : 132 – 264 MHz
Max. Input Power 150 W
Pass Band Insertion Loss < 0.2 dB (typ. < 0.1dB)
Impedance 50 Ω
Application Low-pass filter for the 80 MHz band
VSWR < 1.5:1
Stop Band Attenuation > 40 dB
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f) / N(m)
Historic Brand Amphenol Procom
Dimensions 98 (incl. conn.) x 39.5 x 28 mm /
3.85 x 1.5 x 1.1 in.
Weight Approx. 0.15 kg / 0.33 lb.
Mounting 3.2 mm dia. (4 holes)
  • Medium power low-pass filter for the 66 – 88 MHz range.
  • Attenuates especially 2. and 3. harmonics.
  • High frequency stability on temperature and power.
  • Attenuation in stop band better than 40 dB.
  • Extremely low insertion loss (less than 0.2 dB).

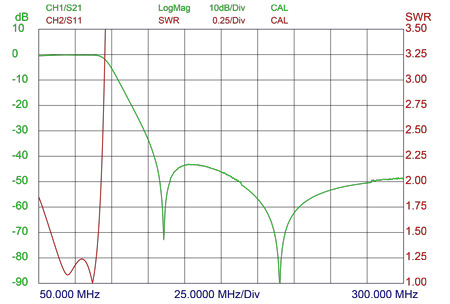

TYPICAL RESPONSE CURVES

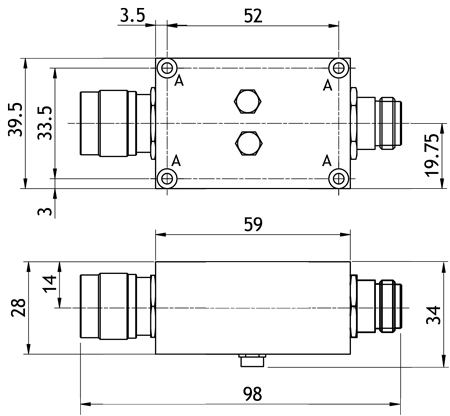

MOUNTING DETAILS
