PRO-LPF 500

Low-Pass Filter for 0 – 500 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

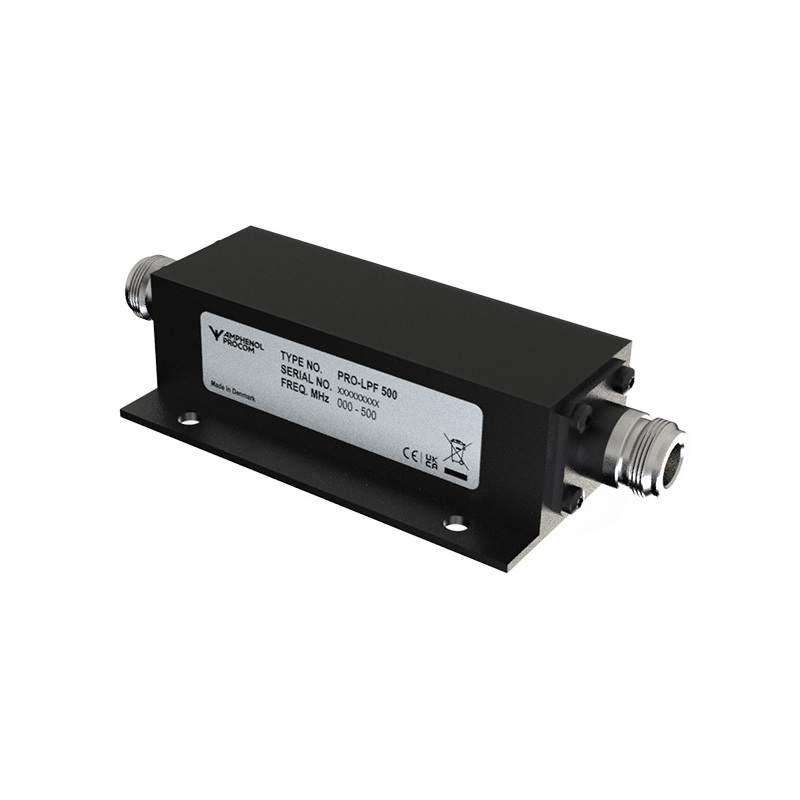

PRO-LPF 500
Electrical
Model PRO-LPF 500
Frequency Pass band : 0 – 500 MHz
Stop band : 750 – 1300 MHz
Max. Input Power 35 W
Pass Band Insertion Loss < 0.8 dB
Impedance 50 Ω
VSWR < 1.5:1
Stop Band Attenuation > 60 dB
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
(BNC, TNC or SMA on request)
Dimensions 129 (incl. conn.) x 152 (incl. flanges) x 35 mm / 5.08 x 5.98 x 1.38 in.
Weight Approx. 0.15 kg / 0.33 lb.
Mounting 4.3 mm dia. (4 holes)
  • PRO-LPF 500 is a LC low-pass filter.
  • Low-pass filter for 0 – 500 MHz range.
  • Attenuation in stop band better than 60 dB.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Low-Pass Filter for 0 – 500 MHz Band 200002960

Login required

You need to be logged in into your account to view downloadable documents.

Typical Response curve

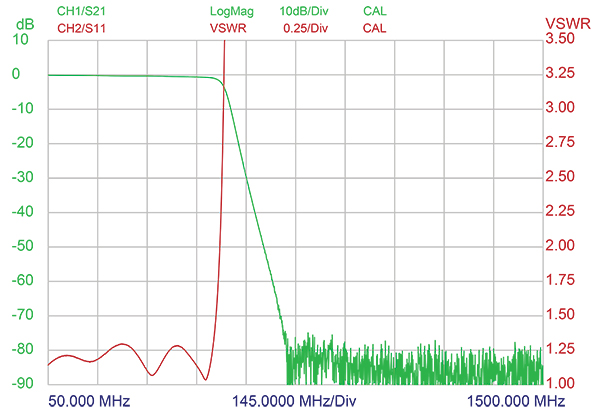

PRO LPF 500 VSWR Plot

Mounting Details

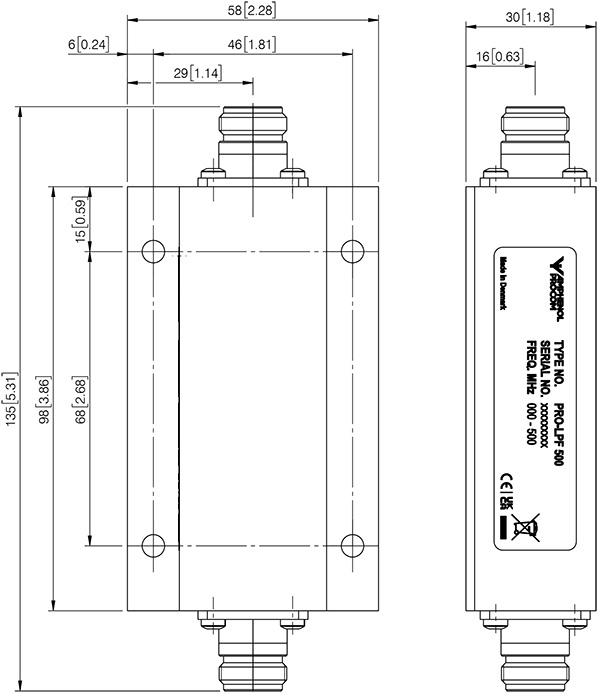

PRO LPF 500 Mounting details

All dimensions are given in mm [in.]
