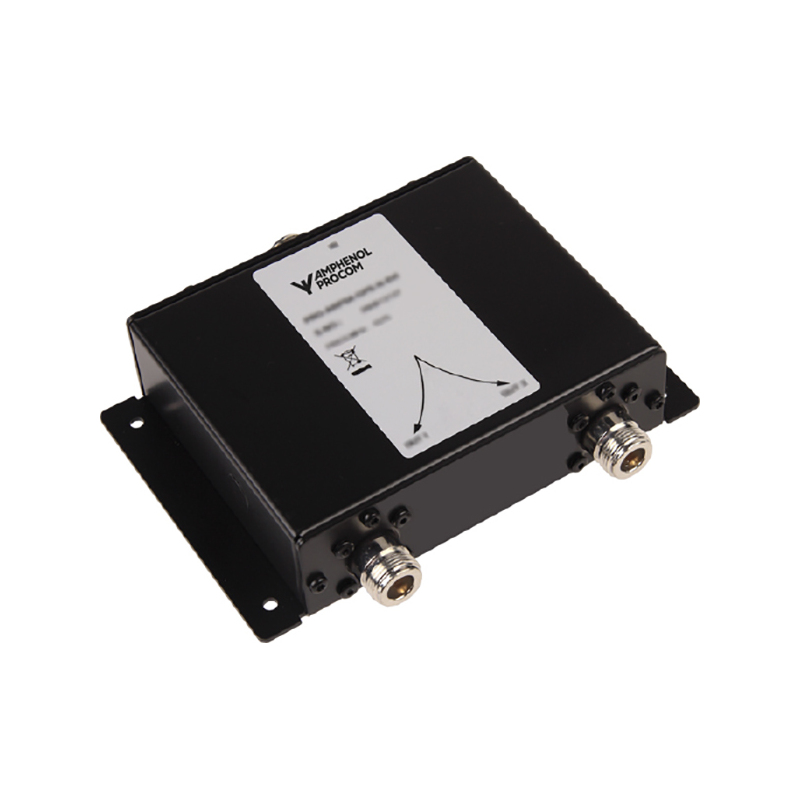

PRO-MPHY68-88-2-3 dB

2-Channel Wilkinson Power Combiner / Divider for the 68-88 MHz band

Find Out More
Data Sheet
CE Certification

Other Files

PRO-MPHY68-88-2-3 dB
Electrical
Model PRO-MPHY68-88-2-3 dB
Filter Type Cascaded Wilkinson
Frequency 66 – 88 MHz
Max. Input Power 60 W as power splitter, 10 W pr channel as combiner
Coupling < 3.5 dB @ 10 MHz BW
Insertion Loss < 3.5 dB @ 10 MHz BW
Impedance 50 Ω
Isolation > 20 dB @ 10 MHz BW
VSWR < 1.3 when all ports are terminated with 50 Ω @ 10 MHz BW
No. of channels 2
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f) (other types as option)
Historic Brand Amphenol Procom
Dimensions 129 (incl. conn.) x 152 (incl. flanges) x 35 mm /
5.08 x 5.98 x 1.38 in.
Weight Approx. 0.45 kg / 0.99 lb.
  • Combines two transmitters or receivers on the same antenna.
  • Better utilization of good antenna position.
  • The only combining option with very small Tx-Tx frequency spacing.
  • Can handle 60 W power as a splitter or 10 W pr channel as a combiner.
  • Two antennas on the same transmitter or receiver.
  • Symmetrical 1:1 dividing ratio (-3 dB).

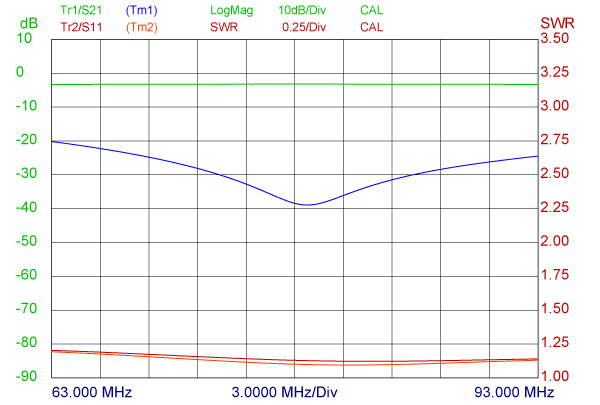

TYPICAL RESPONSE CURVE

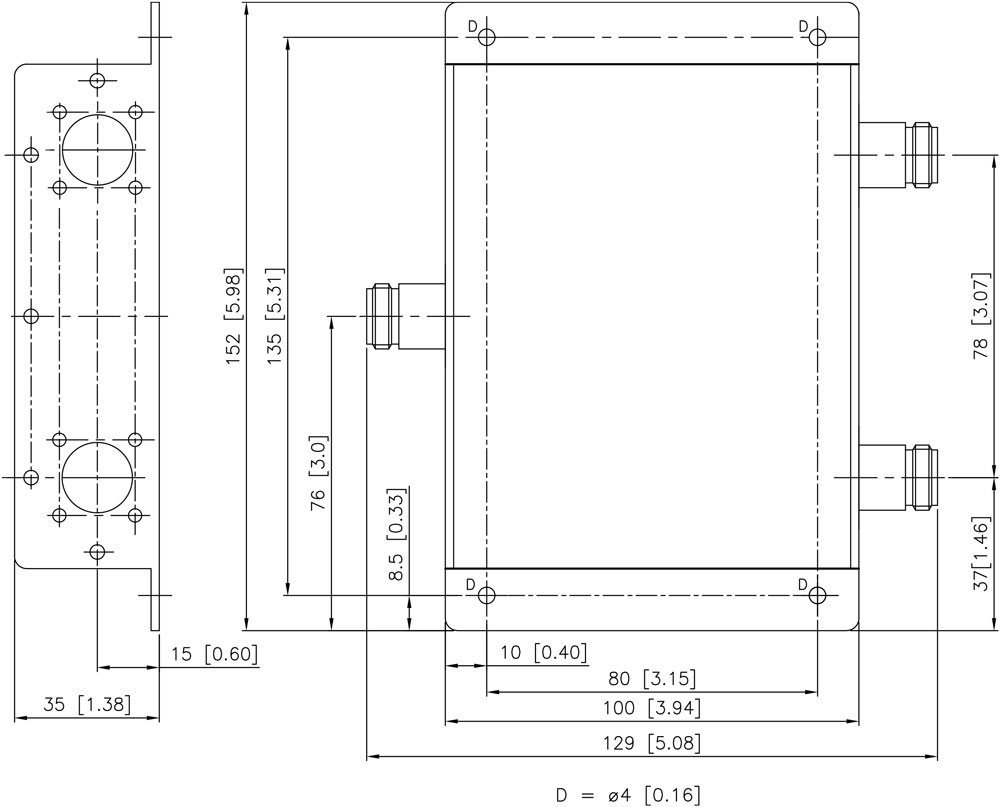

MOUNTING DETAILS

All dimension are given in mm [in.]

All dimension are given in mm [in.]

Model Product No. Add To Quote
2-Channel Wilkinson Power Combiner / Divider for the 68-88 MHz band 210000657
