PRO-PDI-2G-3R

Power Divider

Find Out More
Data Sheet
CE Certification

Other Files

PRO-PDI-2G-3R
Electrical
Model PRO-PDI-2G-3R
Frequency DC – 2000 MHz
Max. Input Power 10 W
Impedance 50 Ω
Total Loss Typ. 6.5 dB ±1 dB DC – 2000 MHz
Input VSWR < 1.5:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 129 (incl. conn.) x 152 (incl. flanges) x 35 mm /
5.08 x 5.98 x 1.38 in.
Weight Approx. 0.36 kg / 0.79 lb.
  • 10 W esistive equal power divider.
  • Covers the frequency range from DC – 2000 MHz.
  • Very little ripple on divider output over the entire frequency range.

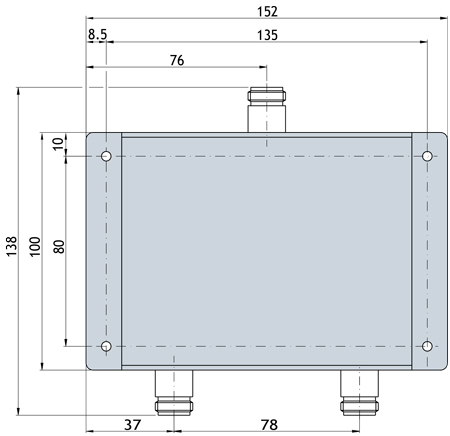

MOUNTING DETAILS

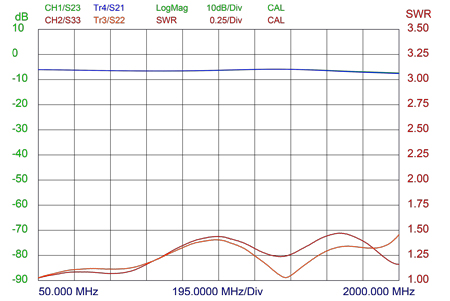

TYPICAL RESPONSE CURVE

Model Product No. Add To Quote
Power Divider 200000993
