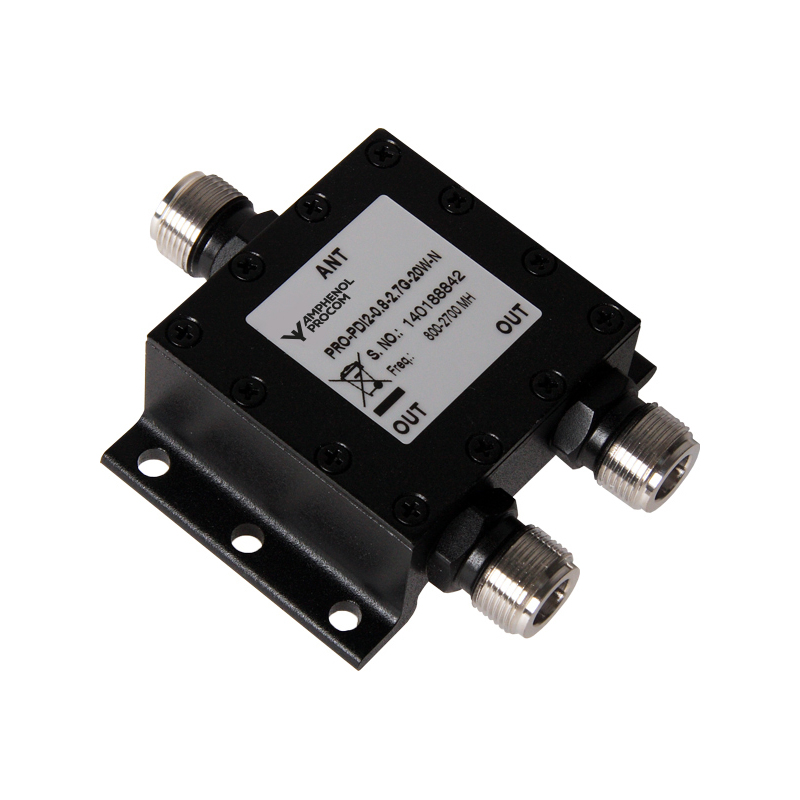

PRO-PDI2-0.8-2.7G-20W-N

Power Divider 20 W

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-PDI2-0.8-2.7G-20W-N

Quickly identify the correct ordering code.

PRO-PDI2-0.8-2.7G-20W-N
Electrical
Model PRO-PDI2-0.8-2.7G-20W-N
Frequency 800 – 2700 MHz
Max. Input Power 20 W
Impedance 50 Ω
Nominal Divider Loss 3 dB
Total Loss < 3.7 dB (typ. 3.5 dB)
Isolation > 20 dB
VSWR < 1.2:1
Divider Output Equal
Environmental
Operating temperature range -35 °C to +60 °C
Mechanical
Compliance RoHS, IP67
Connection(s) N(f) or SMA(f)
Historic Brand Amphenol Procom
Dimensions 99.4 (incl. conn) x 104.5 x 32 mm /
3.91 (incl. conn.) x 4.11 x 1.26 in.
Weight Approx. 0.395 kg / 0.87 lb.
  • 20 W Power Divider with broadband characteristics covering the cellular service bands.
  • 20 W equal power divider.
  • Very low VSWR and excellent isolation over the entire frequency range.

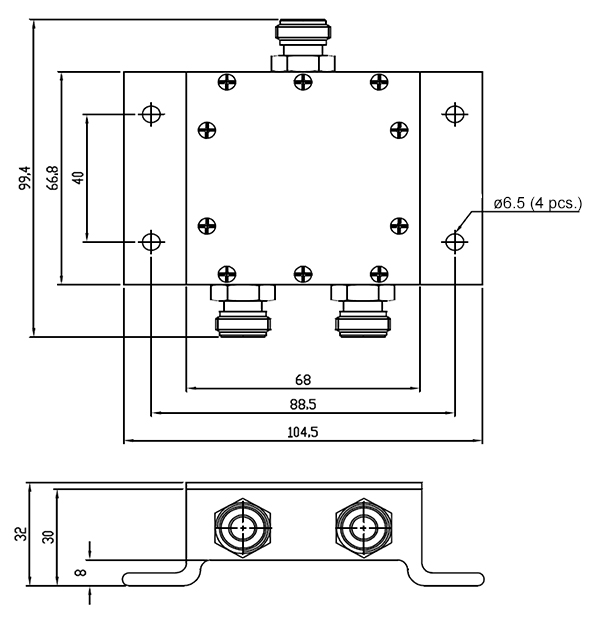

Mounting Details

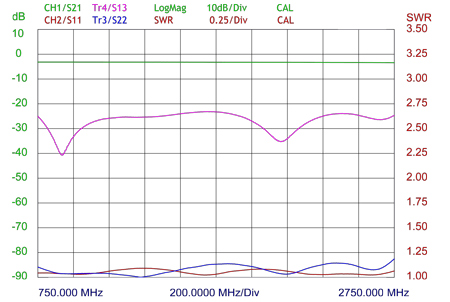

Typical response curves

Model Product No. Model Add To Quote

PRO-PDI2-0.8-2.7G-20W-N(f)

 200001704 PRO-PDI2-0.8-2.7G-20W-N(f)

PRO-PDI2-0.8-2.7G-20W-SMA(f)

 200002113 (MOQ = 30 pcs.) PRO-PDI2-0.8-2.7G-20W-SMA(f)
