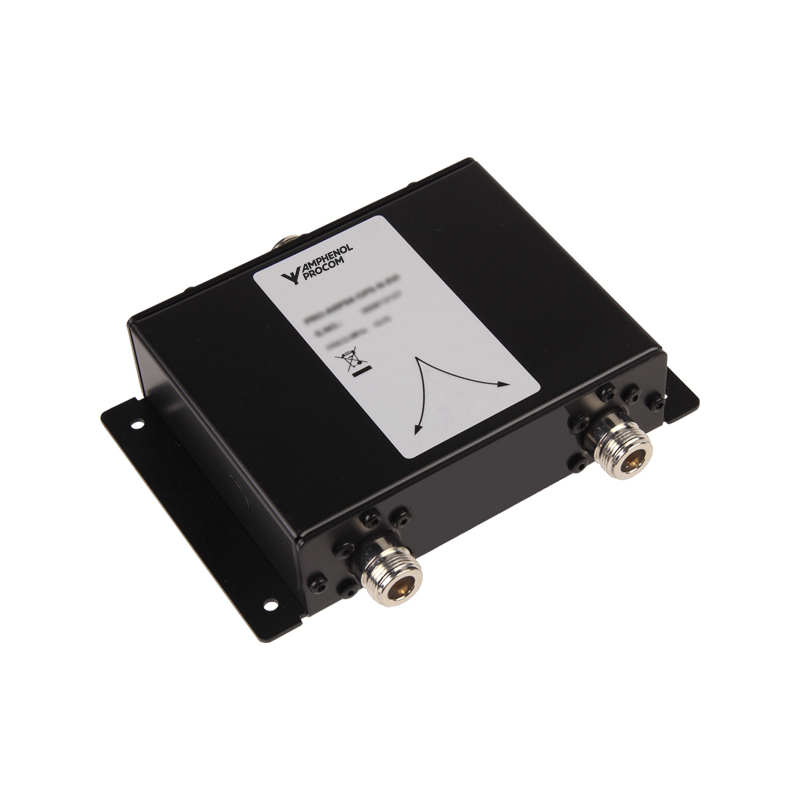

PRO-PDI2-40-1G-… dB-10W-N

Power Divider

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-PDI2-40-1G-... dB-10W-N

Quickly identify the correct ordering code.

PRO-PDI2-40-1G-… dB-10W-N
Electrical
Model PRO-PDI2-40-1G-… dB-10W-N
Frequency 40 – 1000 MHz
Max. Input Power 10 W
Coupling
3 dB6 dB7 dB8 dB10 dB20 dB
Impedance 50 Ω
Nominal Divider Loss
3 dB1.25 dB0.8 dB0.75 dB0.45 dB0.04 dB
Total Loss
≤ 3.7 dB @ 40 MHz
≤ 4.8 dB @ 1000 MHz≤ 2 dB @ 40 MHz
≤ 3.75 dB @ 1000 MHz≤ 2 dB @ 40 MHz
≤ 2.75 dB @ 1000 MHz≤ 1.8 dB @ 40 MHz
≤ 2.9 dB @ 1000 MHz≤ 1.8 dB @ 40 MHz
≤ 2.9 dB @ 1000 MHz≤ 0.8 dB @ 40 MHz
≤ 1.7 dB @ 1000 MHz
Isolation between outputs
17 dB10 dB10 dB10 dB12 dB15 dB
Input VSWR < 1.5:1
Divider Output
Equal-6.5 ± 0.5 dB-7.0 ± 0.5 dB-8.0 ± 0.5 dB-10.0 ± 0.5 dB20.0 ± 1.0 dB
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 129 (incl. conn.) x 152 (incl. flanges) x 35 mm
5.08 x 5.98 x 1.38 in.
Weight Approx. 0.36 kg / 0.79 lb.
  • 10 W unequal power divider.
  • The divider covers the frequency range from 40 – 1000 MHz.
  • Very little ripple on divider output over the entire frequency range.

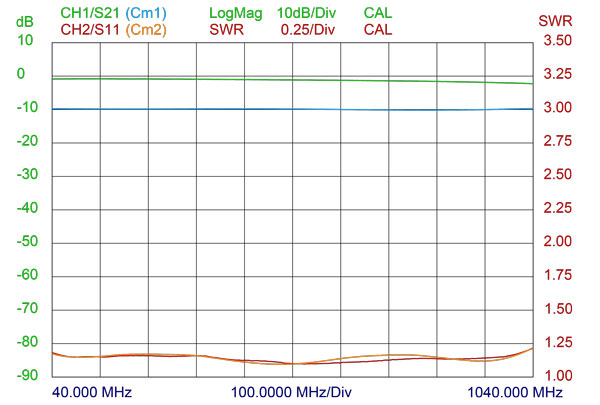

TYPICAL RESPONCE CURVE (-10 dB version)

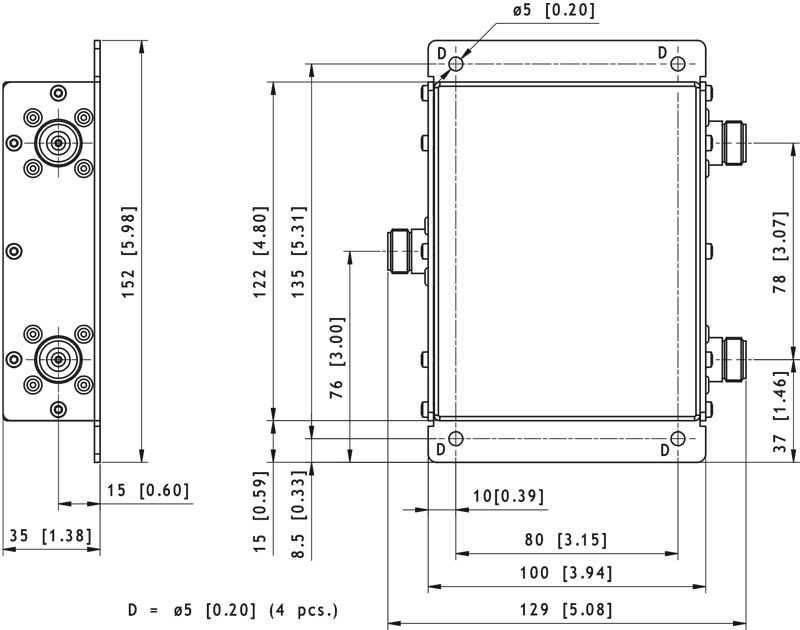

MOUNTING DETAILS

All dimensions are given in mm [in.]

All dimensions are given in mm [in.]

Model Product No. CouplingNominal Divider LossIsolation between outputs Add To Quote

PRO-PDI2-40-1G-3 dB-10W-N(f)

 210000438 3 dB 3 dB 17 dB

PRO-PDI2-40-1G-6 dB-10W-N(f)

 210000440 6 dB 1.25 dB 10 dB

PRO-PDI2-40-1G-7 dB-10W-N(f)

 210000443 7 dB 0.8 dB 10 dB

PRO-PDI2-40-1G-8 dB-10W-N(f)

 210000444 8 dB 0.75 dB 10 dB

PRO-PDI2-40-1G-10 dB-10W-N(f)

 210000446 10 dB 0.45 dB 12 dB

PRO-PDI2-40-1G-20 dB-10W-N(f)

 210000445 20 dB 0.04 dB 15 dB

Login required

You need to be logged in into your account to view downloadable documents.

Typical response curve (-10 dB version)

PRO PDI2 40 1G 10W N kurve

Mounting Details

PRO PDI2 40 1G 10W N holeplacing

All dimensions are given in mm [in.]
