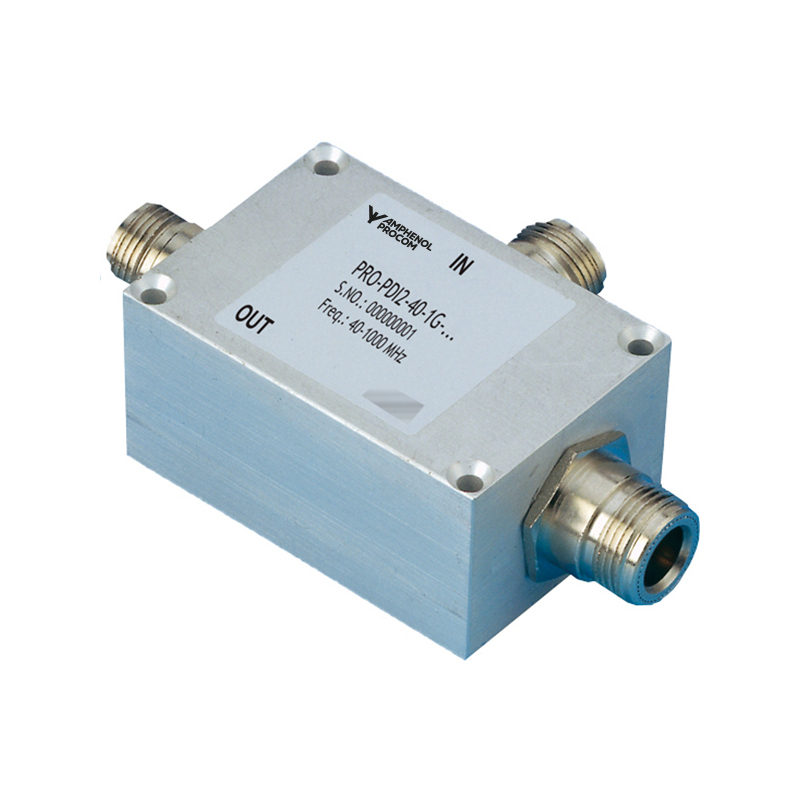

PRO-PDI2-40-1G-… dB-2.5W-N

Power Divider

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-PDI2-40-1G-... dB-2.5W-N

Quickly identify the correct ordering code.

PRO-PDI2-40-1G-… dB-2.5W-N
Electrical
Model PRO-PDI2-40-1G-… dB-2.5W-N
Model Variant
6 dB10 dB15 dB20 dB
Frequency
40 – 1000 MHz40 – 1000 MHz40 – 1000 MHz40 – 2000 MHz
Max. Input Power 2.5 W (3 W)
Coupling
6 dB10 dB15 dB20 dB
Impedance 50 Ω
Nominal Divider Loss
1.25 dB0.45 dB0.45 dB0.4 dB
Total Loss
≤ 2.5 dB @ 40 MHz
≤ 2.75 dB @ 1000 MHz≤ 1.4 dB @ 40 MHz
≤ 2.2 dB @ 1000 MHz≤ 1.4 dB @ 40 MHz
≤ 2.2 dB @ 1000 MHz≤ 0.9 dB @ 40 MHz
≤ 1.1 dB @ 2G < 1.4
Isolation between outputs
10 dB12 dB16 dB18 dB
Input VSWR
< 1.75:1< 1.5:1 @ 2G < 2< 1.5:1
Divider Output
-6.5 -0.5 / +1.5 dB-10 ± 0.5 dB-15 ± 0.5 dB-20 ± 1 dB
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
(BNC(f), TNC(f), UHF(f) or SMA(f) on request)
Historic Brand Amphenol Procom
Dimensions 89 x 56 x 29 mm (incl. connectors) / 3.50 x 2.20 x 1.14 in.
Weight Approx. 0.145 kg / 0.32 lb.
  • 2.5 W unequal power divider.
  • The divider covers the frequency range from 40 – 1000 MHz.
  • Very little ripple on divider output over the entire frequency range.

MOUNTING DETAILS

All dimensions are given in mm [in.]

All dimensions are given in mm [in.]

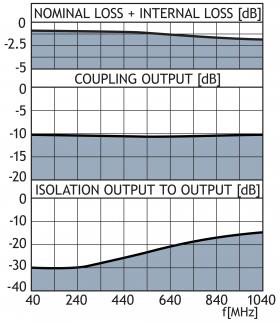

TYPICAL RESPONSE CURVE

Model Product No. Additional Information Add To Quote

PRO-PDI2-40-1G-6 dB-2.5W-N(f)

 210001060 COUPLING: 6 dB

PRO-PDI2-40-1G-10 dB-2.5W-N(f)

 210000437 COUPLING: 10 dB

PRO-PDI2-40-1G-15 dB-2.5W-N(f)

 210001020 COUPLING: 15 dB

PRO-PDI2-40-1G-20 dB-2.5W-N(f)

 210000994 COUPLING: 20 dB

Login required

You need to be logged in into your account to view downloadable documents.

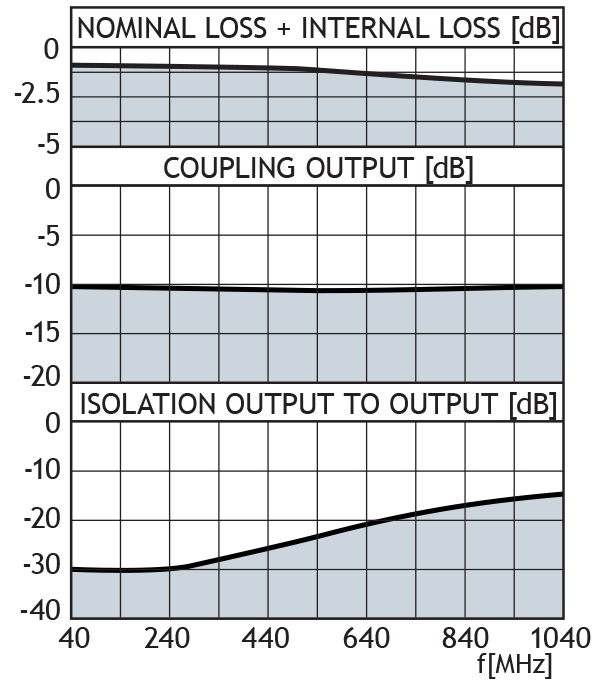

Typical response curve

PRO PDI40 1G 10dB 10W N insloss GB

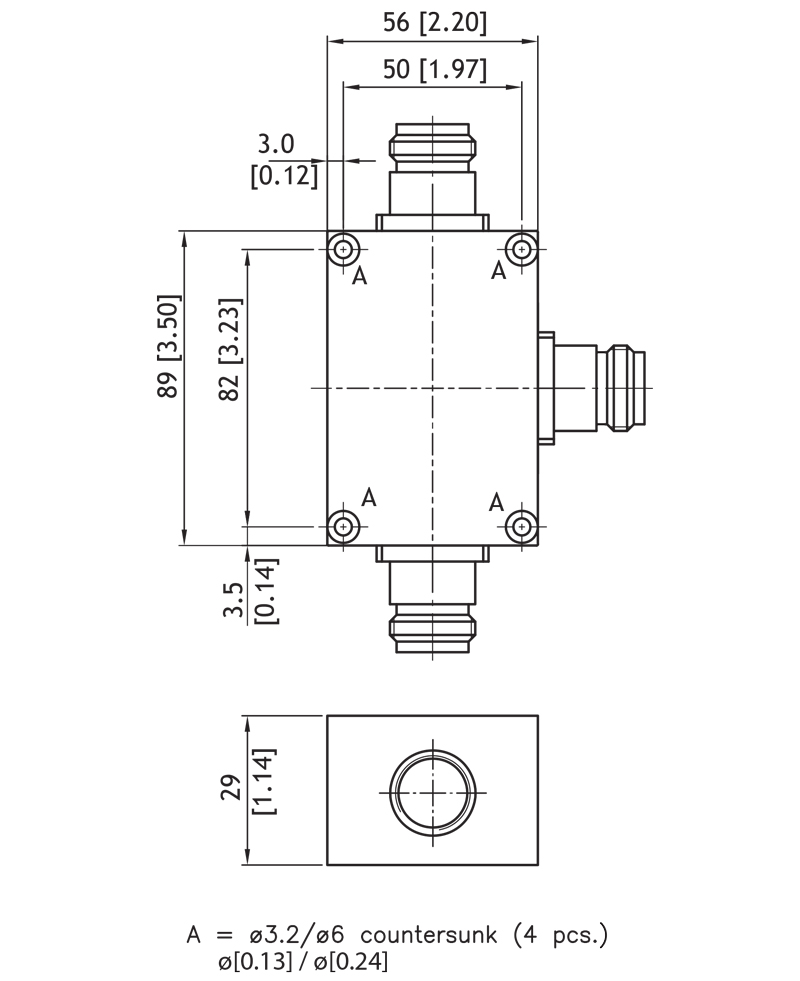

Mounting Details

PRO PDI2 40 1G dB 2.5W N mounting

All dimensions are given in mm [in.]
