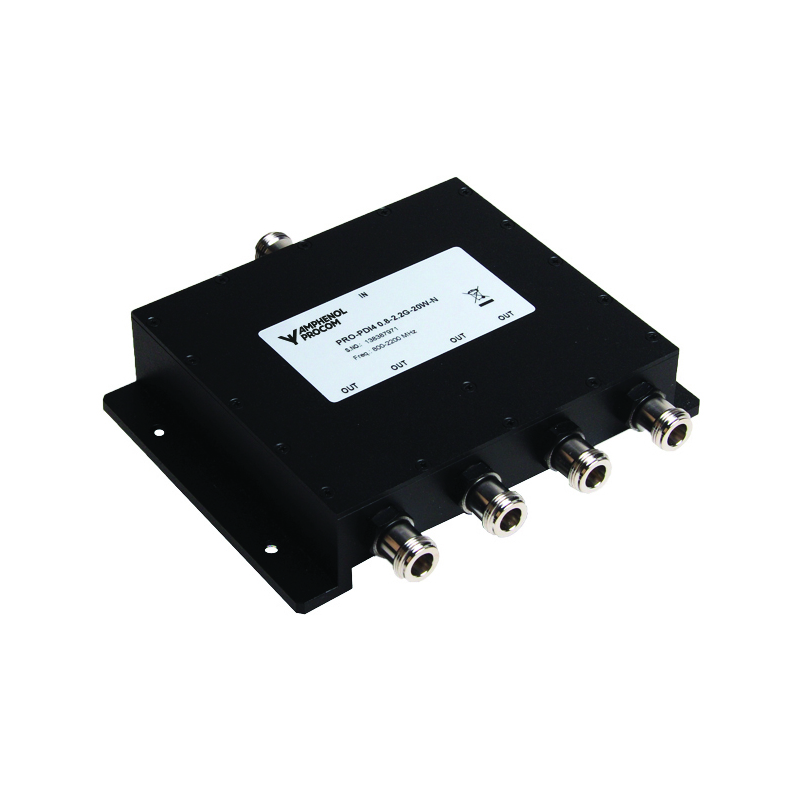

PRO-PDI4-0.8-2.2G-20W-N
Electrical
Model PRO-PDI4 0.8-2.2G-20W-N
Frequency 800 – 2200 MHz
Max. Input Power 20 W
Outputs 4
Impedance 50 Ω
Nominal Divider Loss 6 dB
Isolation > 20 dB
VSWR < 1.2:1
Divider Output Equal
Environmental
Operating temperature range -35 °C to +50 °C
Ingress Protection IP66
Mechanical
Compliance RoHS
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 170 x 16.5 x 36 mm / 6.69 x 0.65 x 1.42 in.
Weight Approx. 0.702 kg / 1.55 lb.
  • 20 W Power Divider with broadband characteristics covering the cellular service bands.
  • 20 W equal power divider.
  • Very low VSWR and excellent isolation over the entire frequency range.

TYPICAL RESPONSE CURVE

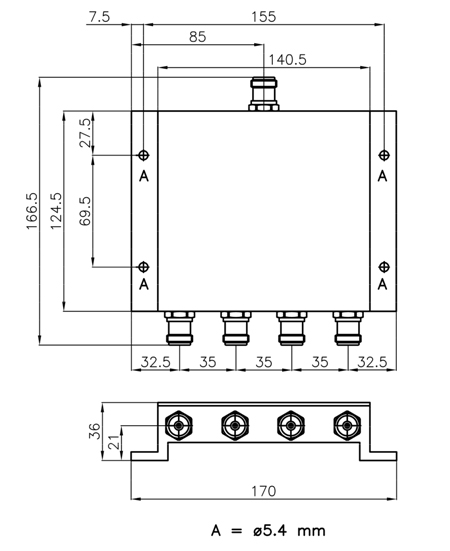

MOUNTING DETAILS
