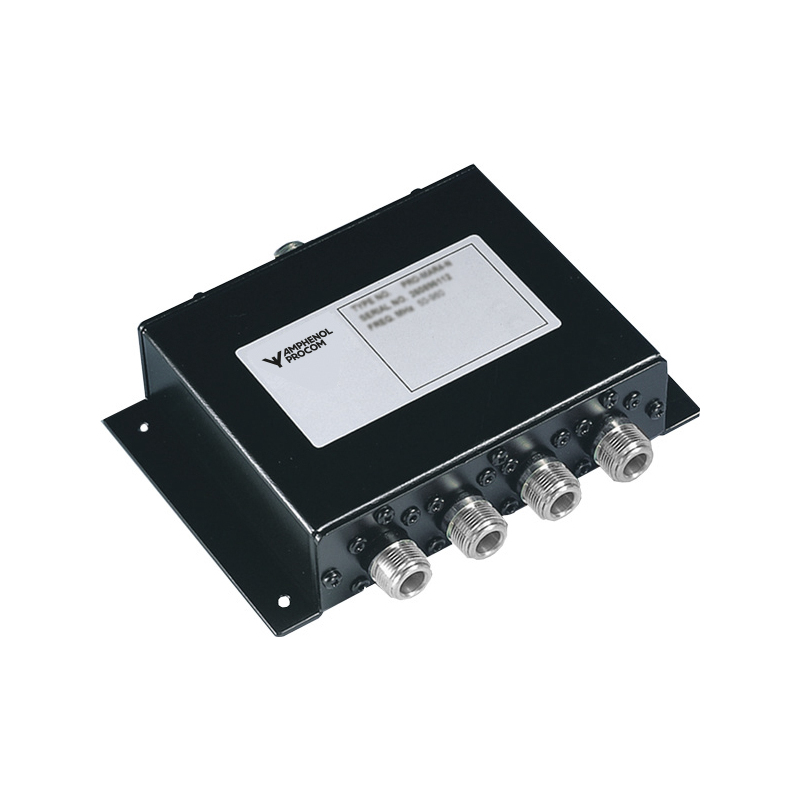

PRO-PDI4-40-800-6 dB-10W-N

Power Divider

Find Out More
Data Sheet
CE Certification

Other Files

PRO-PDI4-40-800-6 dB-10W-N
Electrical
Model PRO-PDI4-40-800-6 dB-10W-N
Frequency 40 – 800 MHz
Max. Input Power 10 W
Impedance 50 Ω
Nominal Divider Loss 6.1 dB
Totally Loss incl. nominal Loss ≤ 6.70 dB @ 40 MHz
≤ 9.50 dB @ 800 MHz
Isolation between outputs > 9 dB
Input VSWR < 2.0:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Procom
Dimensions 129 (incl. connectors) x 152 (incl. flanges) x 35 mm
Weight 0.36 kg / 0.79 lb.
  • 10 W equal power divider.
  • The divider covers the frequency range from 40 – 800 MHz.
  • Very little ripple on divider output over the entire frequency range.

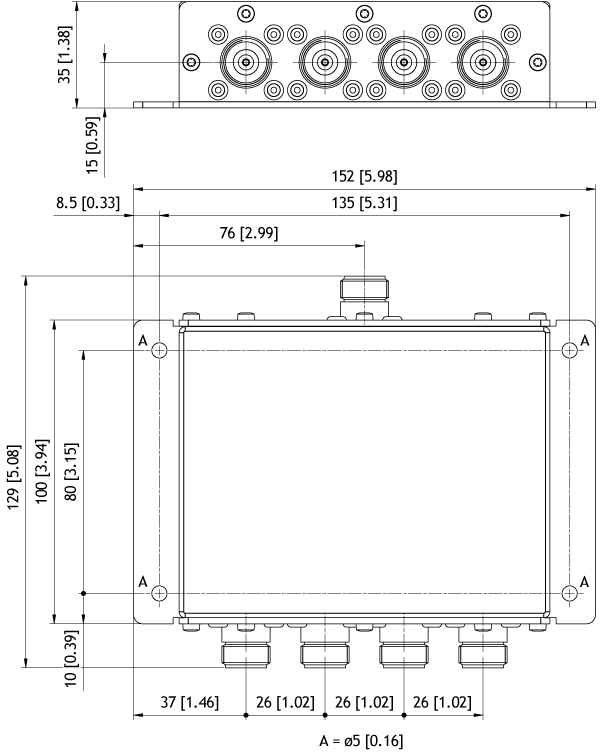

MOUNTING DETAILS (Dimensions excl. cover)

All dimensions are given in mm [in.]

All dimensions are given in mm [in.]

TYPICAL RESPONSE CURVE
