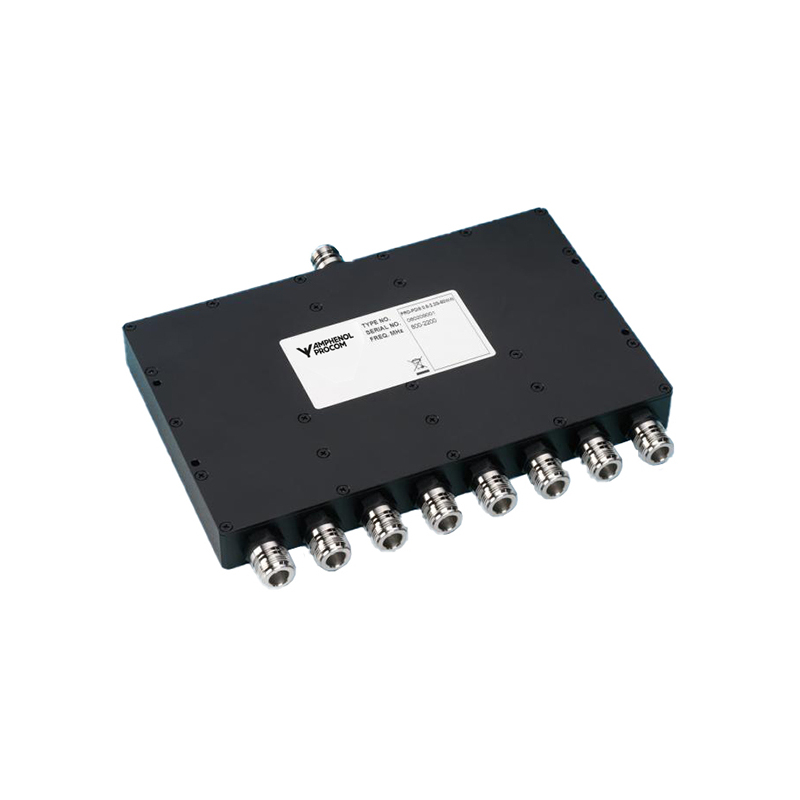

PRO-PDI8-0.8-2.2G-80W-N

Power Divider / Combiner 10 W (reverse)

Find Out More
Data Sheet
CE Certification

Other Files

PRO-PDI8-0.8-2.2G-80W-N
Electrical
Model PRO-PDI8-0.8-2.2G-80W-N
Frequency 800 – 2200 MHz
Max. Input Power 80 W (8 x 10 W)
Outputs 8
Impedance 50 Ω
Nominal Divider Loss 9 dB
Input VSWR < 1.2:1
Divider Output Equal
No. of channels 8
Environmental
Operating temperature range -35 °C to +50 °C
Mechanical
Compliance RoHS, IP66
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 175 x 210 x 24 mm /
6.89 x 8.27 x 0.94 in.
Weight Approx. 1.46 kg / 3.22 lb.
  • 10 W equal Power Divider/Combiner with broadband characteristic covering the cellular service bands.
  • 8-way equal power divider/combiner able to handle up till 10 W on each of its 8 divided/combined ports.
  • Very low VSWR, IL and excellent isolation over the entire frequency range and between ports.
  • Compliant with RoHS and IP66.

TYPICAL RESPONSE CURVE
