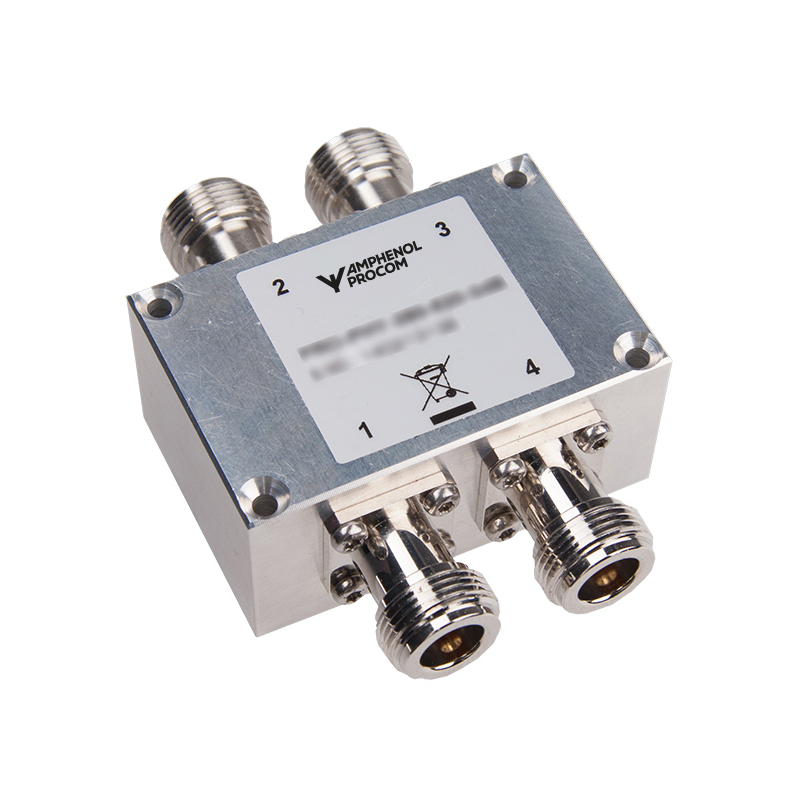

PRO-PHY 380-520-3 dB-N XS

Hybrid Coupler 100 W

Find Out More
Data Sheet
CE Certification

Other Files

PRO-PHY 380-520-3 dB-N XS
Electrical
Model PRO-PHY 380-520-3 dB-N XS
Frequency 380 – 520 MHz
Max. Input Power 50 W per port, when used as a combiner
100 W on one port, when used as a splitter
Insertion Loss < 3.3 ± 0.5 dB (Port 1 to 2 or port 1 to 3)
Impedance 50 Ω
Port-Port Isolation > 20 dB (Port 1 to 4 or port 2 to 3)
VSWR < 1.3:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Compliance RoHS, IP64
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 59 x 40 x 28 mm /
2.32 x 1.57 x 1.10 in.
Weight Approx. 0.18 kg / 0.40 lb.
  • 100 W Hybrid Coupler with 3 dB coupling covering the 380 – 520 MHz band.
  • Excellent high power performance.
  • If working as combiner max. input power 50 W per port into max. two ports of the four ports.
  • If working as splitter 100 W into max. one port.
  • Very low insertion loss over the entire frequency range.

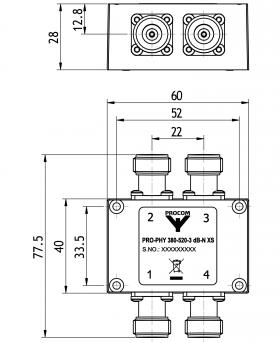

MOUNTING DETAILS
