PRO-PHY 380-520-3 dB-…

100 W 3 dB Coupler (90° Hybrid)

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-PHY 380-520-3 dB-...

Quickly identify the correct ordering code.

PRO-PHY 380-520-3 dB-…
Electrical
Model PRO-PHY 380-520-3 dB-…
Frequency 380 – 520 MHz
Max. Input Power 50 W per port, when used as a combiner
100 W on one port, when used as a splitter
Insertion Loss < 3.3 dB ±0.5 dB (Port 1 to 2 or 1 to 3)
Impedance 50 Ω
Port-Port Isolation > 20 dB (Port 1 to 4 or 2 to 3)
VSWR < 1.5:1
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP67
Mechanical
Compliance RoHS
Connection(s) N(f), 4.3/10(f) or 7/16 DIN(f)
Historic Brand Amphenol Procom
Dimensions 125.6 x 99.6 x 46.1 mm /
4.94 x 3.92 x 1.81 in.
(incl. connectors and flanges)
Weight Approx. 0.865 kg / 1.91 lb.
Mounting 5.2 mm / 0.205 in. dia. (4 holes)
  • Hybrid Coupler with 3 dB coupling covering the 380 – 520 MHz band.
  • Excellent high-power performance.
  • If working as combiner max. input power 50 W per port into max. two ports of the four ports.
  • If working as splitter 100 W into max. one port.
  • Very low insertion loss over the entire frequency range.
  • Available with N(f), 4.3/10(f) or 7/16-DIN(f) connectors.
  • 3 dB 90° Hybrid Couplers also known as quadrature hybrids are a passive four port device that can be used in many different modes depending on the application. It can be used as a splitter, combiner or injection of a signal into a signal path.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

PRO-PHY 380-520-3 dB-N(f)

 200002373 PRO-PHY 380-520-3 dB-N(f)

PRO-PHY 380-520-3 dB-4.3/10(f)

 200002766 PRO-PHY 380-520-3 dB-4.3/10(f)

PRO-PHY 380-520-3 dB-7/16(f)

 200002312 PRO-PHY 380-520-3 dB-7/16(f)

Login required

You need to be logged in into your account to view downloadable documents.

Block Diagram

2000x1078-0-0-280x151-pro-phy-diagrammer-1-NY GB

Different modes of the 3 dB Hybrid Coupler

Coupler splitter mode:
Divides the signal into two equal components with a 90˚; phase difference that can be used to split signals from tower top amplifiers to the base station receivers.

2000x1078-0-0-280x151-pro-phy-diagrammer-2-NY GB

Coupler combiner mode 1:
If the same signals is applied at the input ports with a 90˚; phase difference the signals adds up on one port.

2000x1078-0-0-280x151-pro-phy-diagrammer-3-NY GB

Coupler combiner mode 2:
Combining two non-coherent signals that are available at both ports.

2000x1078-0-0-280x151-pro-phy-diagrammer-4-NY GB

Common applications of 3 dB 90° Hybrid Couplers
  • Combining two transmitters with very narrow spacing to one common antenna or to a DAS network.
  • Combining two carrier inputs to one or two antennas or leaky feeder/radiating cables.
  • Splitting signals from tower mounted amplifiers to base station receivers.

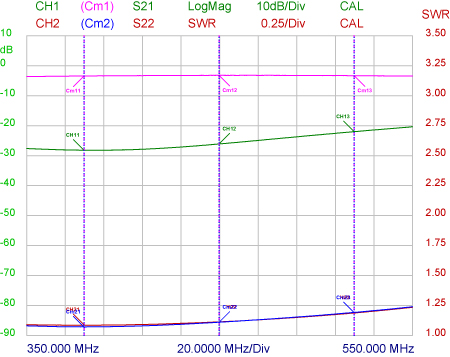

Typical coupling, isolation and VSWR curves

PRO-PHY-380-520-3-kurve

Mounting Details

PRO PHY xxx xxx 3dB xxx N Holeplacing

All dimensions are given in mm [in.]
